SPECIFICATIONS
Test Point: AC Single Phase or 3-Phase : 0 - 1000VAC @ 50/60/400Hz
AC Operational
Voltage Range
Voltage Indicator: AC Single Phase or 3-Phase : 20 - 1000V, 50/60/400 Hz
DC Voltage or
Test Point: 0 - 1000VDC any (2) wires
Stored Energy
Voltage Indicator: 20 - 1000V, (Voltages Line-to-Line or Line-to-Ground)
Range
Maximum Voltage
1000VAC or 1000VDC
Test Point: 3.3 Watts @ 1000V (approx.) with fault load of any (2) corresponding test points
Maximum Power
shorted indefinitely
Consumption
Voltage Indicator: 1.1 Watts
Temperatures
Operate: -40ºC to +75ºC Storage: -45ºC to +85ºC
Maximum single component failure fault current at 1000VAC or 1000VDC
Failure Current
Test Point: 3.3mA with a momentary short between any (2) test points
Voltage Indicator: 1.5mA with any (1) line input series power resistor shorted
Internal
Test Point: (3) 51K 1W 1% Tolerance series resistors encapsulated between each input wire and
Resistance
respective test point (306KΩ 6W equivalent between any two test points)
Output Accuracy
-3.2% of applied voltage with 10MΩ input impedance voltmeter connected to any (2) test points
4-Wire: (4) Wires, 8 ft, 14 AWG, 90°C @ 1000V, UL-1452, PVC Insulated w/ Nylon Jacket
Terminations
3-Wire: (3) Wires, 8 ft, 14 AWG, 90°C @ 1000V, UL-1452, PVC Insulated w/ Nylon Jacket
Voltage Category
CAT III @ 1000VAC Max, Pollution Degree 3, CAT IV @ 600VAC Max, Pollution Degree 3
Ratings
Housing
UL Approved material, totally encapsulated including LEDs for environmental protection
R-3MT-VI: (6) Red {L1, L2, L3} and (2) Yellow {GND}, Super Bright LEDs
Indicators
R-3MT-VI-AC3: (4) Red {L1,N} and (2) Yellow {GND}, Super Bright LEDs
Note: All above ratings are LINE-TO-LINE or LINE-TO-GND at an ambient temperature of 21°C where applicable.
ChekVolt
is a combination device used to verify the voltage
®
presence using visual indication and absence through a
metered test.
L2
L3
L1
NOTE: (4) Test point jacks accept .080" DIA. probe points.
THREE PHASE DELTA, 3W + GND
UL Type 4, 4X,
MEASURING EQ.
12, 13,
E311256
IP2X, IP66, IP69,
IP69K

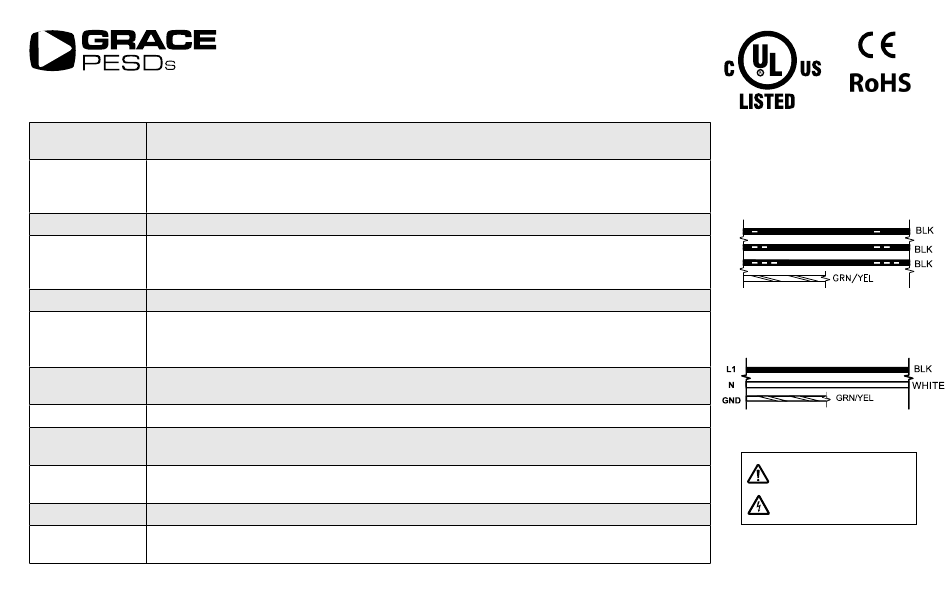

R-3MT-VI WIRE
WIRE IDENTIFICATION
IDENTIFICATION
L1
L2
L3
GND
R-3MT-VI-AC3 WIRE
IDENTIFICATION
Caution
Caution, possibility of
electrical shock
