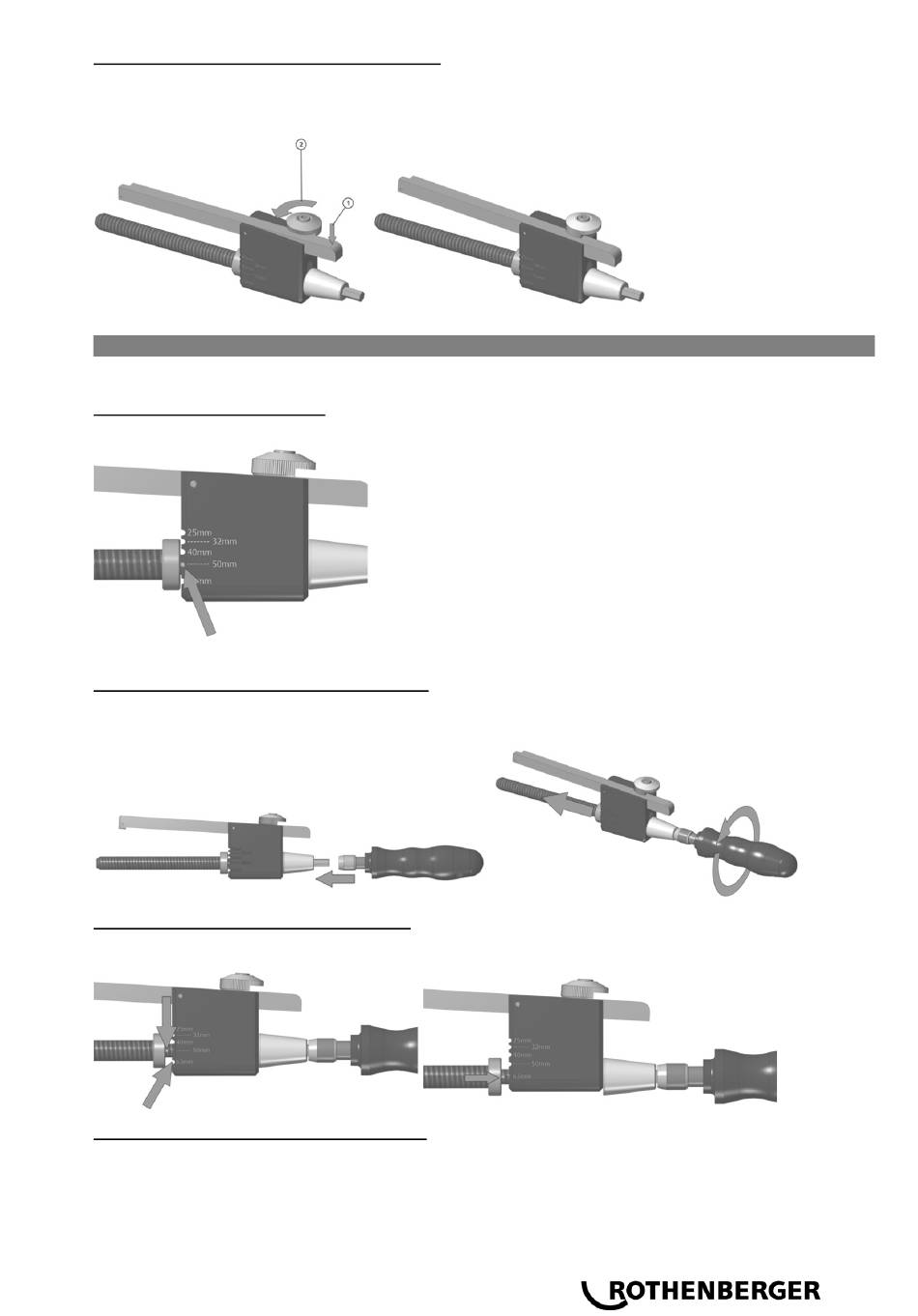

Bring the peeling arm in the upper position:
 Should the scraper arm not be in the upper position it must be brought up. Press on the
short end of the scraper arm and turn the knurled locking disc, so that it holds the scraper
arm in its upper position.
4.2

Preparation and adjustment

The Pipe End Peeler must be adjusted to the pipe dimension prior to use.
Checking the current setting:
 Check if the current setting is the correct one for the pipe resp. fitting to be scraped.
If the current setting is not correct, it must be adjusted.
Adjusting the setting: Loosen the Spindle:
 Install the handle on the bit and turn it counterclockwise to loosen the spindle and to change
the adjustment.
Adjusting the setting: Move the spindle:
 Move the spindle to the correct dimensional setting.
Adjusting the setting: Tighten the spindle:
 Move the stud to the recess and screw the spindle tight again.
