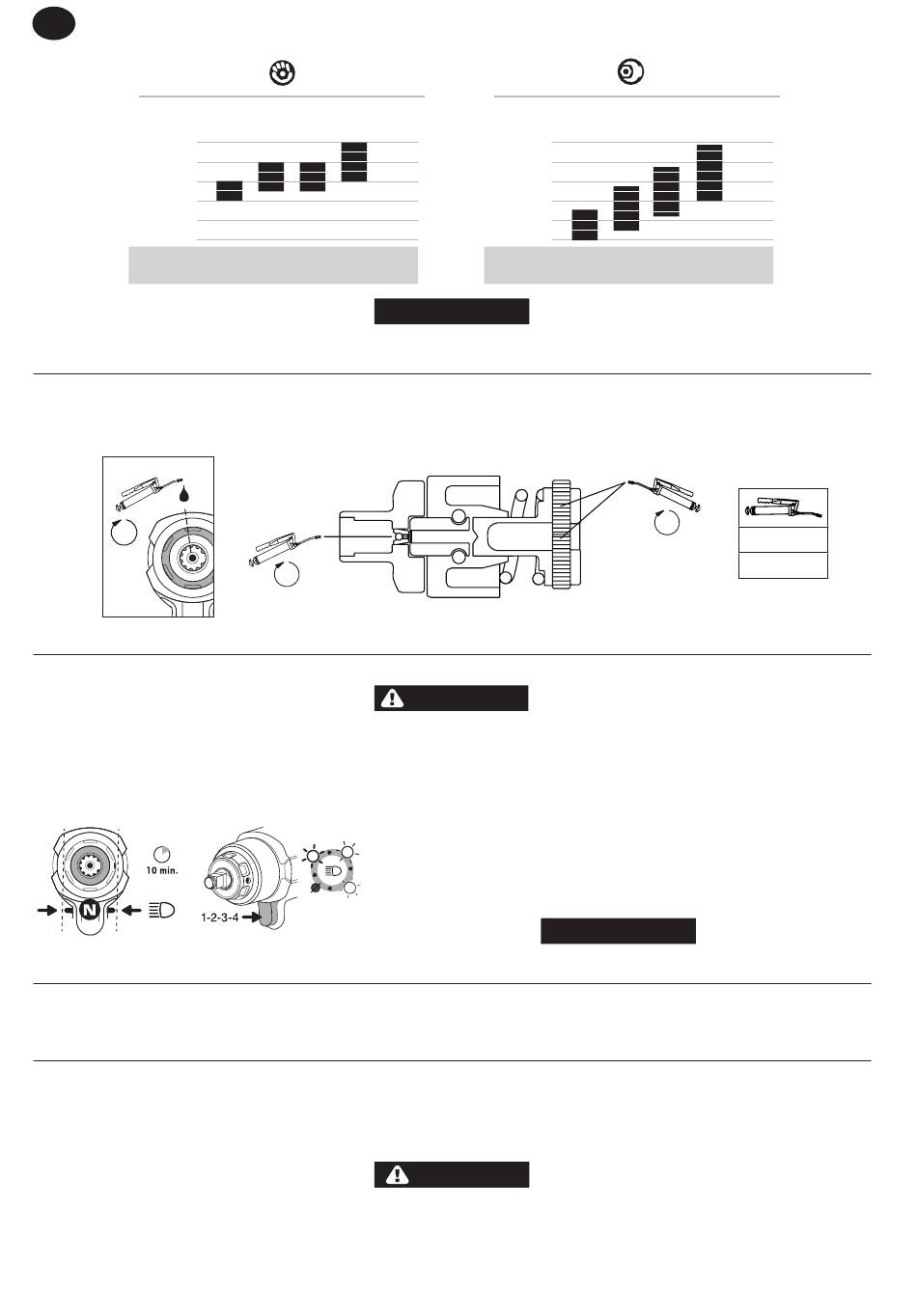

Forward Torque
ft-lb (Nm)
10 (14)
8 (11)
6 (8)
4 (5)
2 (3)
0
Torque values shown in Figures A and B are approximate. Actual torque can be effected by the application and may vary from the values
shown in the graph.
Lubrication
Remove Hammer Case to apply lubrication on the gears. Apply grease evenly and sparingly. An excessive accumulation of grease will result in sluggish
operation. See drawing TL-W7153-PIM-2 and table below. Maintenance frequency is shown in a circular arrow and defined as h=hours, d=days, and
m=months of actual use.
8h
(Dwg. TL-W7153-PIM-2)
Task Light
• Task light is not user serviceable. Repair should only be carried out by an Ingersoll Rand Authorized Service Center. User service may
result in electric shock, fire and or serious personal Injury.
• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Task Light
Mode
(Dwg. TL-W7153-PIM-3_EN)
Parts and Maintenance
Tool repair and maintenance should only be carried out by an Authorized Service Center.
Refer all communications to the nearest Ingersoll Rand Office or Distributor.
Product Information: Battery
Product Safety Information
Intended Use:
These batteries are used as the power source for Ingersoll Rand Cordless Products.
⚠
WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
• Save all warnings and instructions for future reference.
• Responsibly recycle or dispose of batteries. Do not puncture or burn batteries. Improper disposal may endanger the environment or cause
personal injury.
EN-2
Figure A
Hand-tight
M6
M8
M10
M12
Bolt Size
8h
Adjust Brightness and Flashlight Mode
1. To set task light, position directional switch to Neutral.
2. Pull trigger to cycle through brightness options or to turn OFF light.
3. Position directional switch to Forward or Reverse to save desired brightness setting
FWD/REV
Press to Save
Figure B
Forward Torque
ft-lb (Nm)
110 (150)
95 (129)
80 (108)
65 (88)
50 (68)
35 (50)
NOTICE
CAUTION
and begin tool use.
While in Neutral, tool will remain in task light mode for 10 minutes.
WARNING
Wrench-tight
M10
M12
M14
M16
Bolt Size
8h
NOTICE
IR #
105
TL-W7153-LIK_ed2
