4.3.
Electrical connections of the electrolysis cell

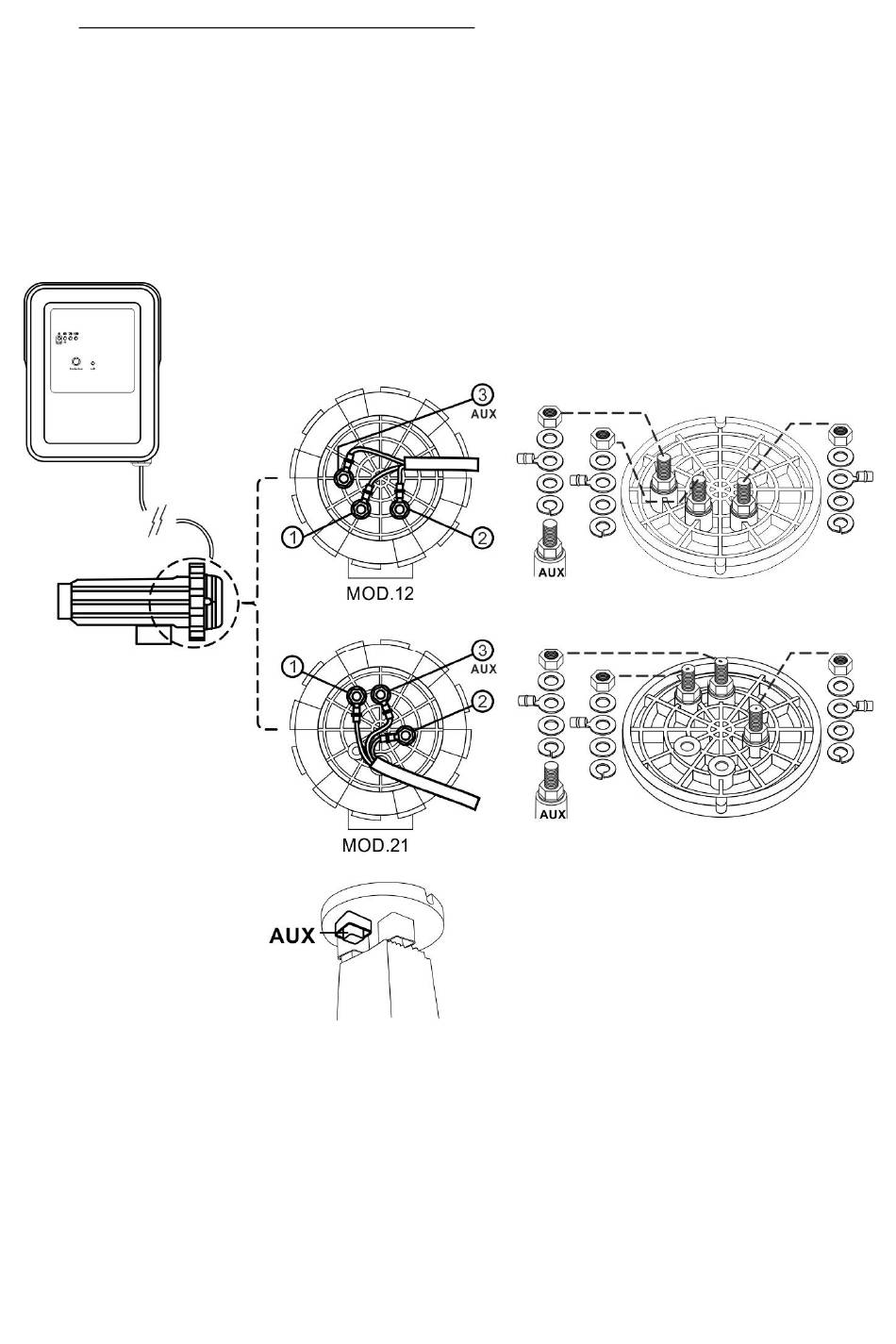

Make the interconnection between the electrolysis cell and the power supply according to the
following scheme. Due to relatively high current intensity circulating do not modify or cut either the
length or section of the supplied cables without making a previous consultation to an authorized
distributor. The cable connecting the electrolysis cell and the power supply should never exceed
the maximum length recommended in this Manual: MOD.12 (6 A), 8 m.; MOD.21 (3.5 A), 30 m.
1.- Electrode 1 (Red)
2.- Electrode 2 (Red)
3.- Flow detector (Yellow)
Fig.9
6
