2. Introduction

Thank you for having chosen a FUTURELIGHT GENESIS 575 HMI. You acquired a versatile, powerful and
intelligent light effect.
Unpack your FUTURELIGHT GENESIS 575 HMI and make sure that there are no damages caused by
transportation. Should there be any, please consult your local dealer and do not take the device into
operation.

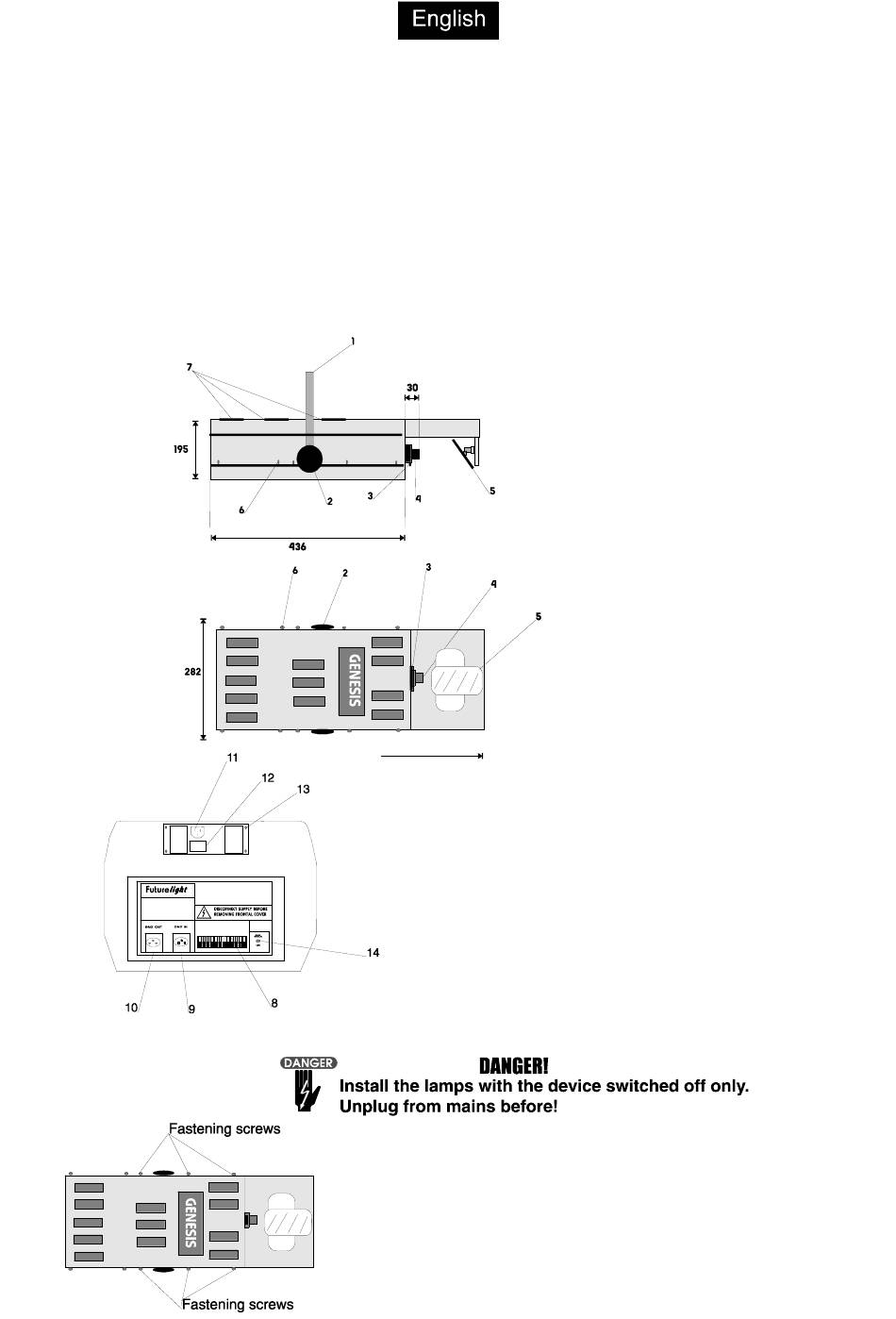

2.1 Measurements and description of components

2. 2 Fitting the lamp

(1) Bracket
(2) Bracket screws
(3) Fixing screw for the objective
(4) Objective
(5) Mirror
(6) Fastening screws
(7) Cooling fan
(8) DIP switches for projector selection
(9) DMX Input
(10) DMX Output
(11) Power cord
(12) Fuseholder
(13) Earthing screw
(14) DMX Control lamp
To insert the lamp (HMI 575 socket double-sided) open the
housing by loosening the fastening screws (6) at the side panels.
