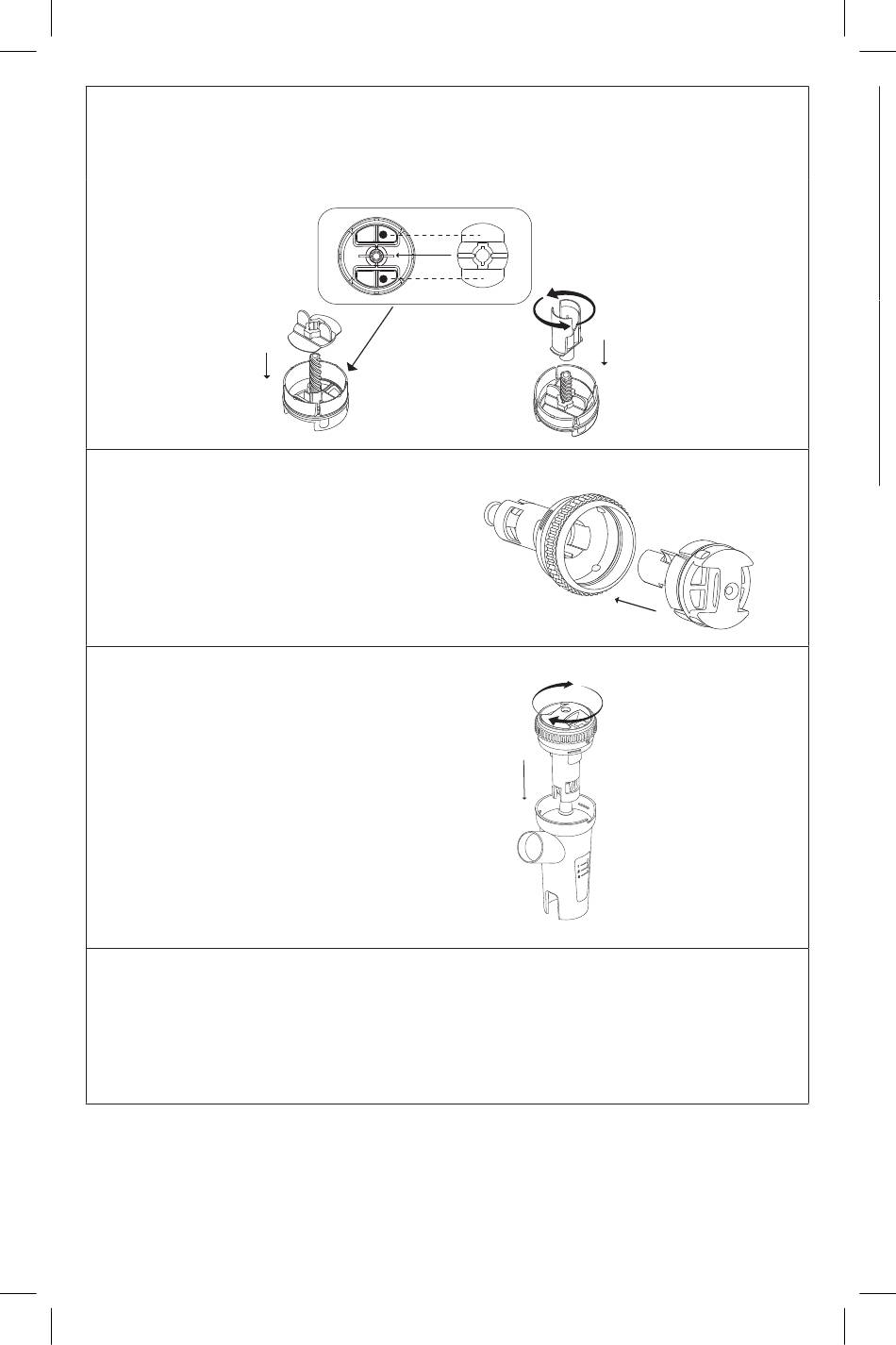

2. Place the valve (B2.4b) with the flat side down onto the particle size regulator (B2.4a) by aligning
the hole with the position ribs, then screw the selector (B2.4c) onto the threaded pin of the regula-
tor all the way down. Rotate the assembled regulator to make sure that it turns freely and that the
selector moves up and down between positions.
B2.4b
B2.4a
3. Insert and press the previously assembled
particle size regulator (B2.4) all the way down,
keeping it in a horizontal position, in the upper
part (B2.3), and matching the partitions of the
selector (B2.4c) with the groove in the upper
part (B2.3).
4. Insert the assembled upper part (B2.4 + B2.3
+ B2.2) into the lower part (B2.1) and hook it by
turning it clockwise.
HOW TO USE THE RF9 NEBULISER WITH PARTICLE SIZE REGULATOR AND VALVE SYSTEM
It is professional, quick, recommended for administering all types of medicinal products, even in pa-
tients with chronic diseases. The valve system optimises the dispensing of the nebulised medicinal
product to the patient and limits its dispersion in the environment. Moreover, thanks to the particle
size regulator, the size of nebulised particles can be selected based on the respiratory system area
where the medication is to be delivered. Indeed, with the 4 available modes, the bowl can dispense
particles of different sizes.
B2.3
b
a
10
B2.4c
+
B2.4a
B2.4b
B2.4c
B2.4
B2.4+B2.3+B2.2
B2.1
