B
1. Preparation
Install the water supplies and drain piping according to the
roughing-in information.
Determine the desired location for the sink.
Draw the cutout line based on the measurements provided in the
Cutout Information tables.
Provide adequate clearance between the sink and backsplash.
Verify your measurements.

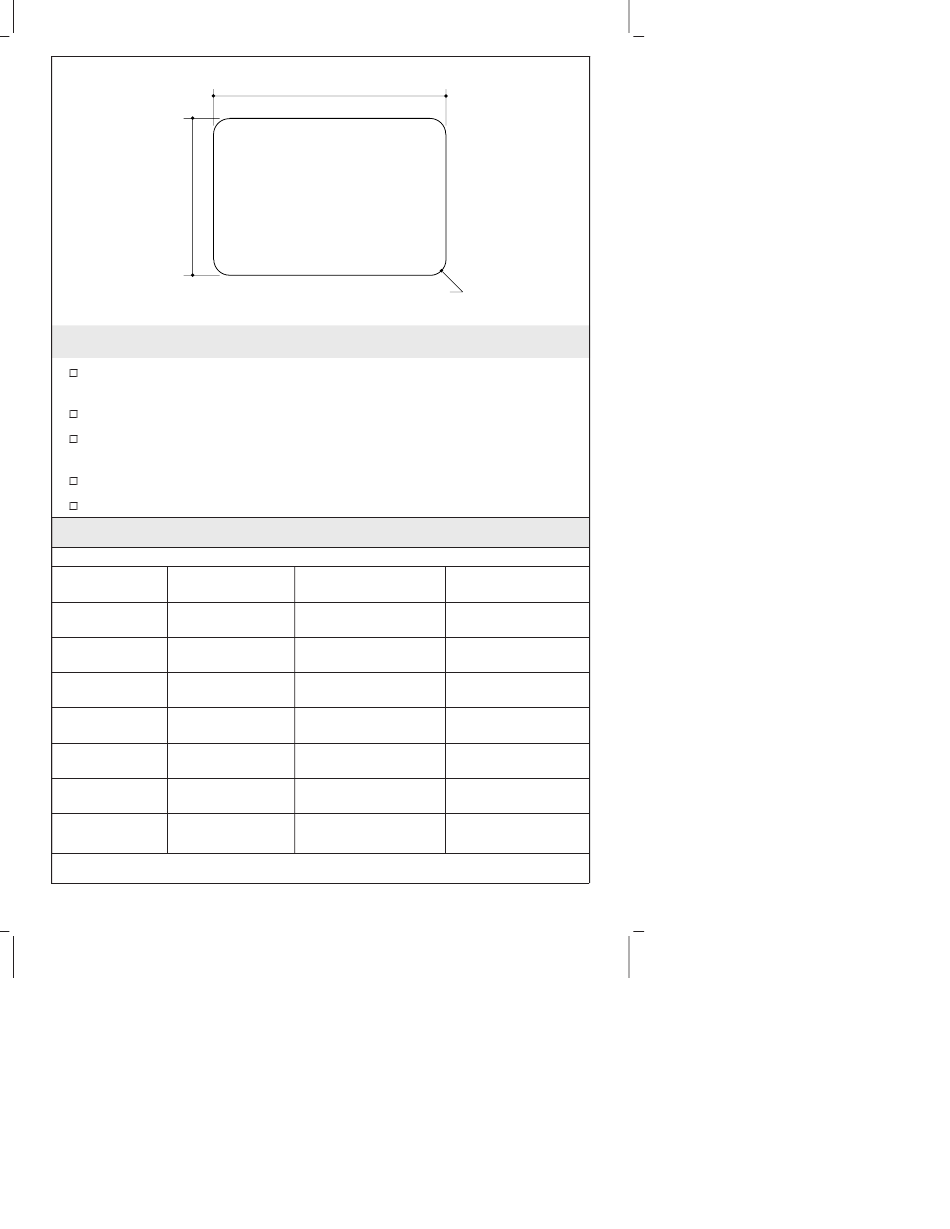

Cutout Information
Kitchen Sinks
Model Sink
Number Dimensions
K-5802 25" (63.5 cm) x
22" (55.9 cm)
K-5805 33" (83.8 cm) x
22" (55.9 cm)
K-5809 33" (83.8 cm) x
22" (55.9 cm)
K-5813 33" (83.8 cm) x
22" (55.9 cm)
K-5815 33" (83.8 cm) x
22" (55.9 cm)
K-5823 33" (83.8 cm) x
22" (55.9 cm)
K-5832 31" (78.7 cm) x
22" (55.9 cm)
1053525-2-A
A
R
Cutout Dimensions
Cutout (A x B)
23-3/4" (60.3 cm) x
20-3/4" (52.7 cm)
31-3/4" (80.6 cm) x
20-3/4" (52.7 cm)
31-7/8" (81 cm) x
20-3/4" (52.7 cm)
31-7/8" (81 cm) x
20-3/4" (52.7 cm)
31-7/8" (81 cm) x
20-3/4" (52.7 cm)
31-3/4" (80.6 cm) x
20-3/4" (52.7 cm)
29-3/4" (75.6 cm) x
20-3/4" (52.7 cm)
4
Radius (R.)
1" (2.5 cm)
1" (2.5 cm)
1-1/2" (3.8 cm)
1-1/2" (3.8 cm)
1-1/2" (3.8 cm)
1" (2.5 cm)
1" (2.5 cm)
Kohler Co.
