Mounting informations
Mount the drives mechanical
stress-free.
With that, more even load
distribution is ensured on all the
drive chains.

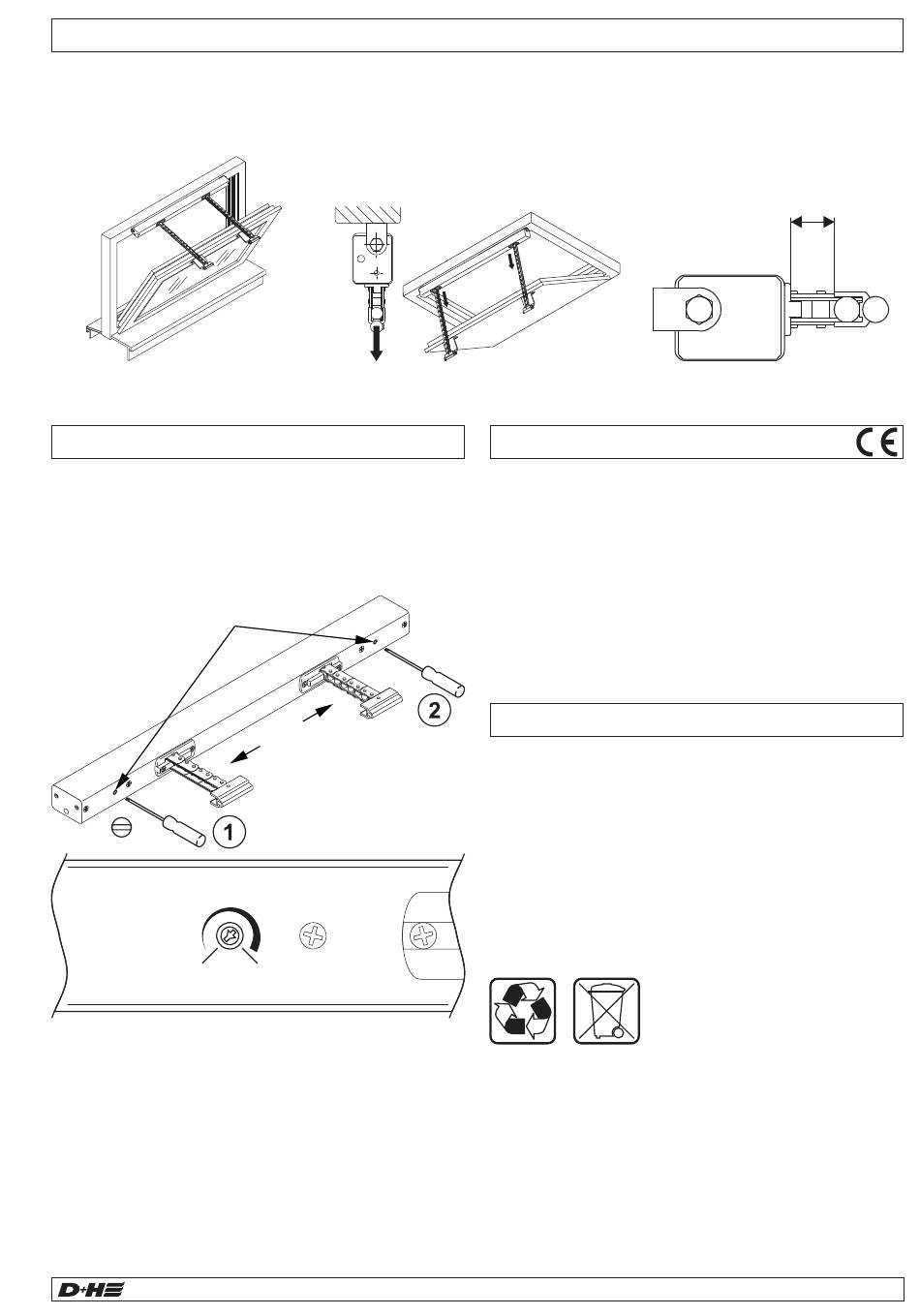

Locking force adjustment
If factory-set locking pressure of approx. 150 N is not
sufficient to close the window, it can be infinitely
increased up to approx. 250 N.
Put in covering stopper after adjustment.
Locking force adjustment
Ø 6 mm
approx. 150 N
99.823.95 2.6/09/18
At vertical active pulling
application (e.g. for a skylight)
the forces must be rearranged
by software SCS
=
approx. 250 N
Declaration of Conformity
We declare under our sole responsibility that the
product described under "Technical Data" is in
conformity with the following directives:
2014/30/EU, 2014/35/EU
Technical file at:
D+H Mechatronic AG, D-22949 Ammersbek
Dirk Dingfelder
Member of the Board
31.03.2016
Disposal
Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
English
If after mounting, the measure X
is as bigger as 23 mm, null
balance with software SCS is
neccesary.
Closure Ranges will shift in
relation to new zero point.
≥ 23 mm ? X
