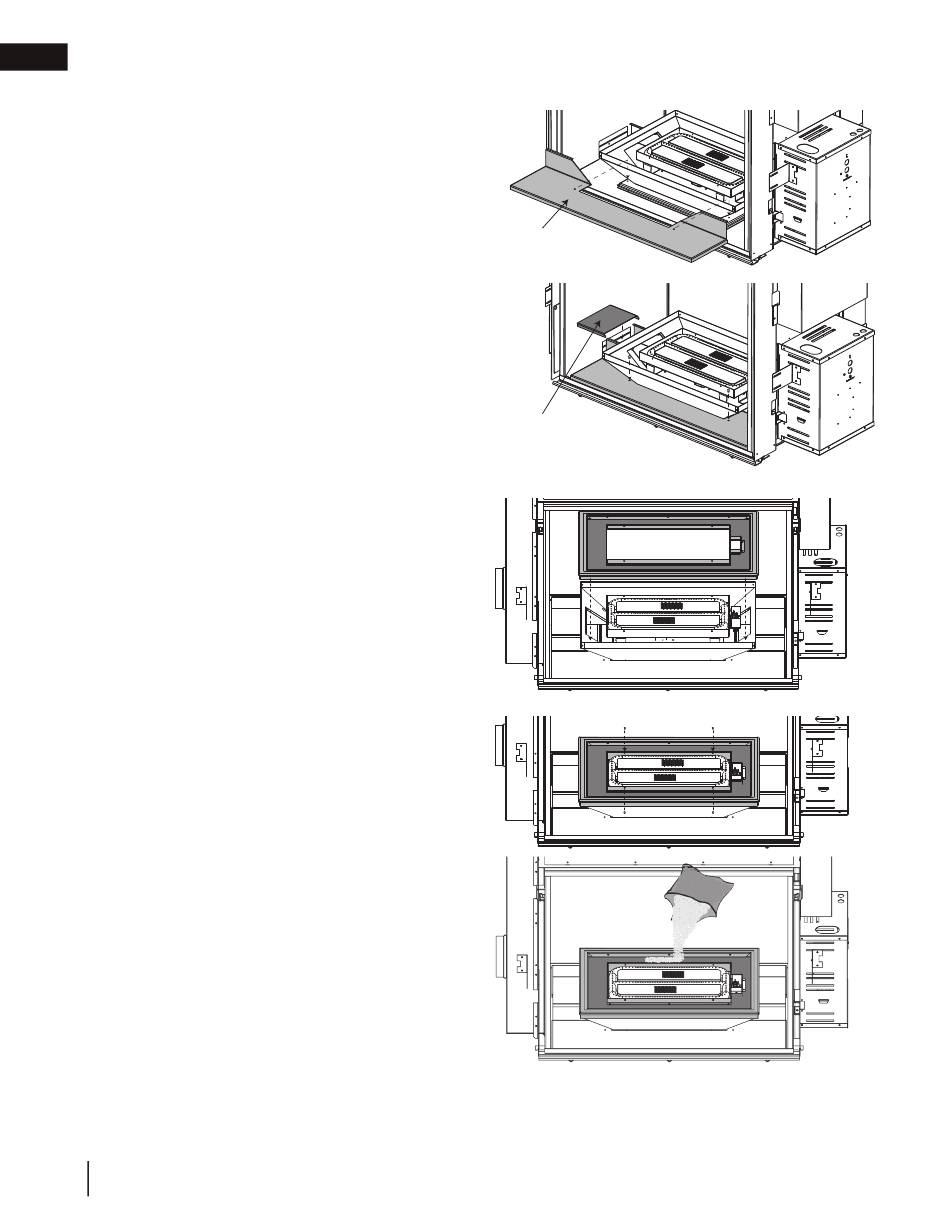

porcelain base installation
INSTALL IN THE FOLLOWING ORDER:
A.
Side porcelain panels or brick panels must be
installed prior to porcelain base cover plates.
For side porcelain panel installation and for
brick panel installation, see leafl ets provided
with kits.
B.
Slide the porcelain cover plates through the
front opening being careful not to scratch the
porcelain panels. The cover plates must slide
under the burner cover as shown. Secure to
the burner base with the screws provided and
repeat on other side. Porcelain wire shields sit
on the cover plates as illustrated.
2.6
burner cover installation
A.
Lower the burner cover down onto the
burner tray and porcelain base, making
sure the pilot is properly seated through
the slot on the right side.
B.
Attach burner cover with four screws as
illustrated.
C.
Empty the sand into the burner tray.
Spread the sand evenly over the burner
tray.
4
W415-2749 / 11.01.19
PORCELAIN
COVER PLATE
PORCELAIN
WIRE SHIELD
