Diamond AD1B/H-R2 Manuel D'installation page 106

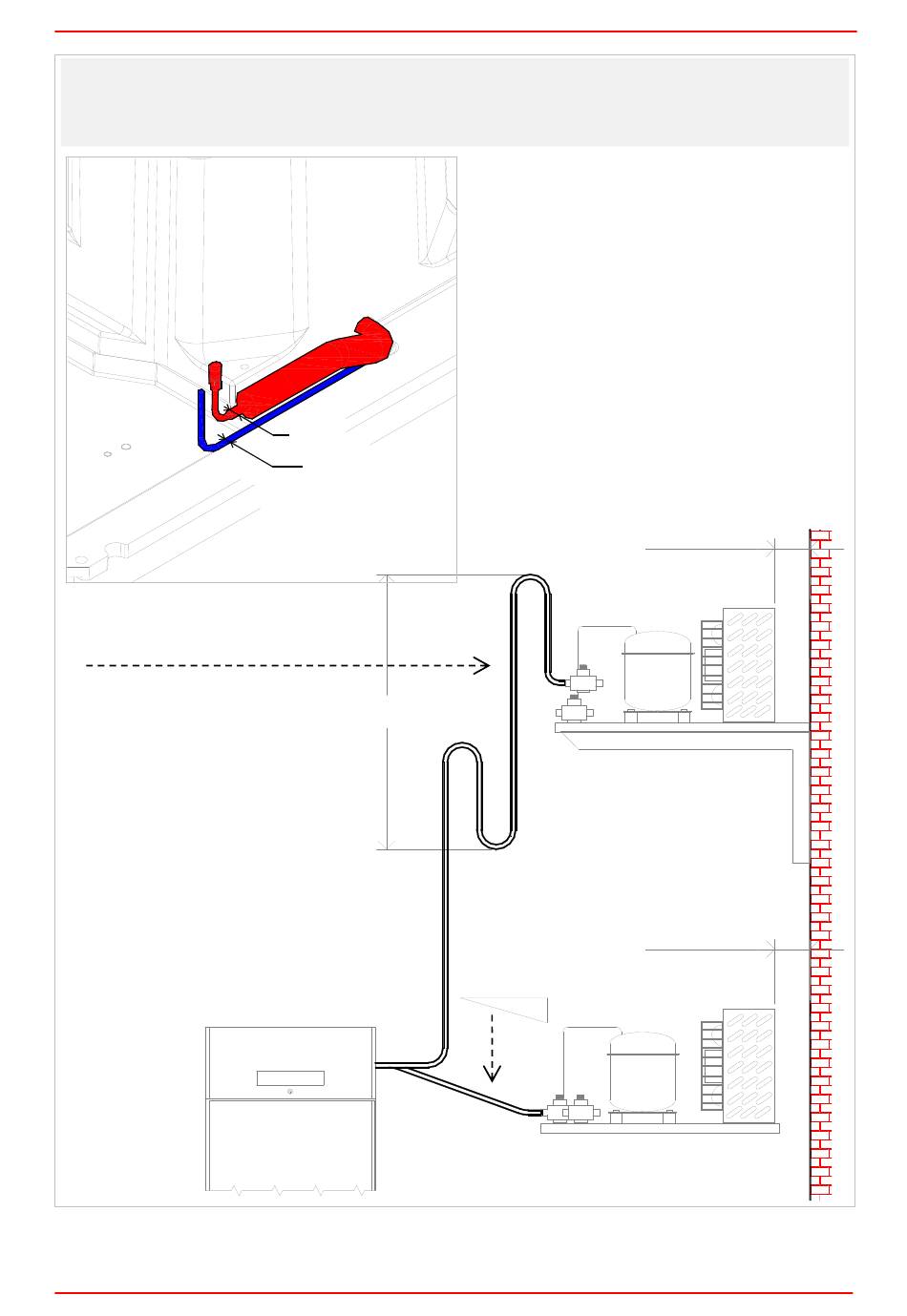

SCHEMA DU CYCLE DE REFRIGERATION - ARMOIRES REFRIGEREES SANS COMPRESSEUR
REFRIGERATING CYCLE DIAGRAM FOR REMOTE REFRIGERATING COUNTERS
CIRCUITO FRIGORIFERO PER ARMADI REFRIGERATI PREDISPOSTI
KÜHLSCHEMA FÜR KÜHLSCHRÄNKE OHNE AGGREGAT
LINEA ASPIRAZIONE
SUCTION LINE
TUBE ASPIRATION
BSAUGSROHR
ø10
ø6
~ 2 mt
> 2%...3%
III
> 0.5 mt
> 0.5 mt
