8. Technical data
To start the tool, just pull the trigger on the switch. The tool speed increases with increasing the pressure on the switch trigger
Release the trigger of the stop switch. For uninterrupted operation, pull the trigger on the switch, press the lock button, and then
release the trigger of the switch. To stop the tool from the locked position, pull the trigger on the switch completely, then release it.
ATTENTION: Always clean all chips or foreign bodies that are attached to the blade and / or the blade holder. Failure to comply
with this requirement may result in insufficient blade clamping, resulting in serious injuries.
CAUTION: Do not touch the tool or workpiece blades immediately after work. They can be extremely hot and burn your skin.
WARNING: Always fix the hard disk drive. Insufficient tightening of the blade may result in breakage of the blade or serious
bodily injury.
WARNING: Use Raider blades for a "T" shank saw. Use of blades other than this type causes insufficient blade clamping,
resulting in serious injuries.Information about radiated noise and vibrations.
Information about radiated noise and vibrations.
The values are measured according to EN 60745. The noise level A is usually: sound pressure level LpA 85 dB (A); sound
power LwA 96 dB (A). Uncertainty K = 3 dB. Work with silencers! The full vibration value (the vector sum in the three directions) is
determined according to EN 60745: Cutting of wood: generated vibrations ah = 6.60 m / s2, uncertainty K = 1.5 m / s2, Cutting of
metal: / s2, uncertainty K = 1,5 m / s2. The specified vibration level is representative of the most common power tool applications.
However, if the punch is used for other activities, with other work tools or if it is not maintained as prescribed, the level of vibration
generated may change. This could significantly increase the cumulative vibration load in the process.
9. Installing the cutting knife.

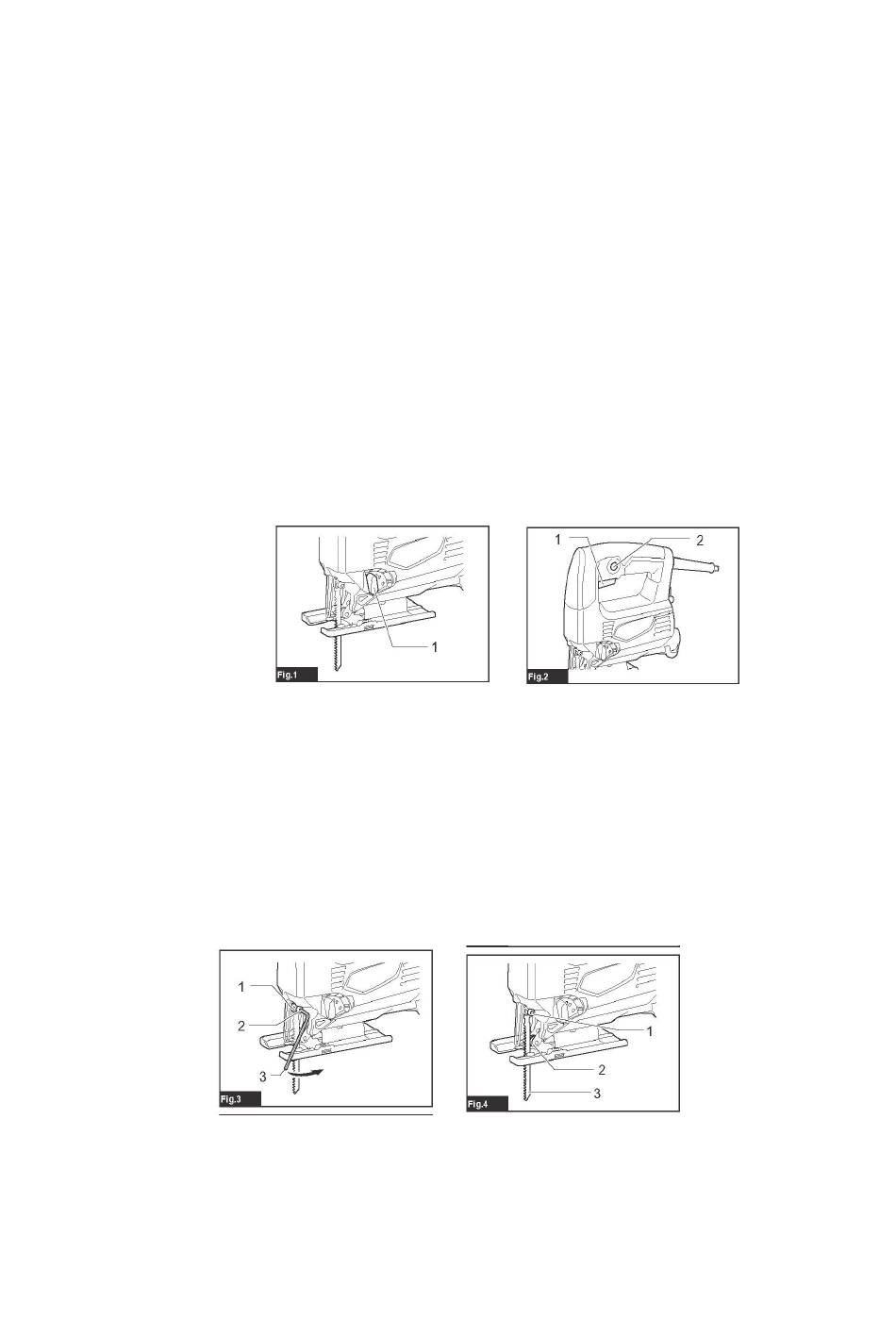

► Fig.1: 1. Cutting lever
► Fig..2:
1. On / Off button
2.Block locking / locking button
To start, just press the power button
the speed is increased by increasing the pressure on the circuit breaker. Release the stop switch.
For long-term operation, press the switch, press the locking button, and then release the breaker. To stop the tool from the
locked position, push the switch all the way, then release it.
This tool can be used with an orbital or straight line (up and down)
Orbital cutting - the pressure is on the knife
To change the cutting, turn the lever to the desired position and select the appropriate cut according to the table.
Table 1
Insert the knife by loosening the bolt of the holder counterclockwise with hexagon.
► Fig.3
1. Knife holder 2. Bolt 3. Hexagon key With the blade of the knife facing forward, place it in the cutting disc holder as far as
possible. Make sure the back edge of the blade matches the roller. Then tighten the bolt clockwise to ensure that the blade holds
firmly.
► Fig.4:
1. Bolt
2. Roller
3. Cutting blade blade To remove the blade, follow the assembly procedure back.
NOTE: Lubricate the roller with grease from time to time.
