FOREWORD
The Delta Model 22-590 is a 13" (330 mm) Portable Planer that has a cutting capacity of 13" (330mm) wide, 6" (152mm) thick and
1/8" (3.2 mm) deep. This machine has a powerful 15 amp 120 volt motor with a three-knife cutterhead.
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations contained in the manual
are representative only and may not depict the actual labeling or accessories included. These are intended to illustrate technique
only.
1

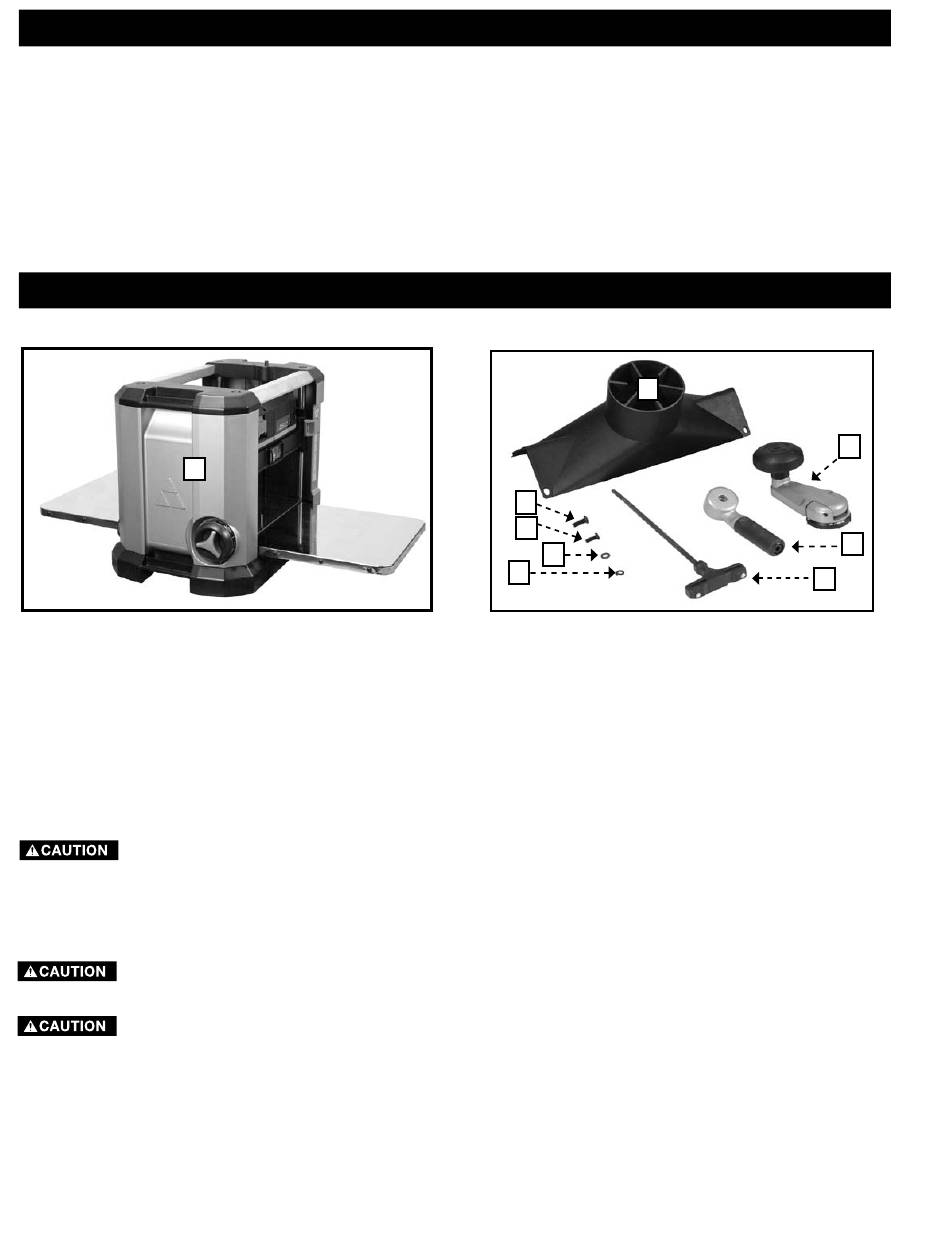

1. Planer
2. Dust Collection Attachment
3. Cutterhead Adjusting Handle
4. Cutterhead Lock Handle
5. Cutterhead Wrench and Handle Combination

UNPACkINg AND CLEANINg

This machine weighs about 75 pounds. Use a helper to lift or move it.
Carefully unpack the machine and all loose items from the shipping container. Peel protective film from the table surface. Figures
E and F illustrate the planer and all loose items supplied with your machine. Refer to the section of this manual entitled
"REPLACINg kNIVES" to remove the cutterhead guard. Remove the rust-preventative oil from unpainted surfaces using a soft
cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your machine.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
Take care when you clean the cutterhead. The knives in the cutterhead are very sharp. After cleaning the cutterhead,
replace the cutterhead guard.

FUNCTIONAL DESCRIPTION

CARTON CONTENTS

6
7
8
9
6. M6-20 mm Star Socket Head Screw
7. M5-16 mm Star Socket Head Screw
8. 5mm Washer
9. 6mm washer
6
2
5
3
4
