WARNING
Disconnect the electrical supply before servicing or cleaning the unit.
Failure to do so could result in electrical shock or personal injury from
cleaner suddenly starting.
Two Latches
Dos pestillos
Deux taquets
Lower Plate
Base inferior
Plaque inférieure
Electrical Shock or Personal Injury Hazard

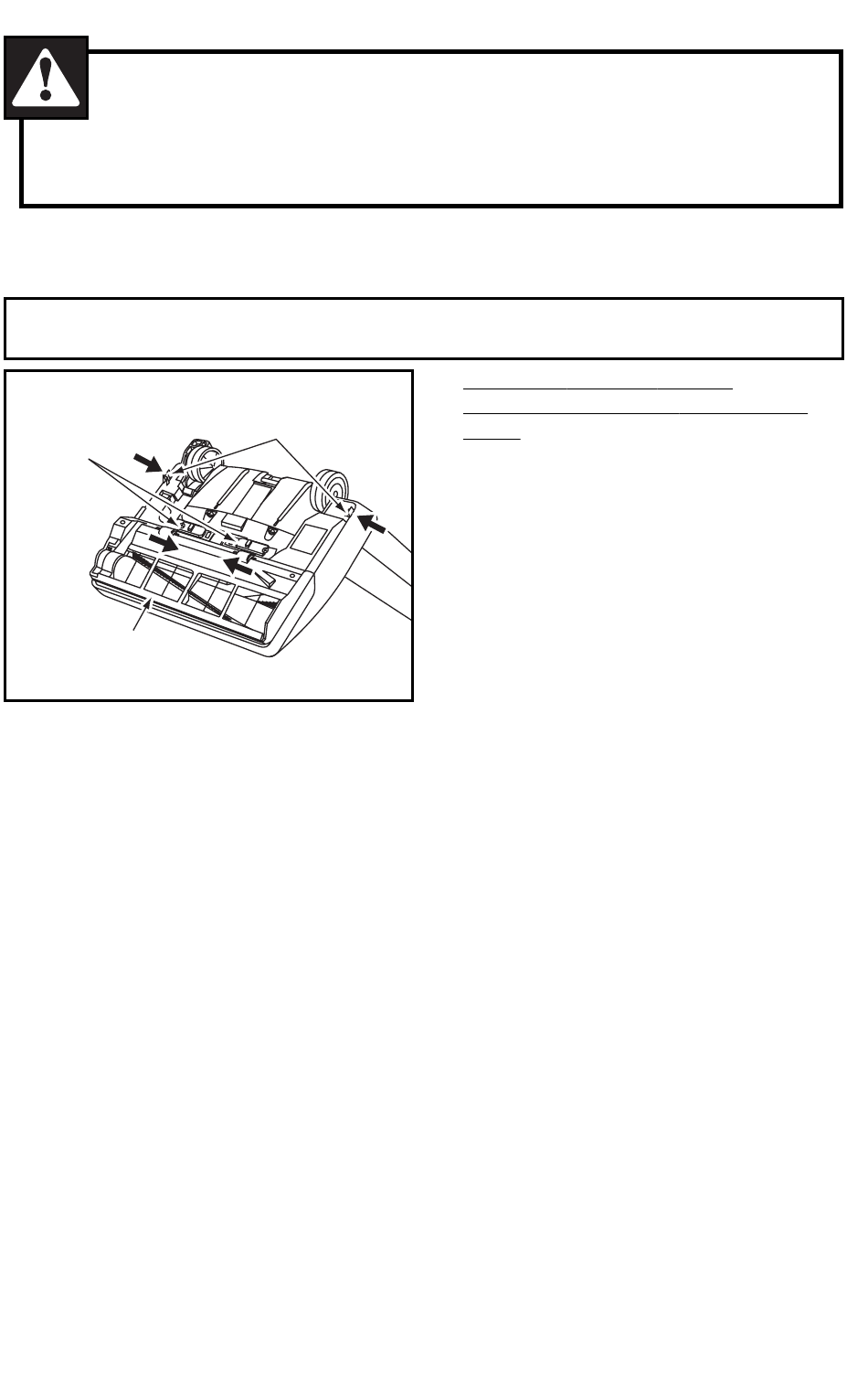

Removing and Installing Lower Plate
Two Locking Tabs
Dos lengüetas de cierre
Deux loquets de sûreté
➢ ➢ Before servicing any parts,
disconnect vacuum from electrical
outlet
➢ ➢ Always place paper under nozzle
whenever lower plate is removed to
protect floor
➢ ➢ Place handle in upright position and
turn vacuum over to expose lower
plate.
➢ ➢ Release lower plate by pressing two
(2) latches and two (2) locking tabs
inward as shown.
➢ ➢ Remove lower plate and remove any
residue that may exist in belt area.
➢ ➢ Reinstall lower plate by hooking front
end of lower plate into slots on front
of nozzle housing.
➢ ➢ Make sure all wires are routed
properly and not pinched.
➢ ➢ Press lower plate until locking tabs
snap into place then push two (2)
latches outward.
- 26 -
