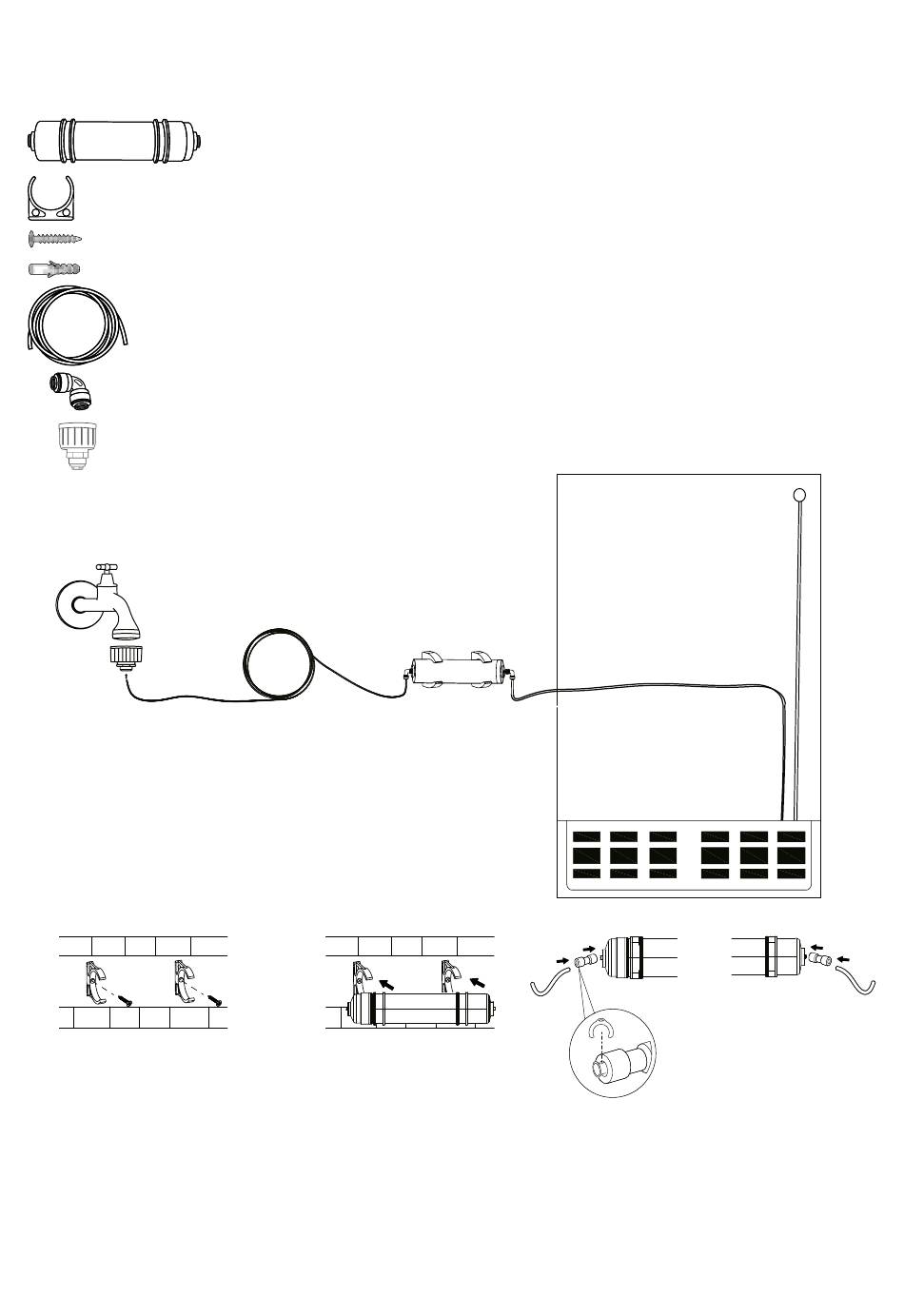

CONNECTING THE ICE AND WATER DISPENSER TO THE WATER MAINS
At the back of the refrigerator, there are connections for connecting the ice and water dispenser to the water mains. Shut off
the water mains before you start connecting the appliance to the water mains.
The following components are included in the delivery:
D
A First mount the water filter to the wall using the supplied wall supports. Follow step 1 to 3.
1
B Then, at the rear of the appliance, connect the white hose to the water filter using a coupling.
If the white hose is too short, it can be extended with the blue hose, after which the blue hose is connected to the water
filter by means of a coupling.
C Attach the white hose to the other side of the water filter using a coupling.
D Attach the end of the white hose to the connection on the water mains. It is important that the connection fits properly
on the water mains. If necessary, mount an additional coupling (not included in the delivery) to make sure the connection
properly fits on the water mains.
Reactivate the water mains and open the tap. The appliance is now ready to dispense water and ice.
30
• English
1 x water filter
2 x wall support
2 x screw
2 x plug
2 x hose (1 x white and 1 x blue)
2 x coupling
1 x connection to water mains
C
2
A
B
3
lock ring
