ASSEMBLY INSTRUCTIONS

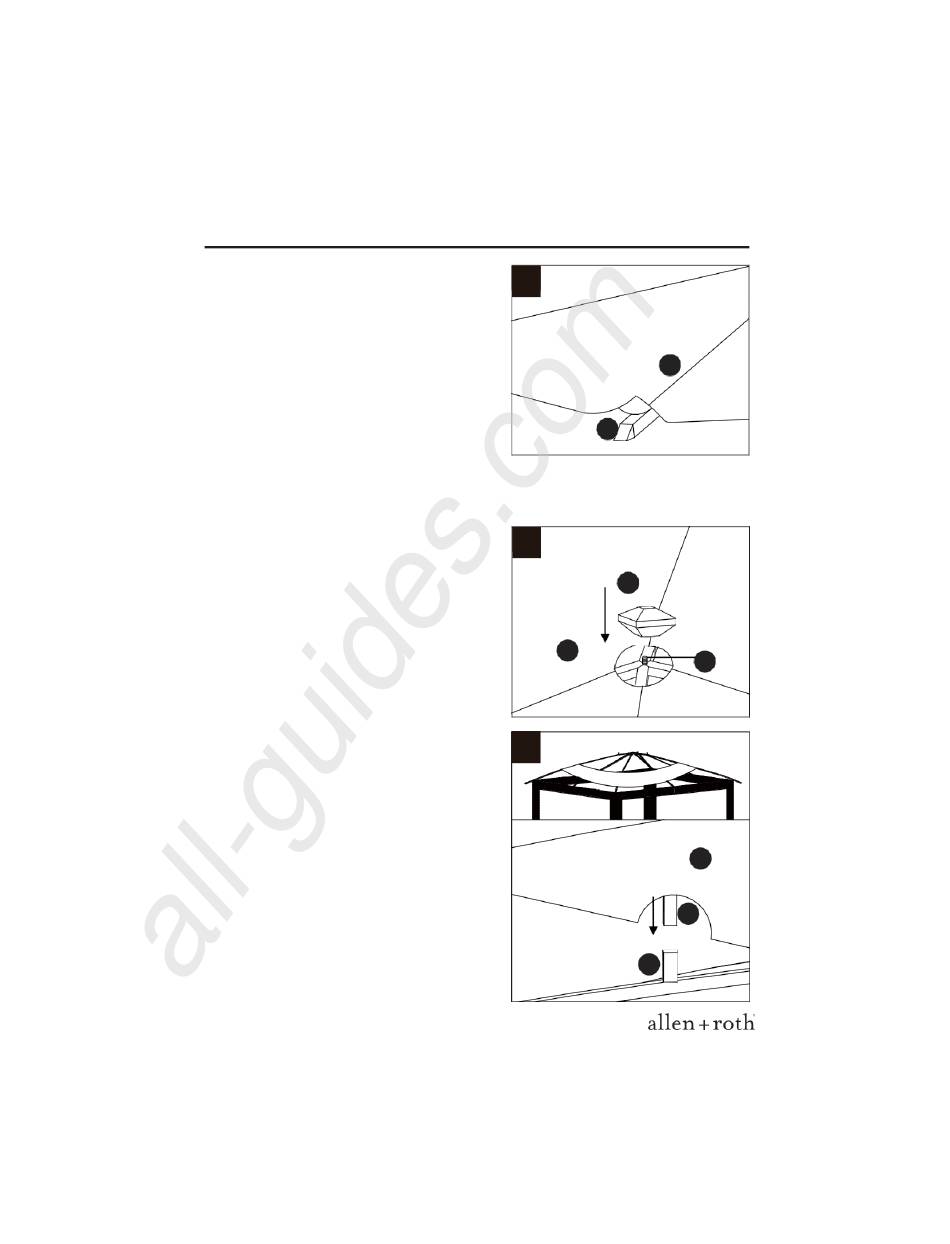

13. Place small canopy (Q) on small top, and
then attach four corners of small canopy
to small top sloped beams (J).
14. Place finial (L) to small top connector (K).
15. Place large canopy (R) onto the big top
assembly, but do not attach it yet.
Attach small top assembly by inserting
the tubes of small top sloped beams (J)
into the tubes on sloped beams (D).
13
J
14
L
Q
15
D
allenandroth.com
11
Q
K
Q
J
