This symbol indicates that the machine
is in conformance with the applicable
European directive.
MANDATORY
WARNING
These signs give advice
concerning your safety
MANUFACTURER
TYPE TYPE
WEIGHT
MASSE UTILE
MAXI TOOL Ø MAXI OUTIL
Ø ALESAGE
BORE
SPEED
T/MN - RPM
1

Technical features

• Engine : Robin➱24,5 CC - 2 stroke.
Honda➱25 CC - 4 stroke.
230 V.
• Rating : Robin➱0,55 kW (0,75 bhp).
Honda➱0,76 kW (1 bhp).
230 V --> 0,4 kW (0,5 bhp).
• Speed : Robin➱6000 rpm.
Honda➱8000 rpm.
230 V --> 8000 rpm.
• Vibration : Robin➱1,2 kN.
Honda➱1,2 kN.
230 V --> 1,6 kN
• Weight with Robin motor :
- model 2 m : 15 kg - model 3 m : 19 kg
• Weight with Honda motor:
- model 2 m : 17 kg - model 3 m : 21 kg
• Weight (electricity):
- model 2 m : 21 kg - model 3 m : 25 kg
POWER
MOTOR
EN ISO 3744
ROBIN 0,55 kW 102 Lw(A)
112 Lw(A)
HONDA 0,74 kW
0,4 kW (230V)
110 Lw(A)

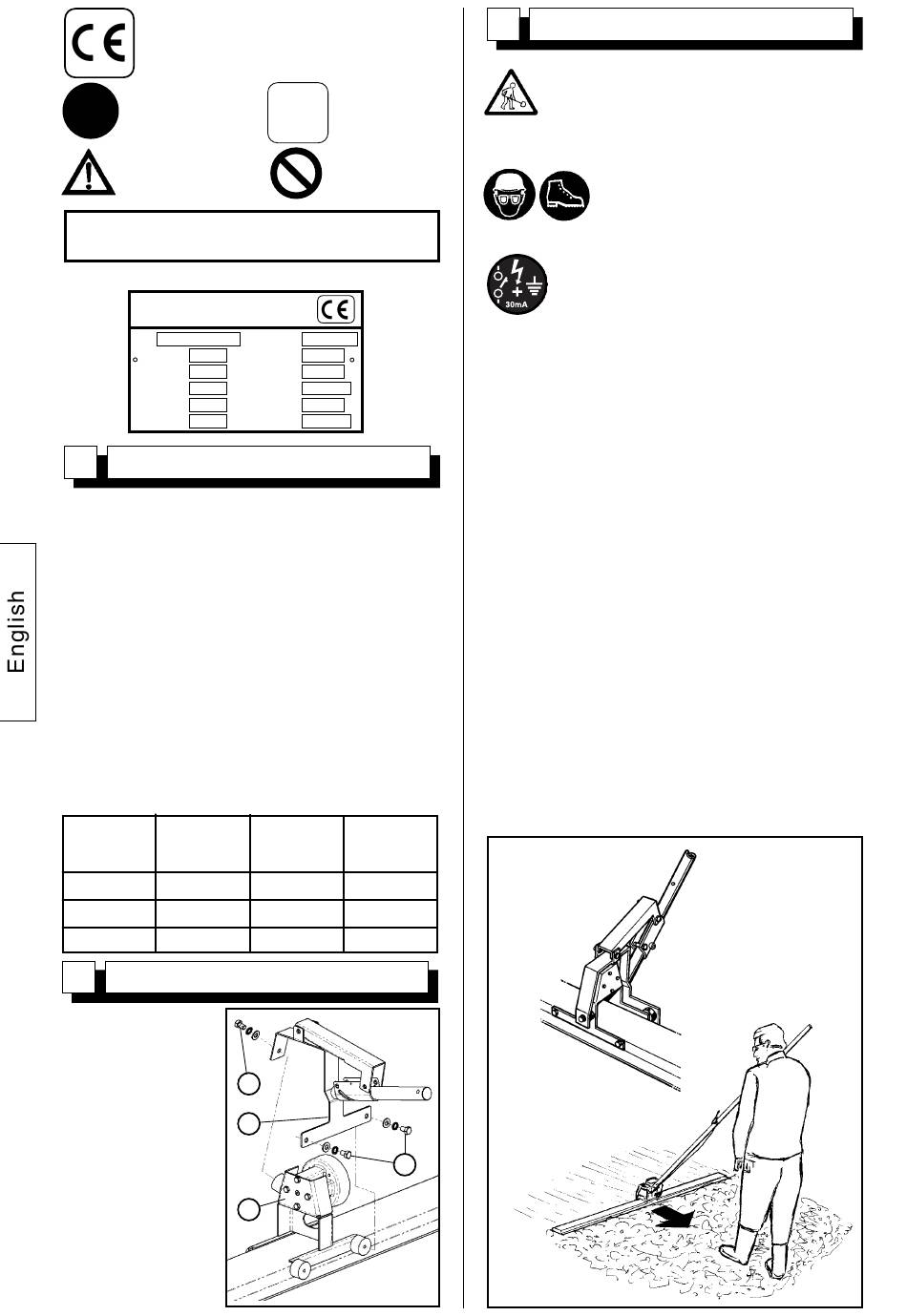

2 Fitting the rule [FIG. 1]
• Place the rule on
the floor.
• Position the shaft
support 1 on the
motor support 2.
• Insert the bolts 3
(fitted with their
washers) into the
silent blocks and
tighten the whole
assembly.
7
INDICATION
INFORMATION
INSTRUCTION
PROHIBITION
Instruction plate
N° SERIE
ANNEE DE
FABRICATION
Kg PUISSANCE kW
PLAGE DE
mm V
TENSION
mm FREQUENCE Hz
INT. UTIL. A
PRESSURE VIBRATION
LEVEL LEVEL
EN ISO 4871
88 dB(A)
94 dB(A)
104 dB(A)
3
1
2
3
SERIAL
FABRICATION
YEAR
POWER
VOLTAGE
FREQUENCY
• Level in the usual way, pour on the concrete and
INTENSITY
place your rule at the start of the first strip.
• Fit the shaft to the motor block.
• Before starting, spray diesel or shuttering oil on
the rule to prevent it sticking to the concrete.
• Start the engine (see instructions).
• Adjust the vibration to suit the fluidity of the
concrete.
• Place the bar on your shoulder and rotate it to tilt
the rule backwards or forwards.
• Pull slowly towards you.
• Repeat, if necessary.
• When smoothing the following strip, position the
rule so that it overlaps the area already
smoothed by 15 cm.
LEVEL
G ENV 25349
1 G
0,21 G
1,2 G
3
FIG. 2
FIG. 1
Operation [FIG. 2]
The working area must be perfectly
tidy, well lit and must offer no risks
(no humidity or dangerous products
in the vicinity).
The operator must wear suitable
protection when working.

- ELECTRICAL SAFETY :

Operate this machine only on a supply
equipped with a 30 mA earthed
current-limiting
Otherwise, consult our catalogue for
appropriate models.
circuit-breaker.
