INSTALLATION
COmmISSIONING
8.1

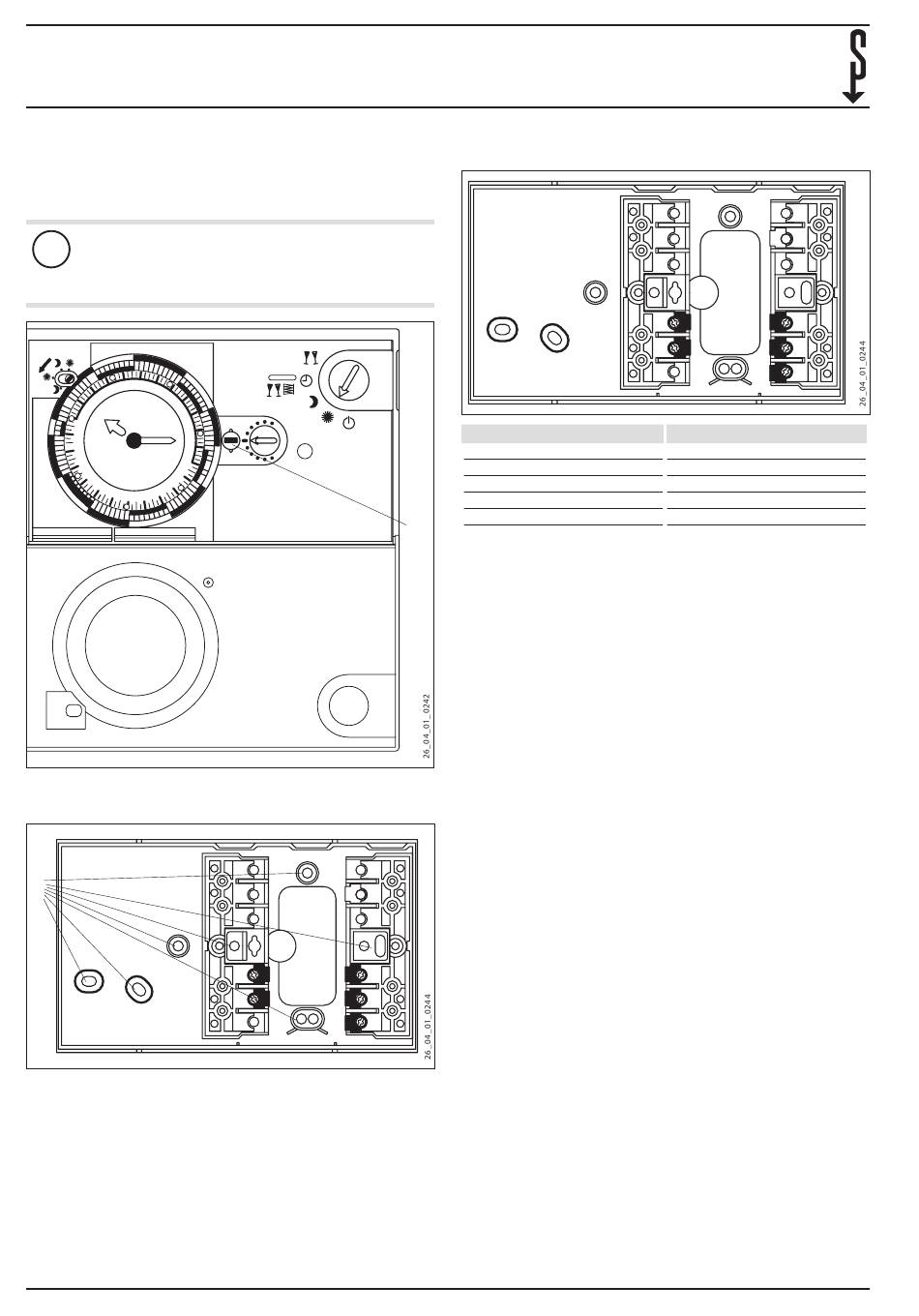

Wall mounting
The device is suitable for mounting on a surface box or on any
level surface.
Material damage
!
f when drilling fixing holes, check for the possible
f
presence of cables that may run underneath the
plaster.
1 Locking screw is locked in its horizontal position
1
1 Fixing holes
f Pivot the front cover down.
f
f Release the locking screw by a quarter turn anticlockwise.
f
f Lift the front cover from its base.
f
f Using the fixing holes, secure the base either on a surface
f
box or in a suitable location on the wall.
12 |
6
CL
2
1
7
1
2
8
9
3
4
10
5
11
6
12
8.2 Power supply
Terminal allocation
4
5
10
11
12
f make the electrical connection in accordance with the dia-
f
gram above. For this, observe the terminal assignment.
f Locate the connecting cable correctly inside the base.
f
f Position the front cover on the base.
f
f Lock the locking screw by a quarter turn clockwise.
f
9. Commissioning
9.1
Commissioning
f Switch on the power supply to the ventilation unit.
f
f Set the day time switch to your local time (see chapter
f
"Settings / day time switch").
9.1.1 Appliance handover
f Explain the appliance function to users and familiarise
f
them with its operation.
f Instruct the user specifically on the filter change indicator.
f
f make users aware of potential dangers.
f
f Hand over these instructions.
f
7
1
2
8
9
3
4
10
5
11
6
12
P (0 V)
24-48 V
Standby
Party
Day
FEZ
