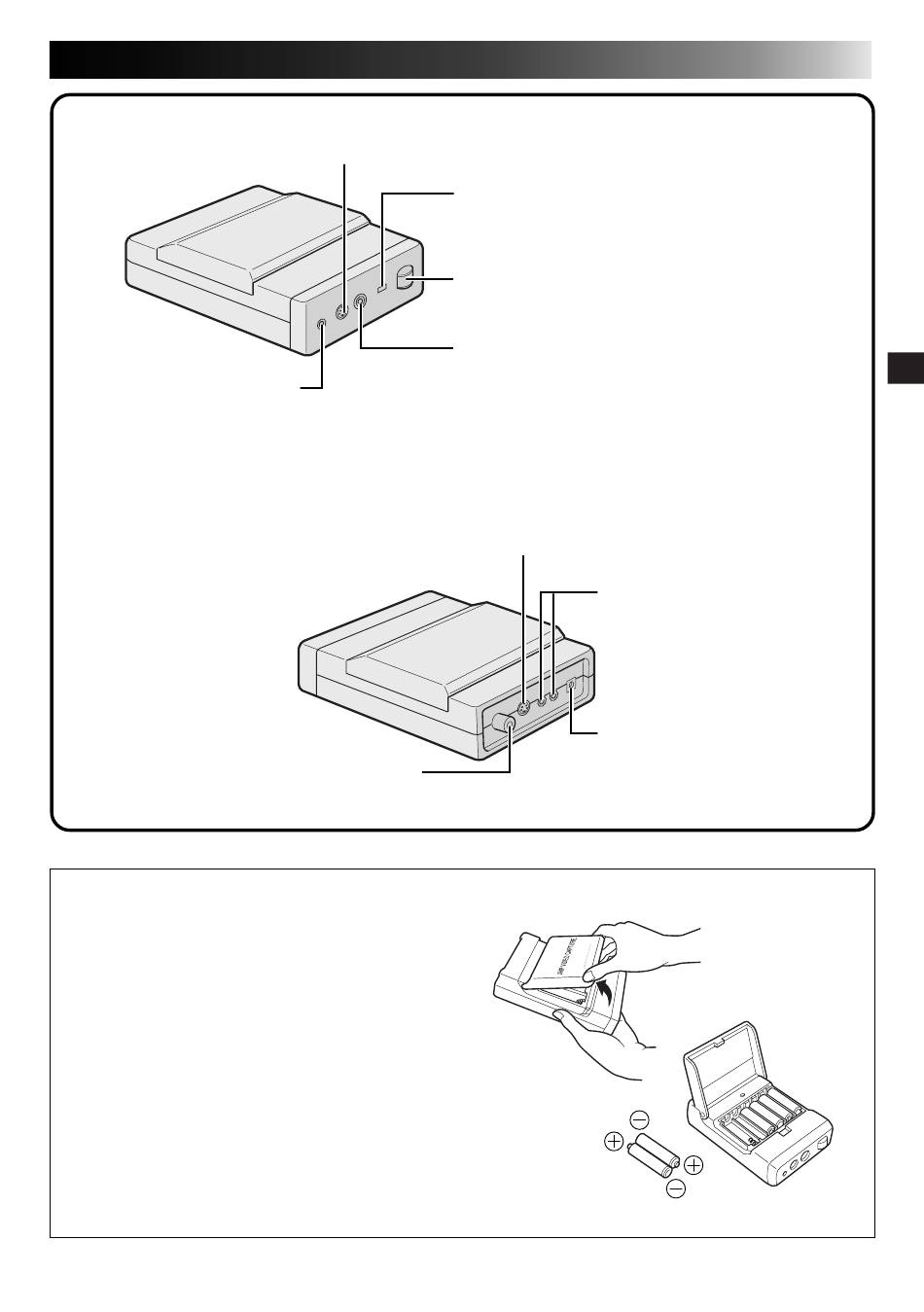

CONTROLS AND CONNECTORS
How to load the batteries
The JLIP Video Capture Box can be powered
with alkaline batteries (AA).
•Place six alkaline batteries in the battery
compartment.
•Be sure to align the batteries correctly.
•Remove the batteries if you're not going to be
using the unit for a long time.
•Handle the batteries with care as they are
very hot immediately after use.
Downloaded from:
S-Video input connector
JLIP connector
(JLIP: Joint Level Interface Protocol)
•Connect to a JLIP-compatible camcorder
or VCR for operation via a PC
Video output connector
https://www.usersmanualguide.com/
Power indicator lamp:
Lights when the power is turned on
Power button
Video input connector
Digital connector
•Connect to computer's RS-232C
terminal (COM port)
Open the lid.
JLIP connector
•connect to a JLIP-
compatible camcorder or
VCR for operation via a PC
DC input connector
• Connect the optional AC
adapter to this jack
