F. Element Closing:
A properly closed element is circular. It allows the pages to turn without
restricting the paper, while not allowing sheets to fall out of the binding.

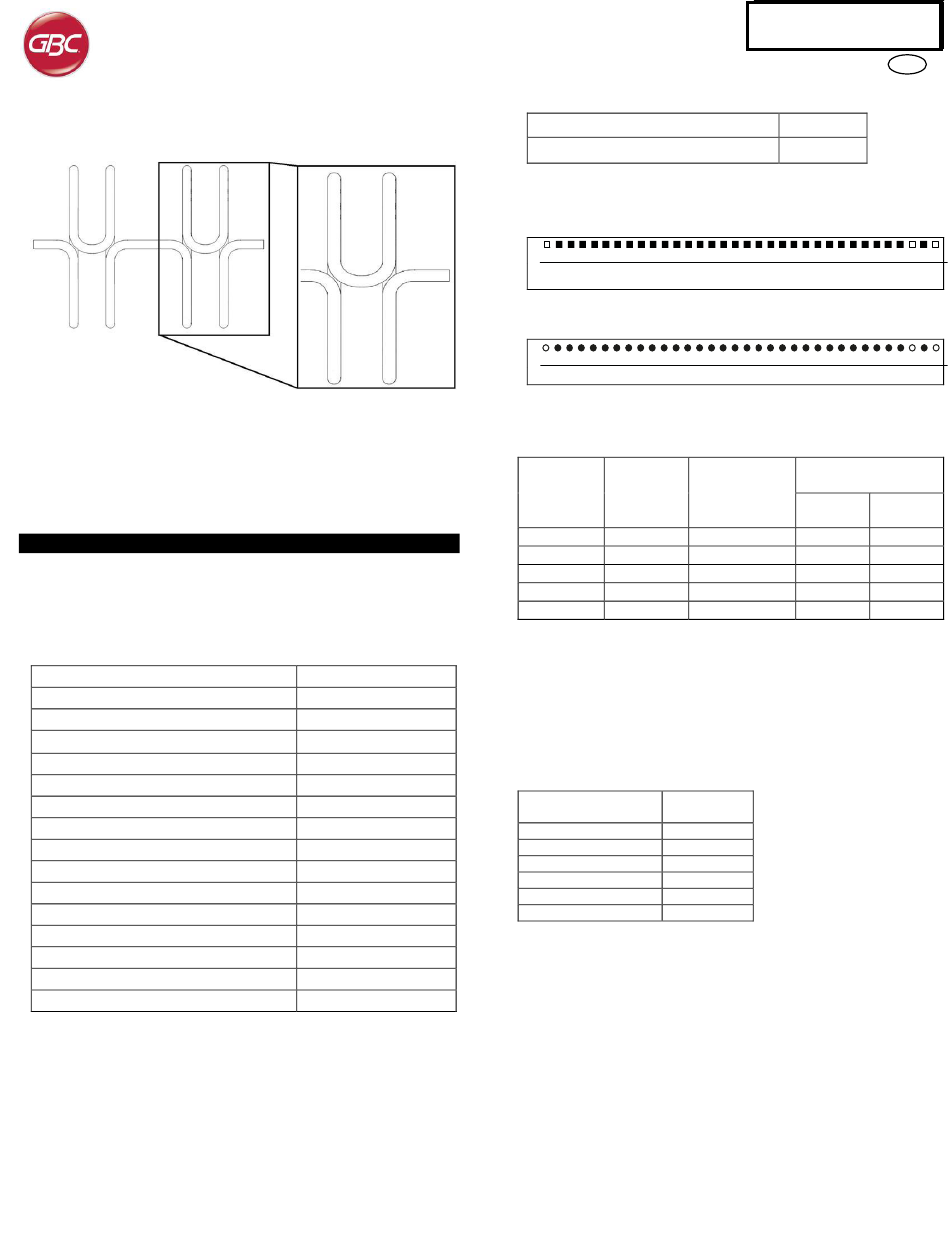

Above is a diagram of a correctly closed element. The element is
considered under-closed if it is possible to pull a sheet out of the twin
loop binding by pulling on the end of the sheet. The element is
considered over-closed if the element is oval shaped. If the element is
under-closed increase the closer value in the LCD tree, decrease this
value instead if the element is over-closed. After changing the setting
run a new book and inspect its element.

10. SUPPLY INFORMATION

A. Supply Order Information
Twin loop wire supply for the StreamWire machine comes in 5 different
sizes and 3 different colors. In order to switch between size and colors
of twin loop wire, follow the instructions in Section 4. To re-order or
order new wire supply, refer to the table below.
Description
eWire Spool, Element Size 'A', Black
eWire Spool, Element Size 'B', Black
eWire Spool, Element Size 'C', Black
eWire Spool, Element Size 'D', Black
eWire Spool, Element Size 'E', Black
eWire Spool, Element Size 'A', White
eWire Spool, Element Size 'B', White
eWire Spool, Element Size 'C', White
eWire Spool, Element Size 'D', White
eWire Spool, Element Size 'E', White
eWire Spool, Element Size 'A', Silver
eWire Spool, Element Size 'B', Silver
eWire Spool, Element Size 'C', Silver
eWire Spool, Element Size 'D', Silver
eWire Spool, Element Size 'E', Silver
Reorder Number
7717922
7717923
7717924
7717925
7717926
7717928
7717929
7717930
7717931
7717932
7717934
7717935
7717936
7717937
7717938
18
Die Set Part Numbers:
Die, eWire, 3:1, Round
Die, eWire, 3:1, Square
Die Set Description:
Square Hole Die:
1
eWire; Square; 3 Holes per inch; Hole Size: 5mm x 5mm (0.197" x 0.197") (L x W); Center-to-Center Hole Spacing:
8.5mm (0.333")
Round Hole Die:
1
eWire; Round; 3 Holes per inch; Hole Size: 5.5mm (0.217") Diameter; Center-to-Center Hole Spacing: 8.5mm (0.335")
B. Book Capacity Information
Sheet
Element
Capacity*
Size
(75 gsm)
A 15-30
B 31-50
C 51-60
D 61-70
E 71-80
*Sheet capacity based on 20lb (75 gsm) paper. Subtract 10 sheets
(1mm) to accommodate covers.
†
Max books per spool is the greatest number of books a spool can
produce if none is wasted during operation or set up.
If the maximum document thickness is exceeded for a job, the
StreamWire will display a J397. The table below contains the thickness
values the printer gives to each media weight. Select the appropriate
element size for the book thickness calculated using the table below.
Printer Designated Thickness
Media Weight Value
63.1 – 80.0 gsm
0.10
80.1 – 105.0 gsm
0.14
105.1 – 163.0 gsm
0.20
163.1 – 220.0 gsm
0.28
220.1 – 256.0 gsm
0.33
256.1 – 300.0 gsm
0.38
For example: A book of 2 x 270 gsm covers with 12 body sheets of 118
gsm would have a total thickness number of (2 x 0.38) + (12 x 0.20) =
3.16, therefore a size B element should be used otherwise a J397 jam
will occur with a smaller element size.
StreamWire
404772
404770
Max. Max Books Per
†
Document Spool
Thickness
Letter
(mm)
3 515
5 320
6 250
7 180
8 130
GB
32-LTR 34-A4
32-LTR 34-A4
A4
485
300
235
170
120
