DARDO 430 DARDO 430
GENERAL DESCRIPTION OF THE PRODUCT
Dardo 430 is a electromechanical operator for external mount on swinging gates in residential and block of flats applications. It
comes in a kit format to operate two gate leafs. Command and safety accessories for a proper performance are included. It is a non
reversible, 230 Vac power supplied motor-operator, complete with an incorporated encoder. Stop plates are fitted to the pressure
cast aluminium body. The linear movements are by a brass shaft nut (threaded bush) and a screw shaft (rolled thread), all
supported by a radial bearing and a lubricated bushing.
In case of an electric power failure, Dardo 430 can be "released" by a custom-made, coded key and the gates moved by hand.
Terminals are factory fitted to each operator and provide connections for the power supply and the encoder to the electronic
controller Elpro 43 , to be installed stand alone, in a sheltered place.
NOTE: The Dardo operators are not handed units and therefore they come all alike both for the right and the left gates: following
their respective connections to the Elpro 43 controller, they are identified as Dardo M1 (first gate to open and pedestriam mode)
and Dardo M2 (gate delayed on opening) (Pic.3).
Dardo does not come fitted with electronic limit switches as they are not necessary, limit stop positions are learned by the system
in phase of programming as determined by the incorporated stop plates.

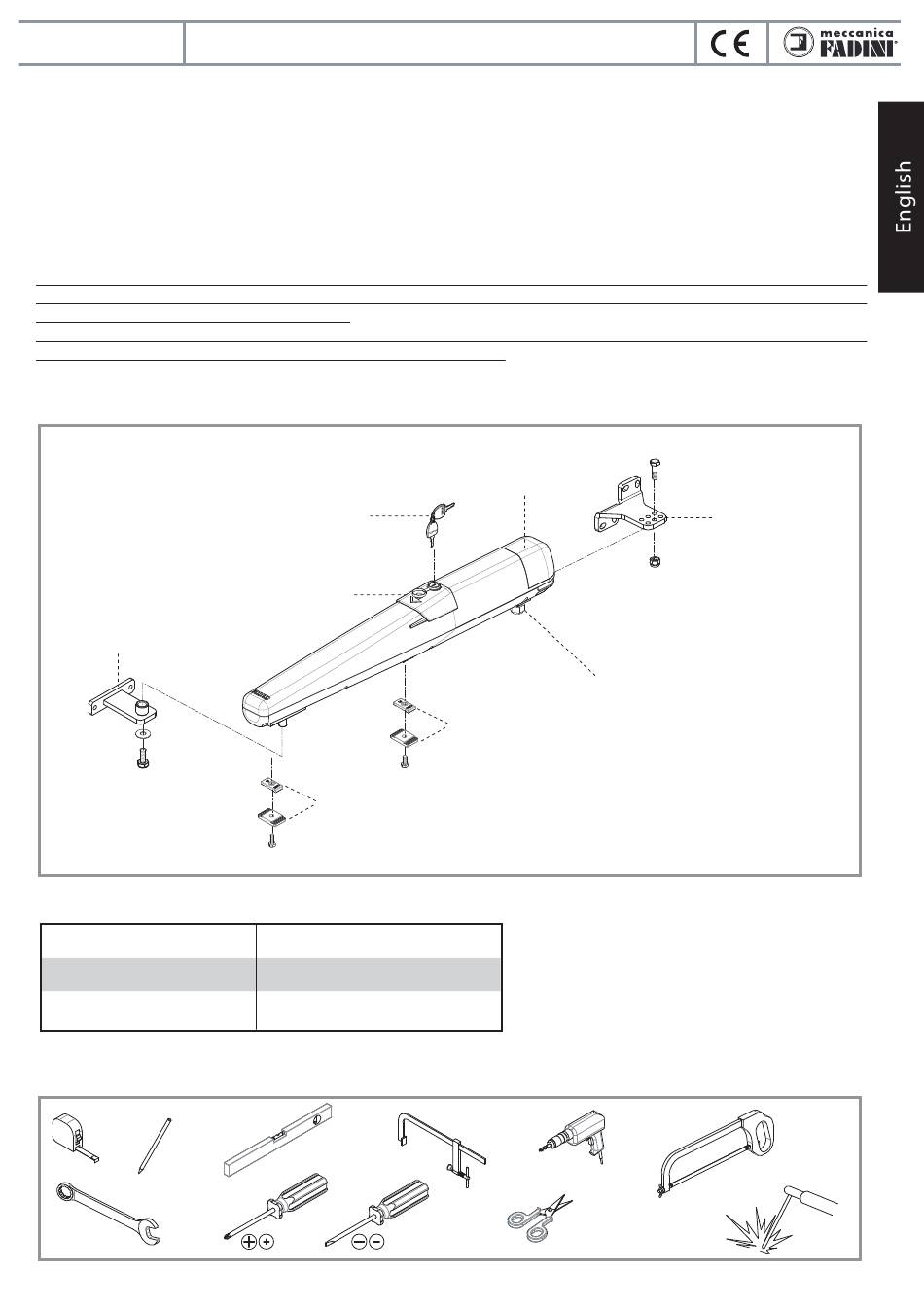

Pic. 1 displays all of the components that are delivered for the installation of each Dardo operator.
Sliding cover with lock as a
protection of the manual
Front bracket for
fixing to gate
M8
PRODUCT APPLICATIONS
The table below shows the maximum dimensions of a gate leaf in relation to its maximum weight.
Max. width per leaf L (m)
Max. weight per leaf P (kg)
NOTE: the gate structure should not be fully panelled without openings, avoid that in-filling is more than 50% of the gate surface.
EQUIPMENT REQUIRED FOR THE INSTALLATION
E13
electromechanical operator for swinging gates
Coded key for
manual release
release device
(Pic.12, page 22)
Innner
Outer
Inner
Stop plates in
Outer
closed gate position
cod. 430L - DARDO 430 - 230 Vac
2,0 2,5
350 300
Rear cap to protect the
electrical connections to the
inner terminal blocks
Cable inlet for
power supply and encoder
Stop plates in
open gate position
2,8
250
17
M8
Rear bracket
for fixing
to gate post
Pic. 1
