Installation

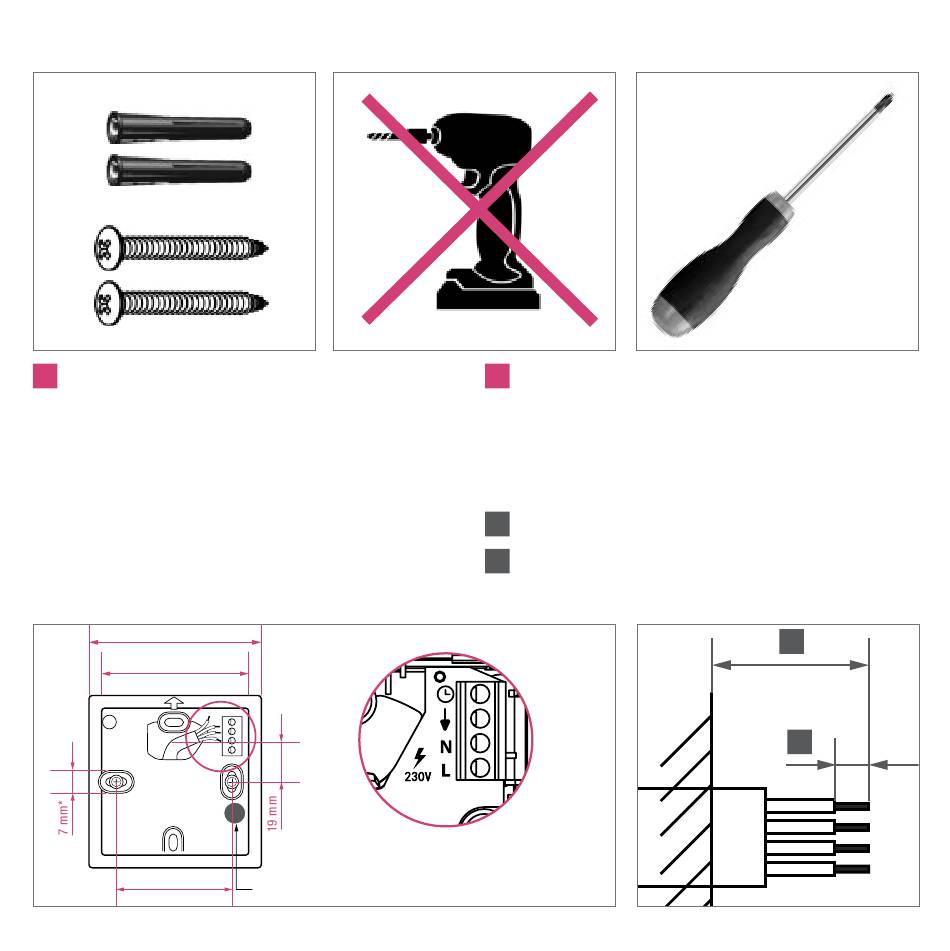

1 Wall mounting
For wall mounting, mark and mount the rear
case to the wall The Nea is suitable for wall
boxes with a center hole distance of
60 mm
* screw head maximum size
88 mm
75 mm
60 mm
40
Wiring connection Nea HT 24V & 230V
Fuse
2 Wiring connections
Solid and stranded wire
230V: 1 5 mm² square
24V: 0 75 mm² – 1 5 mm² square
A 55 mm
B 8 mm
A
B
