2 Interfacing
2.1 General
Refer to sections
2.2 and 2.3.
2.2 Input with
Phantom Power
Refer to fig. 1.
C 900 Phantom
2.3 Input with
No Phantom
Power
Refer to fig. 1.
Important!
14
The C 900 is a condenser microphone and there-
fore needs a power supply.
The microphone provides a balanced output on a
3-pin male XLR connector:
You can connect the microphone either to a
balanced microphone input with or without phan-
tom power or an unbalanced microphone input.
1. Use an XLR cable (e.g., the optional MK 9/10
from AKG) to connect the microphone to a
balanced XLR input with phantom power.
2. Switch the phantom power on. (Refer to the in-
struction manual of the unit to which you
connected your C 430.)
2.3
C 900
2.2

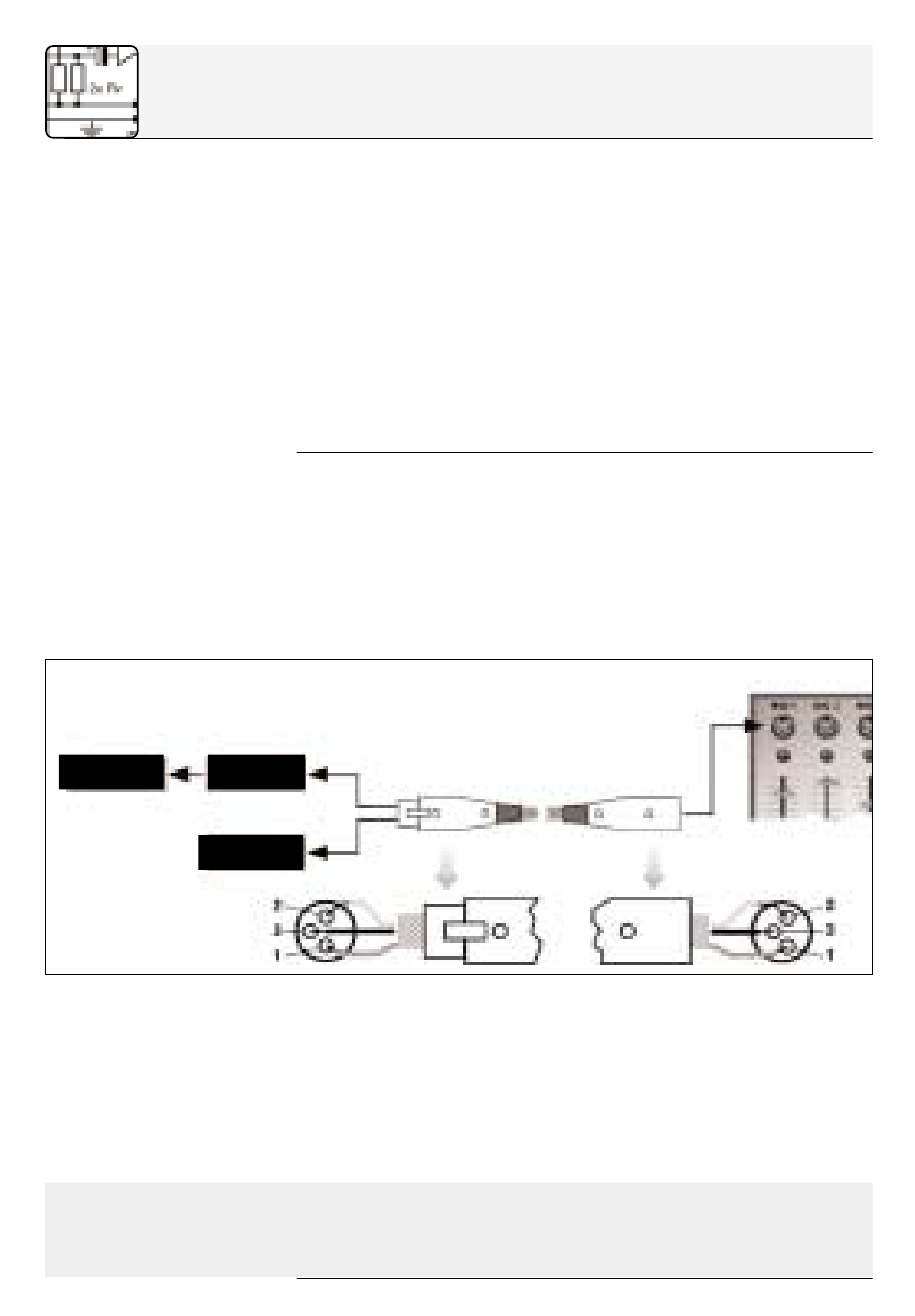

Fig. 1: Connecting to a balanced input.
1. If your mixer provides no phantom power,
connect an optional AKG phantom power
supply (N 62 E, N 66 E, B 18, B 15) between
the microphone and the mixer.
Using any power supply other than those
recommended by AKG may damage your
microphone and will void the warranty.
Pin 1: ground
Pin 2: hot
Pin 3: return
