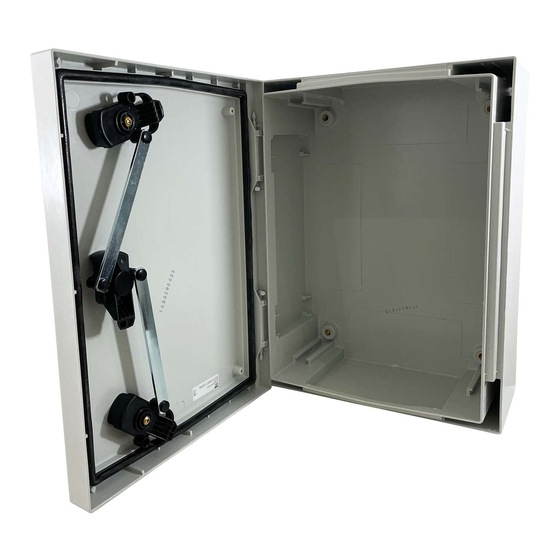

ABB ARIA Manuel D'installation

ARIA
IP 54/65/66*
Direct wall mounting
Montage mural direct
Direkte Wandbefestigung
Montaje directo
Montagem directa
Fissaggio diretto a muro
Direkte wandbevestiging
* depending on the door/locking mechanism as reported in the catalog
Wall fixing lugs
Pattes de fixation
Befestigungslaschen
Soportes de fijación
Suportes de fixação
Piedini di fissaggio
Bevestigingsvoetjes
4x 4x
IP 66
1
1
4x
300x200/400x300/500x400/600x400 - Ø6mm
700x500/800x600/1000x800 - Ø8mm
1
Air vent IP 34
Aérateur
Belüftungskappe
Aireadores
Ventiladores
Aeratori
Ventilatierooster
1
2x
Ø34.9
Rail for terminal blocks
Barrette pour clames de raccordement
Tragschiene für Klemmen
Barra para bornes terminales
Baramento para bornes
Barra per morsetti
Rail voor verdeelklemmen
Mounting plate
Platine de montage
Montageplatte
Placa de montaje
Placa de montagem
Piastra di fondo
Montageplaat
2
2
4x
400x300
500x400
600x400
700x500
800x600
1000x800
2
2
(2x)
2
4x
4x
4x
A B
45 43
45 43
45 43
80 55
80 55
80 55
B
A
1
(4x)
3
(2x)
(4x)
