Horizontal Ducting Preparation
Monsoon I Use, Care, and Installation Guide
Installation Instructions
AK9228BS & AK9234BS Models Only

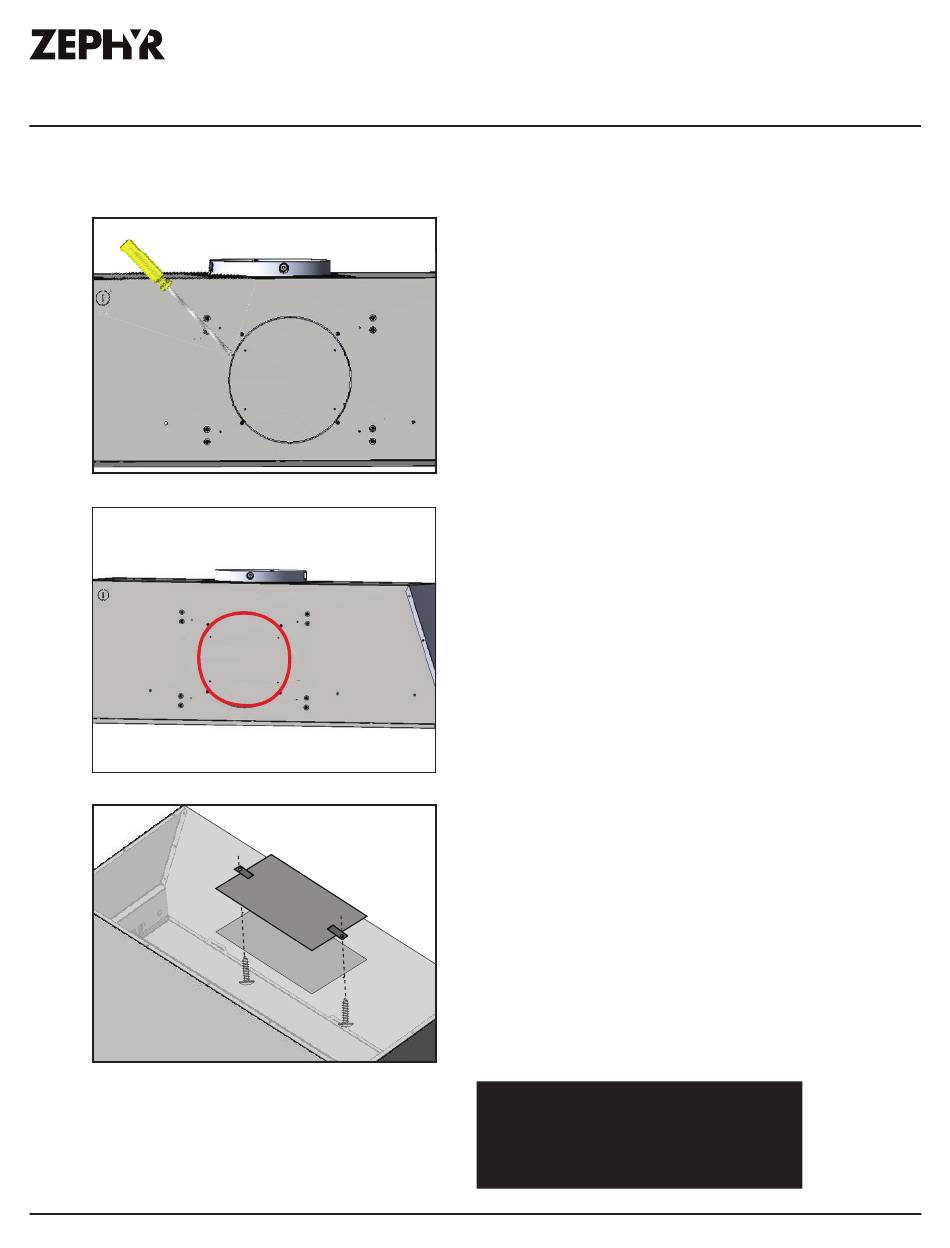

7. Using a flat head screwdriver,
remove 8" round knock-out
plates at the back of the liner.
8. Remove the round ducting knock-
out.
9. Place top rectangular cover plate
over opening on top of the liner.
NOTE: Make sure the cover plate
tabs are on top of the cover plate
as shown. From inside the liner,
secure plate to top of liner with
(2) 3/16 x 3/8 screws.
At this point, install the one piece liner At this point, install the one piece liner
into the cabinet by following the steps into the cabinet by following the steps
on Page 18, Step 4. After the liner on Page 18, Step 4. After the liner
installation, continue to page 24. installation, continue to page 24.
