Horizontal Ducting Preparation

1
Monsoon I Use, Care, and Installation Guide
1
2
1
2
Installation Instructions
AK9228BS & AK9234BS Models Only

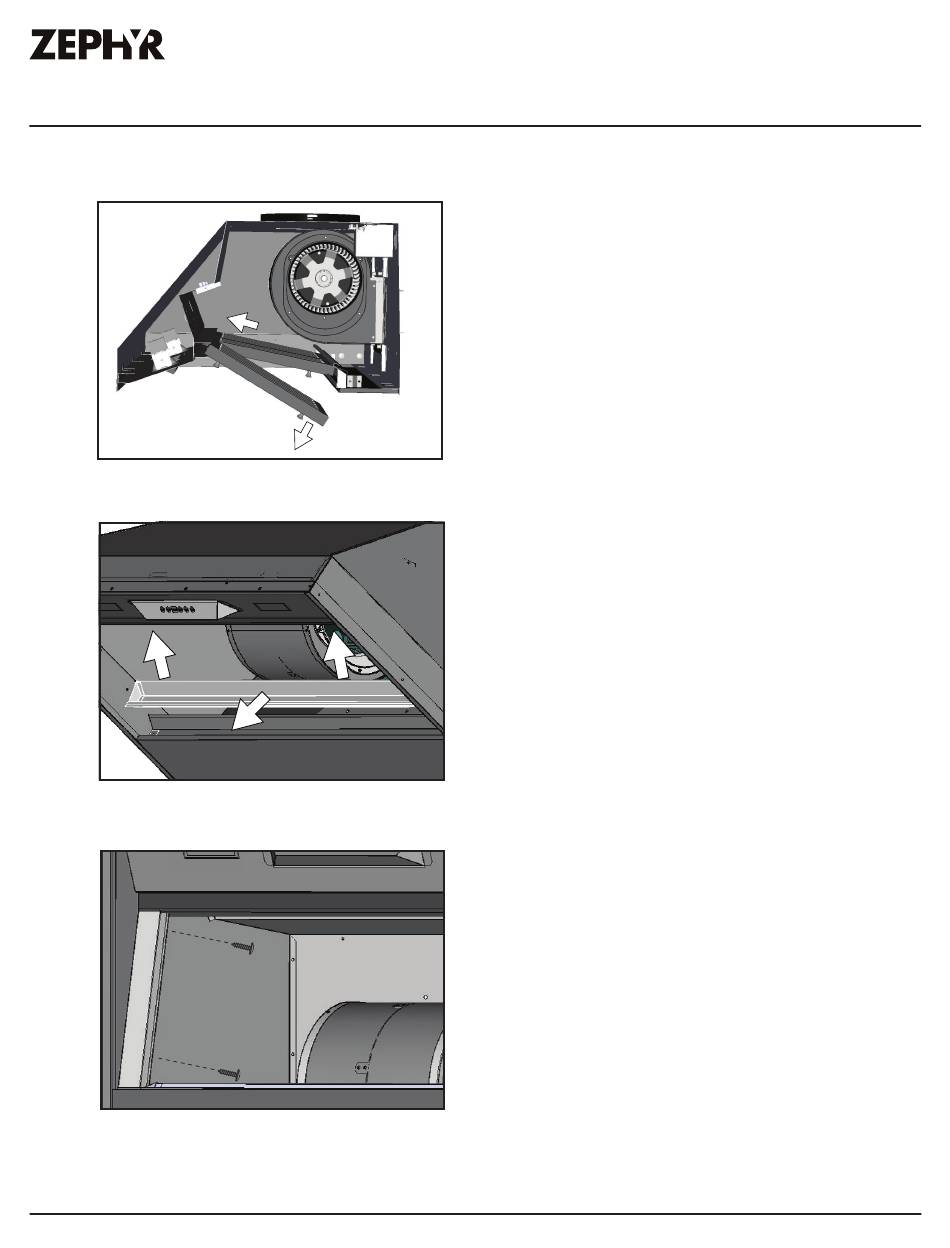

1. Remove baffle filters by: 1) Pulling
filter toward front of liner. 2)
Pivoting rear of filter down.
2. Remove grease tray by: 1) Pulling
up on tray to release from bottom
panel. 2) Lifting tray out of liner
body.
3. (If applicable) Remove left and
right side-spacer panels by
removing (2) screws from behind
each panel.
