TOOLS REQUIRED

S
Level
S
Drill with assorted bits
S
Socket wrench with 8" (20.3cm)
extension and assorted sockets
S
Tape measure
S
Framing square

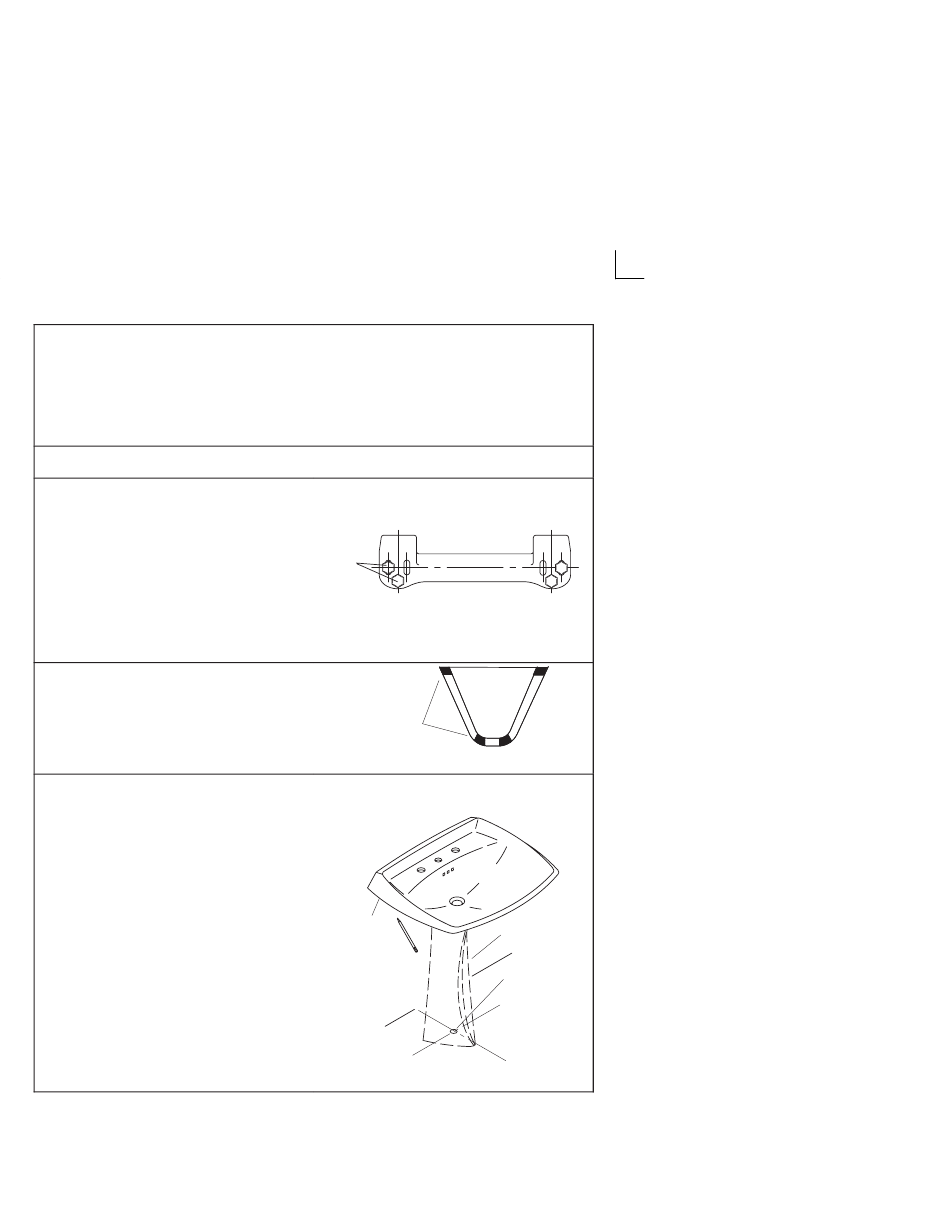

INSTALLATION
S
Rough-in the supplies and drain
piping and trap.
NOTE:
The supply stop handles can-
not extend more than 6" (15.2cm) from
the finished wall when in the open
position.
S
Install sufficient backing behind the
finished wall to provide a secure
material for the anchoring devices.
S
Install hanger to wall according to
roughing-in dimensions.
S
Apply four self-adhesive gaskets
(provided) on the top edge of the
pedestal
S
Mark the centerline on the floor.
S
Position the pedestal on the floor
centerline so the mounting hole is
approximately 9-3/8" (23.8cm) from
the finished wall.
S
Position the lavatory on the hanger
and pedestal.
S
Move the pedestal as required to
ensure proper fit in the desired
location.
NOTE:
The
lavatory
supported by the hanger and pedestal.
S
Check the lavatory placement.
S
Mark the center of each anchoring
hole on the wall, and mark the floor
through the hole in the pedestal
bottom.
S
Carefully remove the lavatory from
the pedestal. Then move the
pedestal from the area.
A
1011307-2-

MATERIALS REQUIRED

S
1/4" lag bolts and washers (6)
S
Wood screw and washer (1)
Lag
Bolts
Gaskets
Top of Pedestal
Finished
Wall
Anchoring
must
be
Holes
Kohler Co., Kohler, WI U.S.A.
2
Hanger
Pedestal
Mark Floor
Here
