WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.

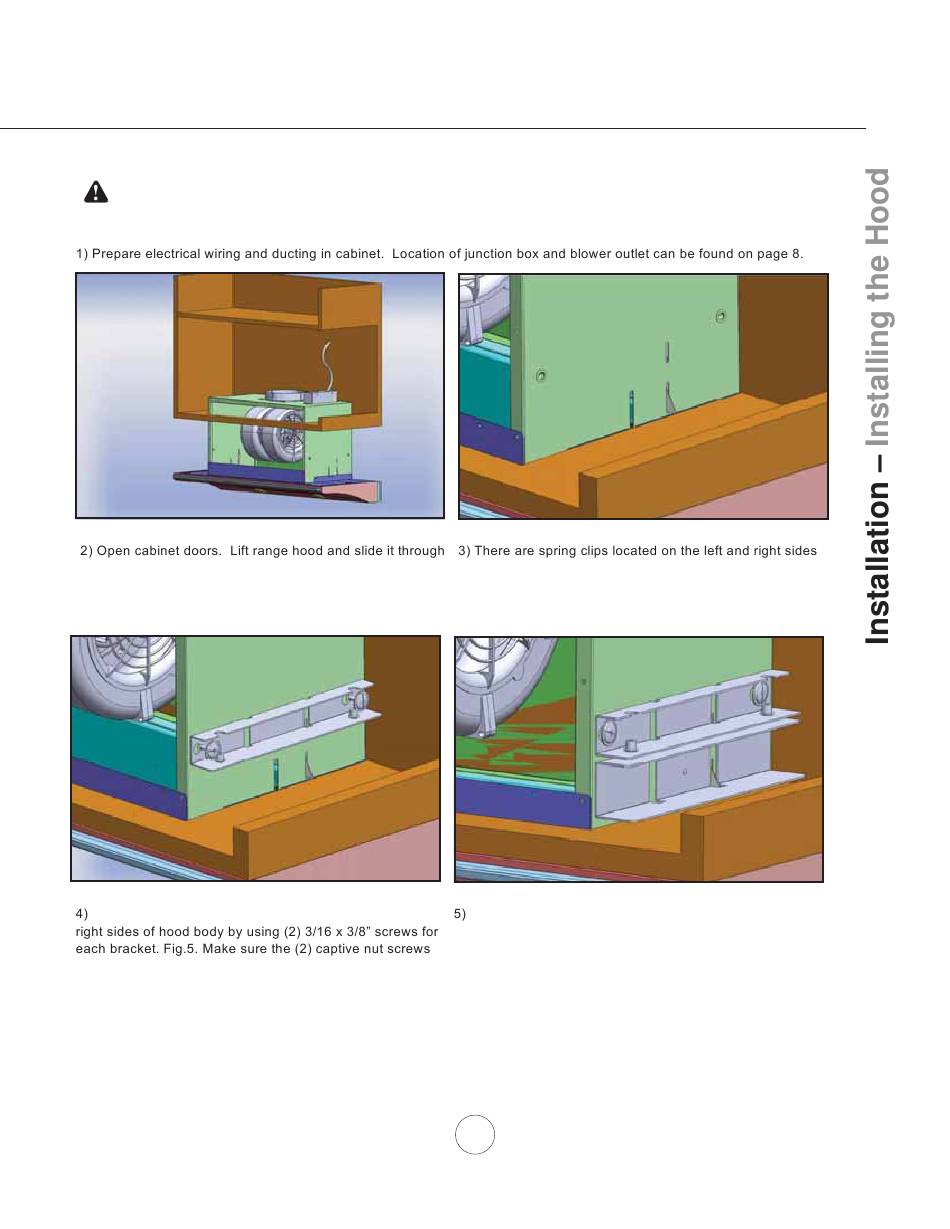

Fig.3
the opening located in the bottom of the cabinet, Fig.3.
Make sure opening matches the dimensions on page 9,
Fig.1.
Fig.5
24" Models Only. Secure upper brackets to left and
holes on the bracket are facing downward.
Fig.4
of the hood body which will temporarily hold the hood in
place, Fig.4.
Fig.6
24" Models Only. Place lower installation brackets
under upper installation brackets located on left and right
sides of hood body, Fig.6. Note: The wider portion of the
lower installation bracket should be at the bottom.
11
