EN
REPAIR AND CLEANING PROCEDURE
LOWER SEALS KIT
For easier service, it is recommended to stop the pump near
the lowest stroke position.
1. Unscrew the tube (69) from the pump body (59).
2. Unscrew the piston (68) from the rod (48). Take away the ball (65)
and the washer (66). Replace the V-ring (67).
3. Unscrew bolts (60), remove the outlet body (59) and replace the
seals (58, 64) and guide ring (57).
4. Reassemble in reverse order, applying thread locker in all joints.
5. All these seals are included in the available kit 539003.
PARTS LIST / TECHNICAL DATA / DIMENSIONS
PAGE: 27, 32 AND 33.
6
853 801 R. 06/20
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com

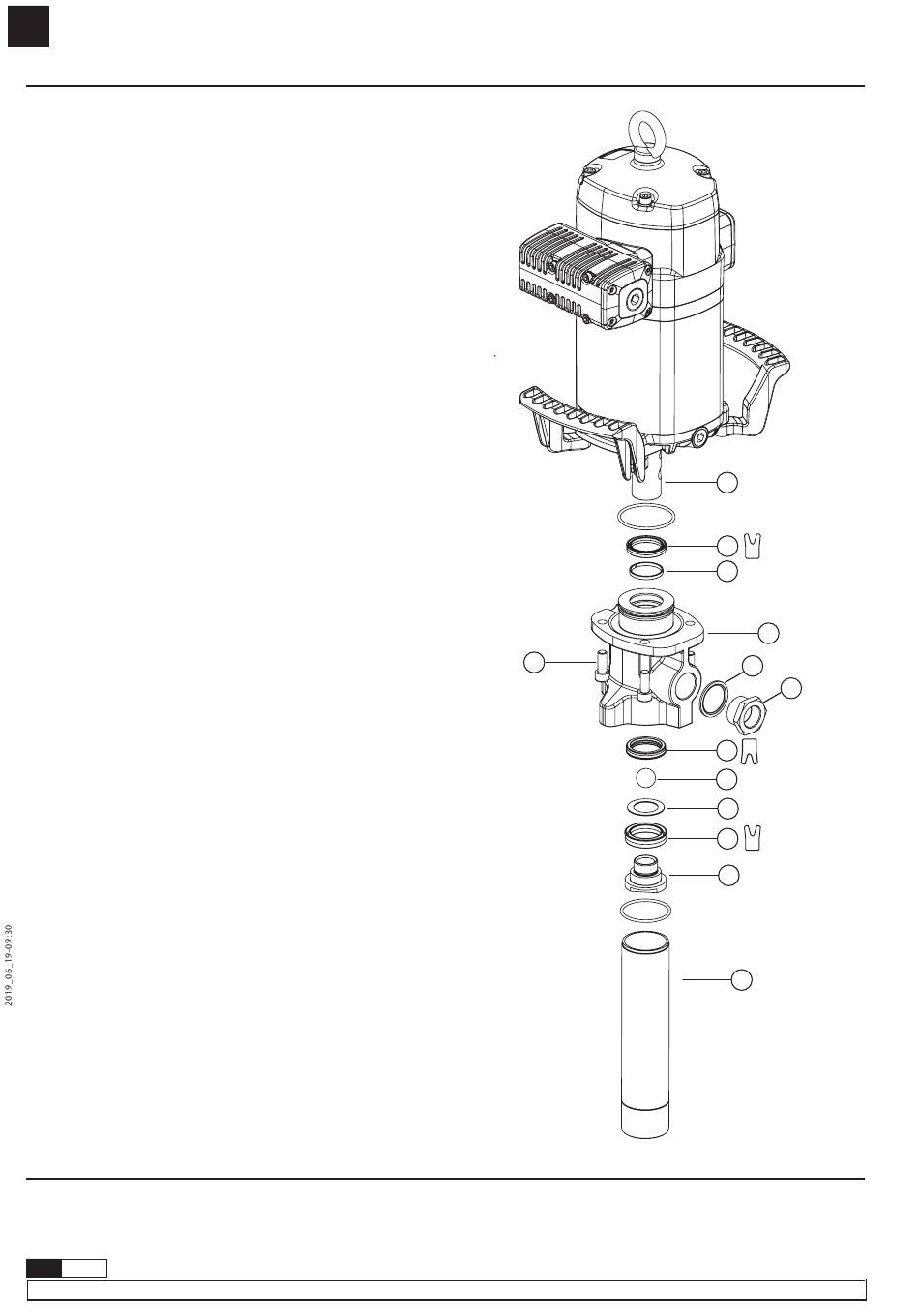

60
48
LIPS
58
FACING UP
57
59
61
62
LIPS FACING
64
DOWN
65
66
LIPS
67
FACING UP
68
69
Fig. 8
