k Sample Setup

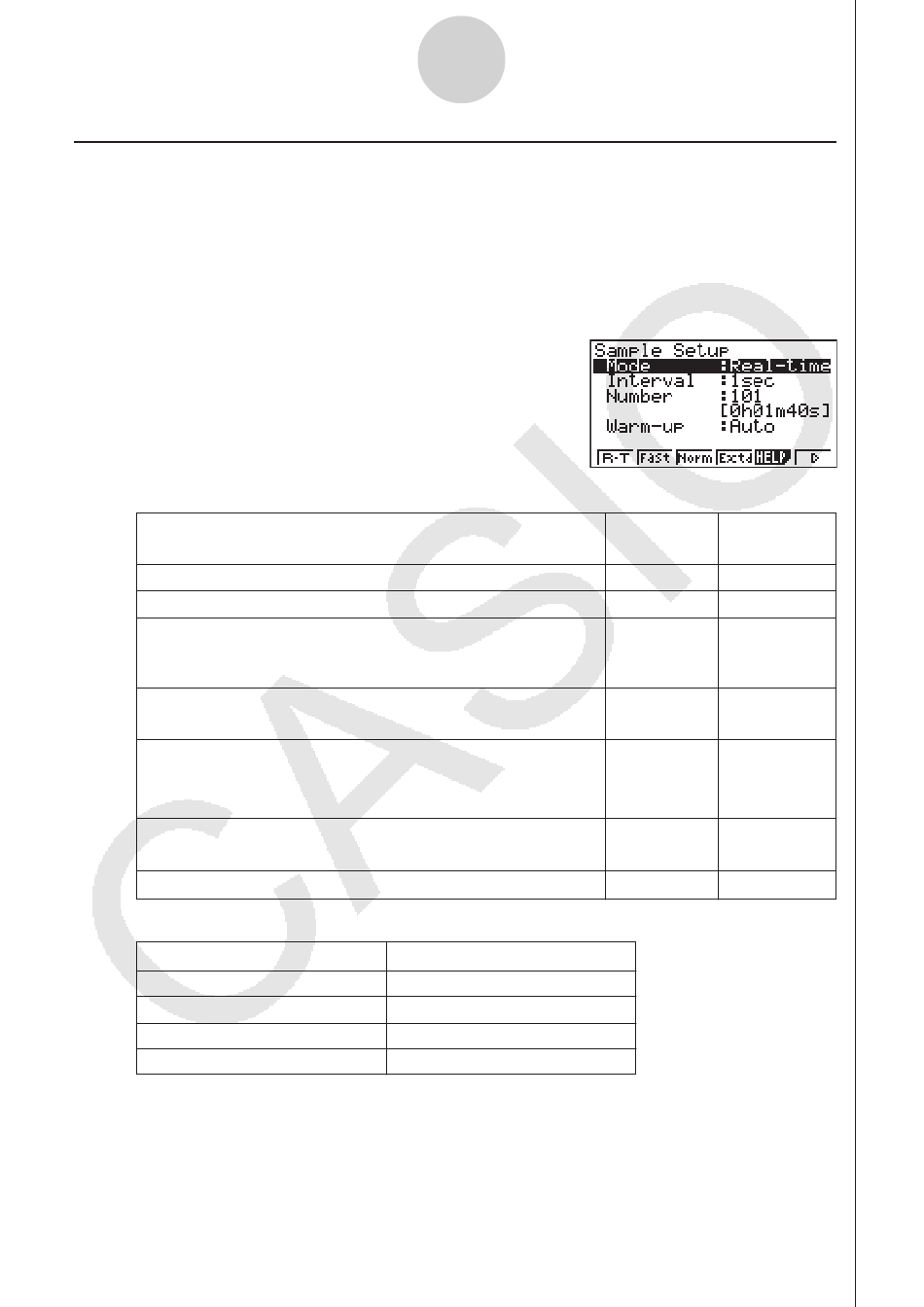

The Sample Setup screen lets you configure a number of settings that control sampling.
To configure Sample Setup settings
u u u u u
1. While the Advanced Setup menu (page 3-1) is on the display, press c(Sample).
• This displays the Sample Setup screen, with the "Mode" line highlighted, which indicates
that you can select the sampling mode.
2. Select the sampling mode that suits the type of sampling you want to perform.
To do this:
Graph data in real-time as it is sampled
Perform sampling of high-speed phenomena (sound, etc.)
Perform sampling over a long time (weather, etc.)
• The EA-200 enters a power off sleep state while standing
by.
Sample sound using the EA-200's built-in microphone
Record the time of the occurrence of a particular trigger
event as an absolute value starting from 0, which is the
sampling start time
Perform periodic sampling, from a start trigger event to an
end trigger event
Perform sampling other than that described above
• Note that the mode you select also determines the channel(s) you can use.
Sampling mode:
Realtime, Extended, Normal
Fast
Sound
Clock, Period
3-5
Using Advanced Setup
Selectable Channel(s)
CH1, CH2, CH3, SONIC
CH1, Mic
Mic
CH1
Press this
To select
key:
this mode:
1(R-T)
Realtime
2(Fast)
Fast
4(Extd)
Extended
6(g)
Sound
1(Snd)
6(g)
Clock
2(Clck)
6(g)
Period
3(Priod)
3(Norm)
Normal
