Assembly of the fl ue pipe
The product is assembled for a top outlet as standard.

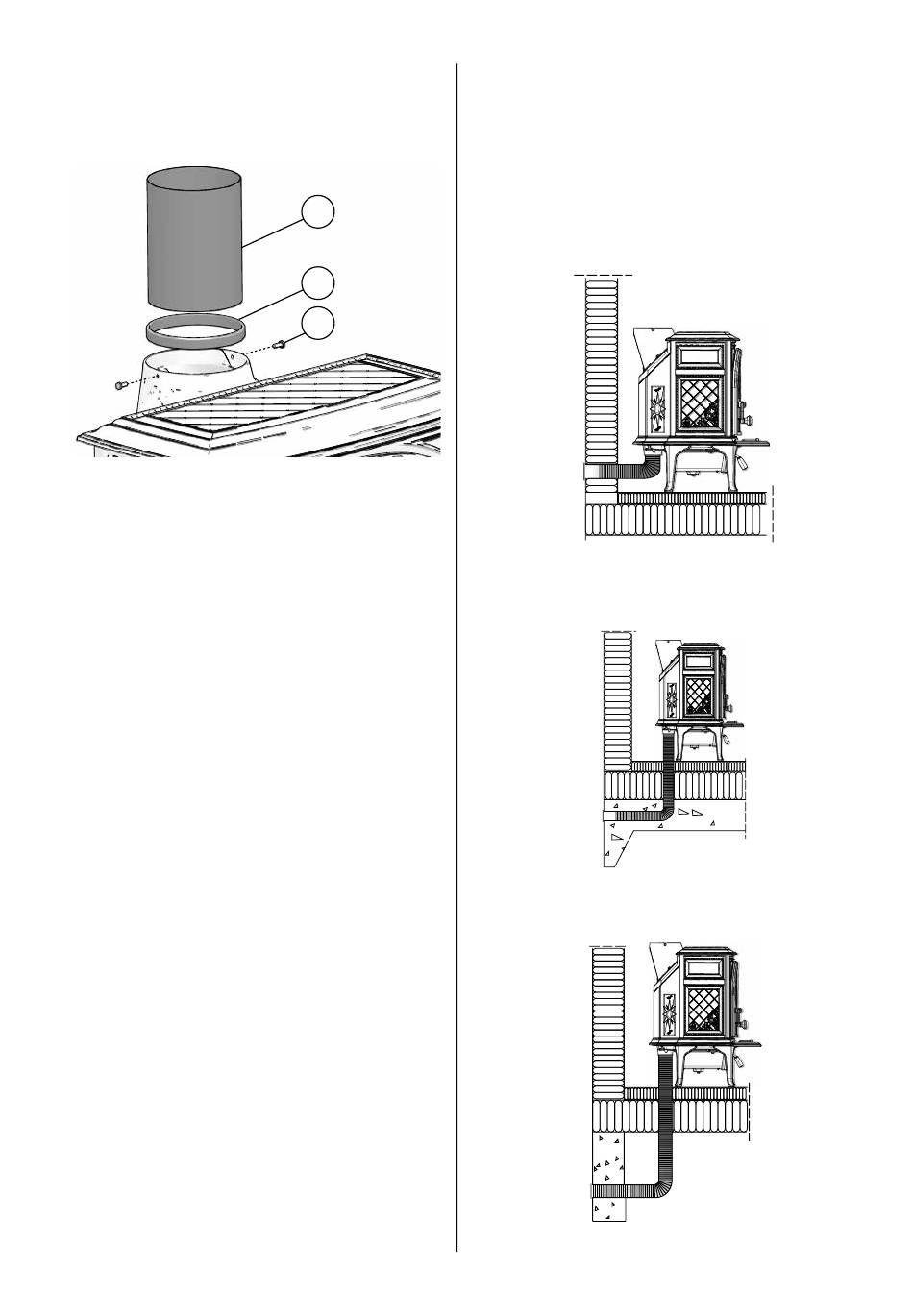

Fig. 6 Assembling the fl ue pipe
1. Mark on the fl ue pipe (A) where the screws hits when the
fl ue pipe is completely at the bottom of the smoke outlet
and drill a 7 mm hole in the fl ue pipe for the screws (C).
2. Pull the gasket (B) on the outer end of the fl ue pipe.
3. Insert the fl ue pipe into the smoke outlet and secure with
the 2 screws (C) from the bag of screws.
Flue pipe is installed in the same way for top and rear outlet.
4.3 Assembly with an external
air supply (optional equipment -
51047509)
Fresh air supply
The air used for combustion in any well-insulated house needs
to be replaced. This is particularly important in houses with
mechanical ventilation. Such replacement air can be procured
in several ways. The most important thing is to supply the air
to the room where the stove is placed. Place the outside wall
valve as close to the stove as possible.
For the fresh air supply connection, follow the national and
local building regulations.
Important! Ensure that air vents in the room where the
fi replace is located are not blocked.
Closed combustion system
Use the stove's closed combustion system if you live in recently
built, airtight dwellings. Connect the external combustion air
through a ventilation pipe through the wall or the fl oor.

Air supply

The amount of combustion air for Jøtul's products is approximately
20-40 m
the Jøtul F 400 ECO through:
•
•
A
Fig. 7a Through an outside wall
B
C
Fig. 7b Through the fl oor and ground plate
Fig. 7c Through the fl oor and basement
/h. The outside air connection may be fi tted directly to
3
the bottom
through a fl exible supply hose from the outside/chimney
(only if the chimney has its own duct for external air) and to
the product's outside air connector.
