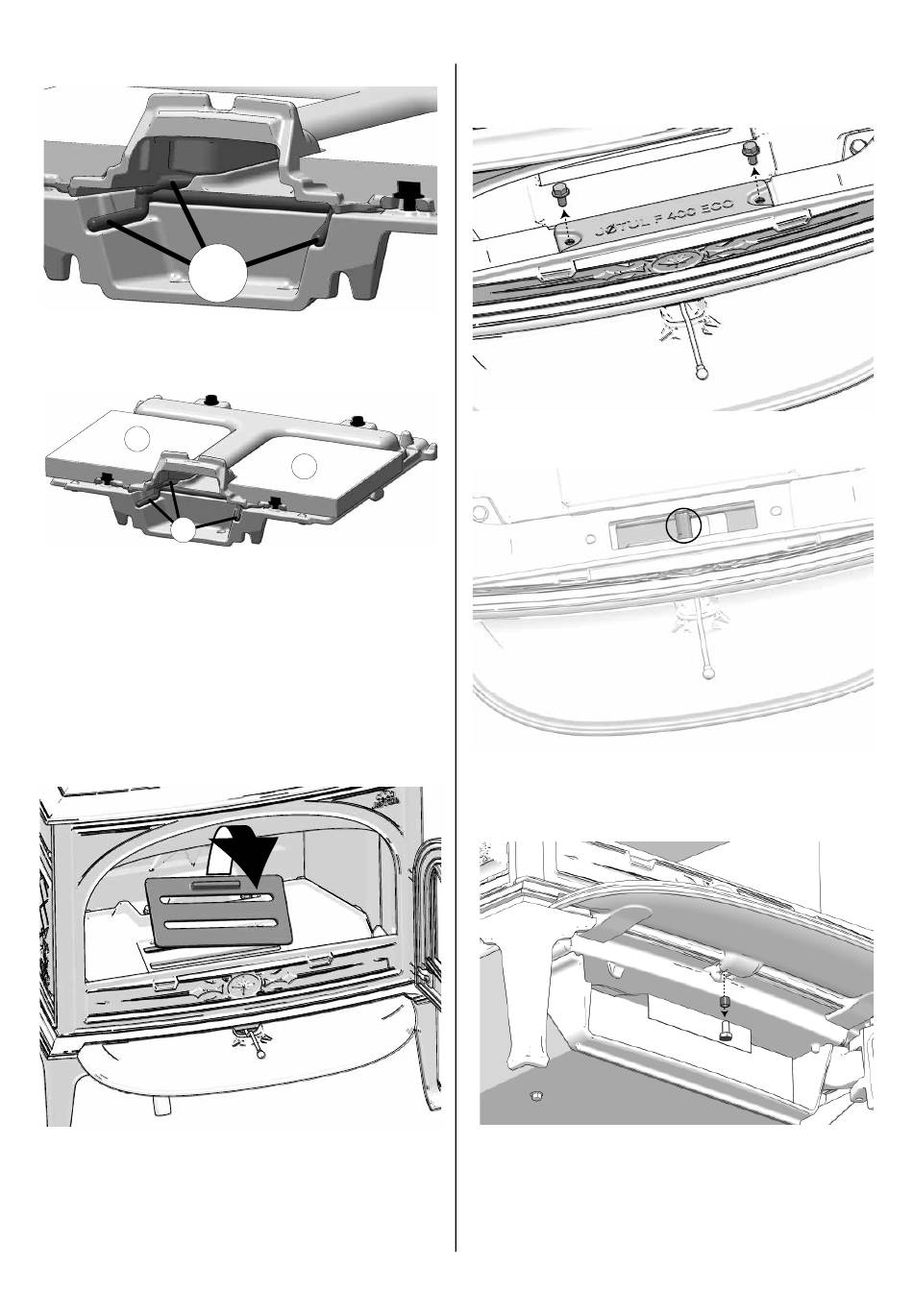

Fig. 21d
A
5. Apply cement (A) on the new rear burn plate.
Fig. 21e
B
A
6. Apply cement (A) on the new rear burn plate.
7. The rear burn plate will be supplied with 2 insulation mats
(B) on the rear.
8. When refi tting, follow the same procedure in reverse order.
7.4 Replacing the ash grate
Fig. 22
1. Tilt up the ash grate that loosely sits in the bottom plate of the
stove.
B
7.5 Replacing the valve handle
Fig. 23a
1. Loosen the 2 screws located inside the front.
Fig. 23b
2. The position of the valve handle is highlighted in the fi gure.
Tip: If the valve handle seems loose, check the valve to
see if the valve is positioned correctly.
Fig. 23c
3. Open the ash door.
4. Loosen the screw with the sleeve underneath by the ash
lip.
