Tonearm and pickup cartridge

Your new Thorens TD 700 is supplied with pre-mounted
tonearm Thorens TP 42 and pickup cartridge Audio Tech-
nica AT-95E (Fig. 3).
HINT: the following mounting procedures are applicable
only in case you want to change to an other cartridge.
The tonearm TP 42 is made to accept nearly any pickup
cartridge with standardised 12.5 mm (1/2") fixing holes.
Tonearm TP 42 with pickup cartridge AT-95E
Tracking force: 1.5 - 2.5 g / recommended: 2.0 g
The four colour-coded litz wires of the tonearm's headshell
are attached to the respective pins (identical colours) at
the rear side of the cartridge.
Some cartridges of yesterday however may not have col-
our-coded pins but show letters instead. We therefore ad-
vise to connect the litz wires as follows:
R
right channel = red wire (signal)
G
right channel = green wire (ground)
L
left channel = white wire (signal)
G left channel = blue wire (ground)

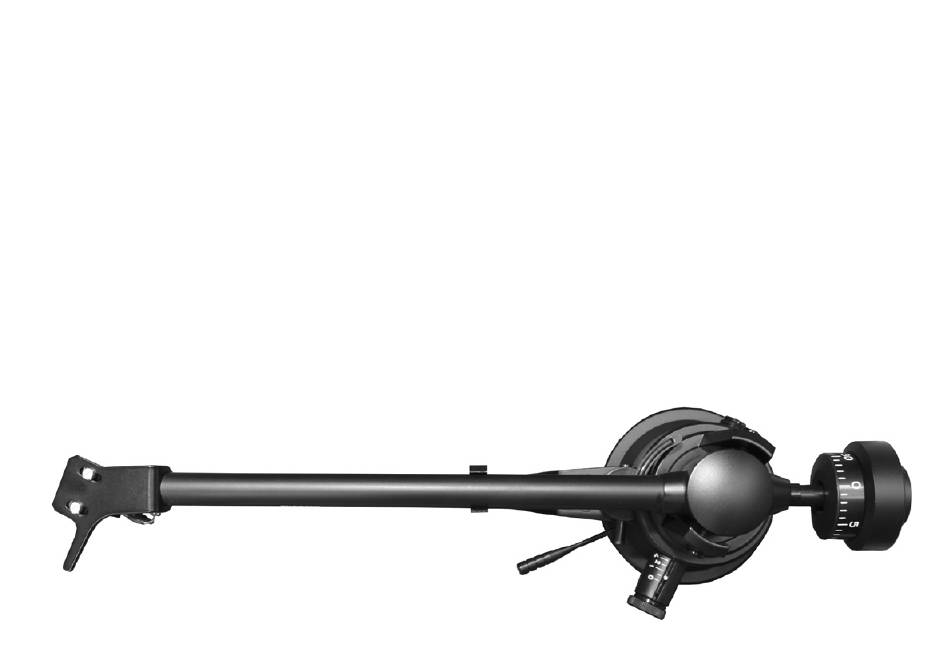

Fig. 3
