MOUNTING INSTRUCTIONS
15.0 m
KEY FEATURES
• Compact, high-resolution rear view camera for MERCEDES
Sprinter and VW Crafter vehicles
• Easy "Plug & Play installation
• Integrated microphone
• LDR controlled day / night mode with 6 night vision IR-LED's
• Manual adjustment of vertical image section in 3 steps
• Separable 3-part system cable, with cable lengths of 0.7m + 15m
+ 0.7m
DESCRIPTION:
ZENEC's vehicle-speci c rear view camera ZE-RCE4606 replaces the
original third brake light of your MERCEDES Sprinter or VW Crafter.
Of course, you don´t have to do without the third brake light. The
ZENEC camera module takes over the original brake light, for simple
„Plug & Play" retro t connecting to the vehicle-mounted cable.
An integrated microphone and an IR-LED night illumination system
are part of the ZE-RCE4606 cam as well.
This product is compatible with a wide variety of 2-DIN A/V receivers
of the aftermarket and the ZENEC E>GO product line up, including
ZENEC 2-DIN Infotainers and Naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP68. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP68 rated camera models
by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
INSTALLATION:
Use a Phillips screwdriver to remove the two screws on the left
and right of the third brake light. Carefully pull out the brake
light and disconnect the plug on the rear. Now you have to
loosen the original bulb from the third brake light and insert it
into the ZENEC module. The enclosed sealing tape must also
be glued to the ZENEC module so that it later seals between
the vehicle and the brake light. If necessary, clean the area
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com

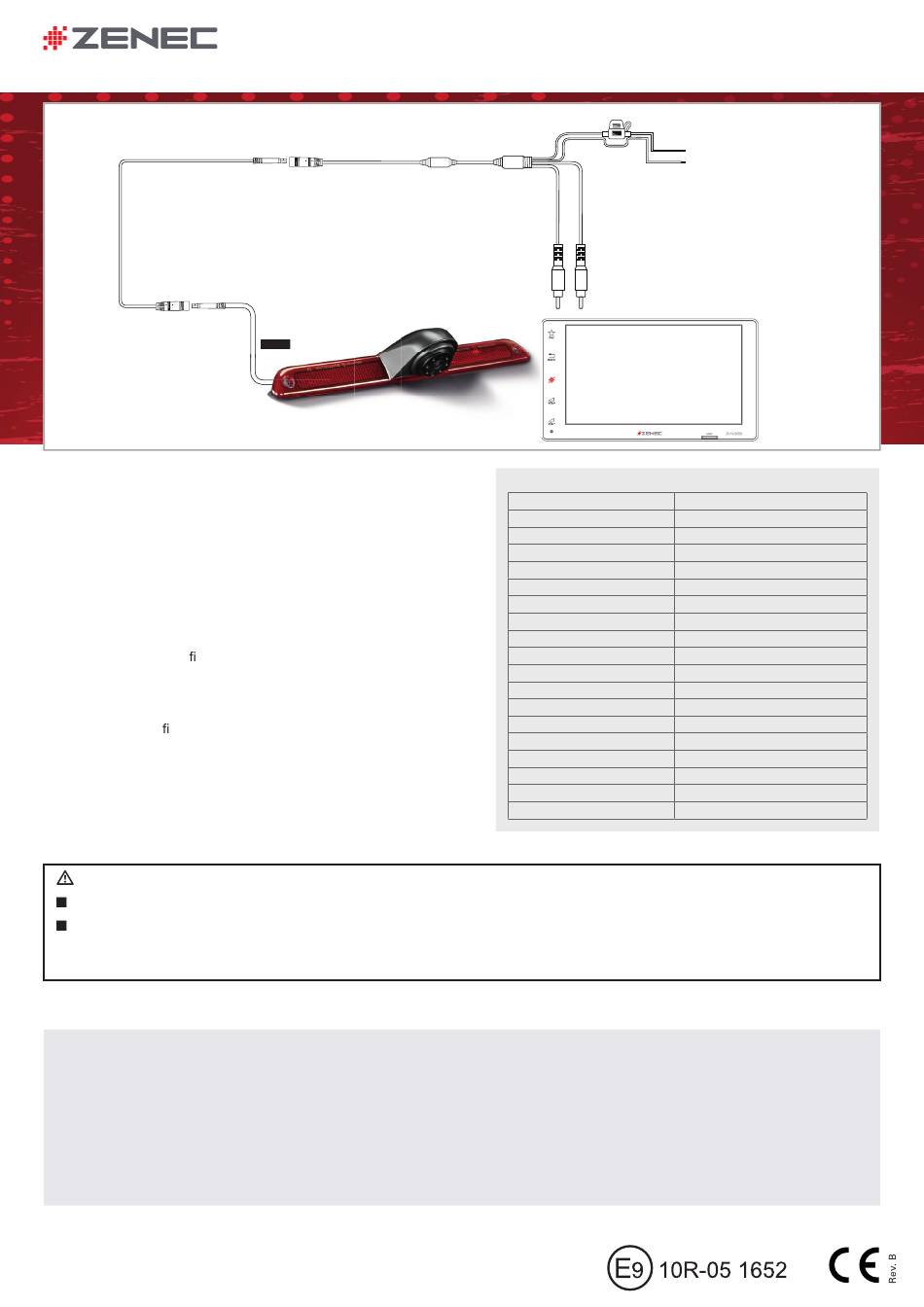

REAR VIEW CAMERA FOR MERCEDES SPRINTER REAR VIEW CAMERA FOR MERCEDES SPRINTER
0.7 m 0.7 m
ZE-RCE4606 ZE-RCE4606
2A fuse
0.7 m
Video / Audio Out
(connect to Moni-/Naviceiver)
Technical Specifications:
Image device:
Lens focal length:
TV system:
View angle:
Native sensor resolution:
Resolution of video-out:
Frame rate:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
around the brake light recess. Connect the ZE-RCE4606
module to the plug (power supply) you previously unplugged.
Insert the module and screw it with the original screws.
Route the connecting cable through the vehicle forward,
connect it to your device and perform a functional test.
Red: CAMERA PWR (+12V)
Black: GND
¹/ ³ " / 8.5mm Sony CCD sensor
f2.6
NTSC / 60 Hz
130°(D) x 102°(H) x 77°(V)
752 (H) x 494 (V) pixels
> 600 TV lines
60 fi elds/sec.
> 48 dB
0.1 Lux, 0 Lux if IR on
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
DC 12V
150mA (DC12V) / ≤ 1800mW
IP68
-20°C~+70°C
