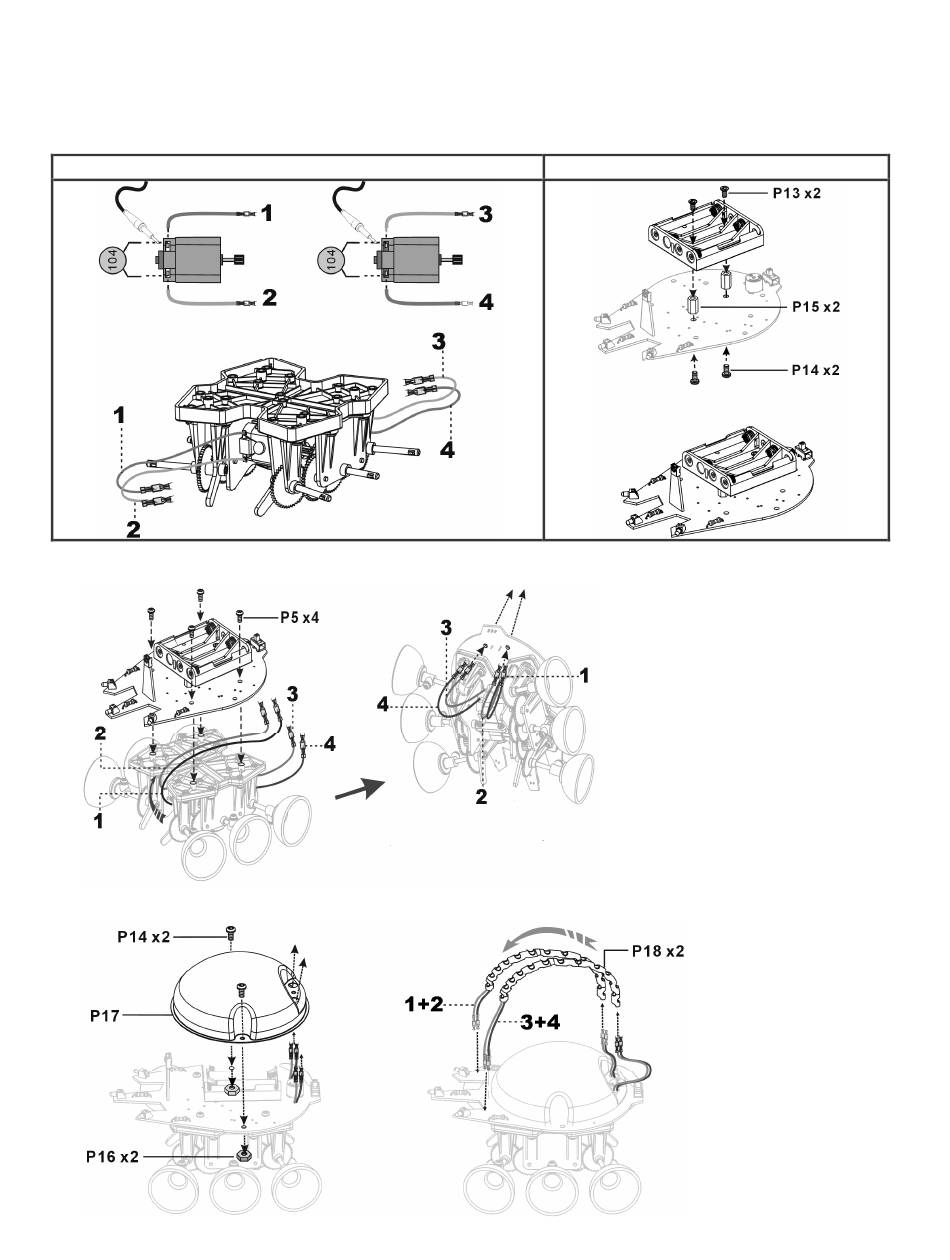

c) Mechanical Assembly
1. Mount the wires and the ceramic capacitors type 104 on the motors and fix the battery holder on the PCB.
Connect the battery holder to the battery connector (BAT, see "4.a) PCB assembly").
The colour code used for the wires is: 1=green, 2=yellow, 3=orange, 4=blue
wires / capacitors
2. Fix the PCB to the gearbox and put the wires through the holes at the back of the device.
3. Attach the body to the device and put the wires through the hosepipes:
KSR4
Fig. 6
Fig. 8
Fig. 9
5
battery holder
Fig. 7
VELLEMAN
