4. GENERAL SPECIFICATIONS

4.1 Dimensions and weight

70 x 193 x 37 mm
I I

4.2 Instrument's clamping capacity

≤ 26 mm
I

4.3 Power supply

A standard alkaline 9 V battery (type IEC 6LF22, 6LR61 or
I
NEDA 1604). To change it, see § 7.1.
Average battery charge life: 100 hrs or 30000 x 10 sec
I
measures
Battery charge indicator
I
Flashing: autonomy < 1 hr
Continuous: change battery
Automatic shutdown if the selector switch or HOLD key are not
I
activated for 10 minutes (move the selector switch through the
OFF position or activate the HOLD key to switch on again)

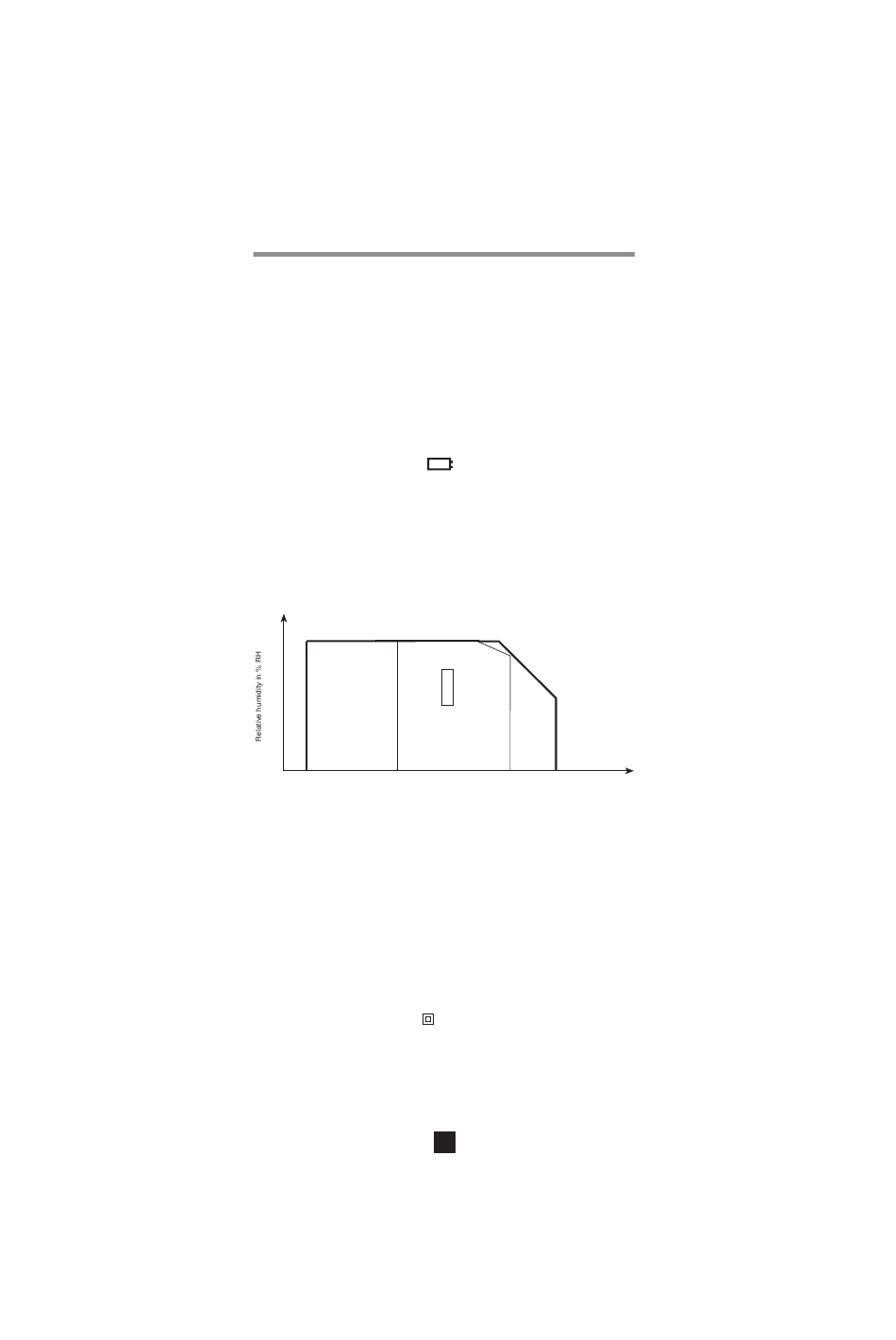

4.4 Environmental parameters

Temperature - Humidity
I I I I I
90
80
70
60
Ž
50
40
30
20
10
0
-50 -40 -30 -20 -10 0 10
Temperature in °C
Œ
Reference range
Ž
Storage range (without battery)
Altitude
I I I I I
- Operation: ≤ 2.000 m
- Storage ≤ 12.000 m
Indoor use
I I I I I
Impermeability: protection index IP 40
(according to EN 60529)

4.5 Compliance with norms

Electrical safety
I I I I I
(as per EN 61010-1 and 61010-2-032)
- Double insulation:
- Installation category: III
- Pollution level: 2
- Rated voltage: 600 V (RMS or DC)
or - Installation category : IV
- Rated voltage : 300V (RMS or DC)
260 g
:
+
-
Œ  Ž
20 30 40 50 60 70 80 90

Operating range
