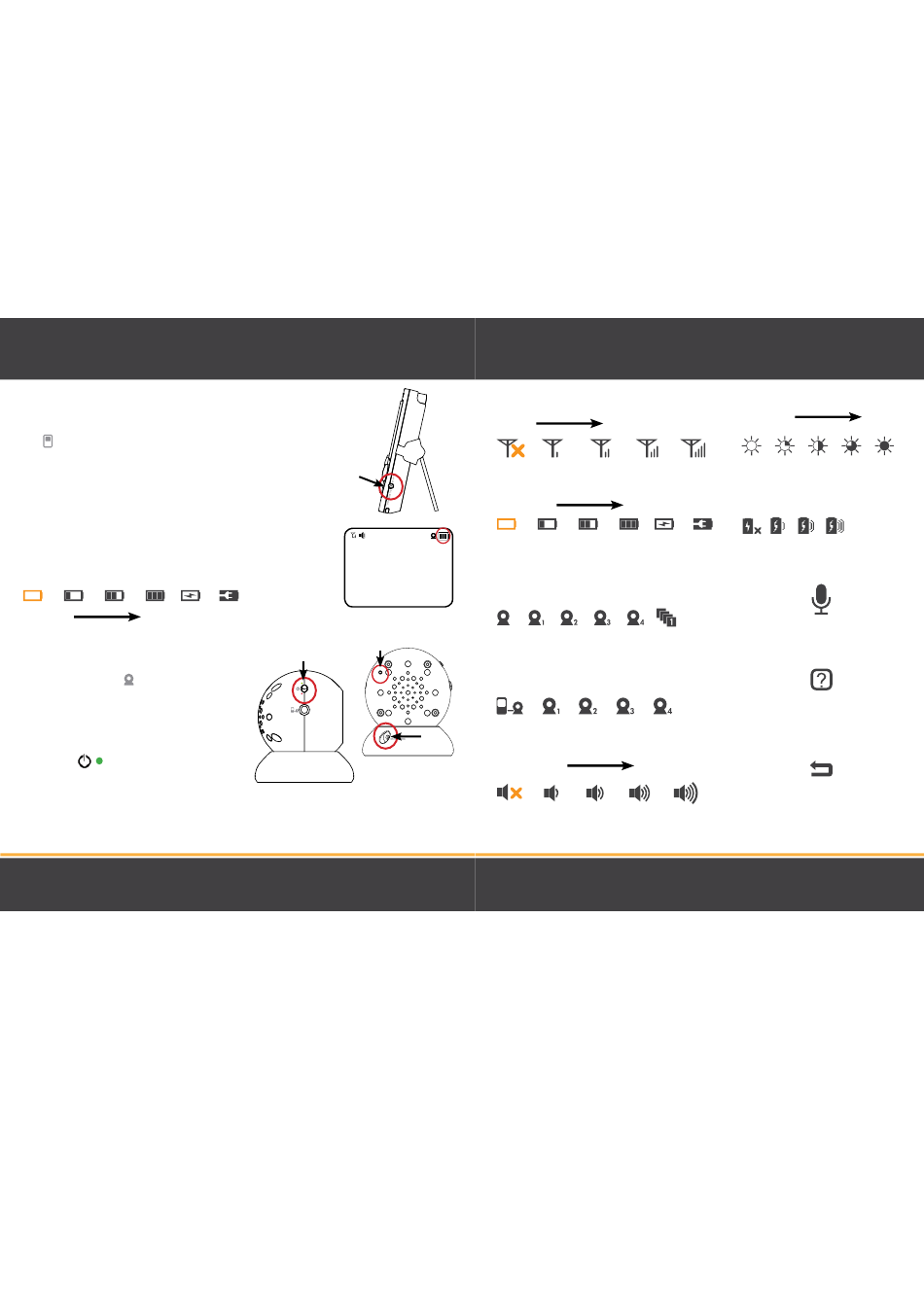

Connecting Power to the Monitor / Charging Battery

1. Connect the small end of power adapter marked MONITOR
into the DC input on the side of the monitor as shown in
the diagram.
2. Connect the other end of the adapter into an available wall
outlet. For safety reasons, ONLY use the adapters included
in the package.
3. Press the POWER / VIDEO ON-OFF BUTTON.
4. The icon in the top right corner of the main screen will show
you the battery power status.
EMPTY CHARGING

Connecting Power to the Camera

1. Connect the small end of the power adapter
marked CAMERA into the DC input on the
back of the camera base as shown in the
diagram. For safety reasons, ONLY use the
adapters included in the package.
2. On the side of the camera, slide the POWER
switch UP to the ON position. The
POWER LED will light up.
DC Input
FULL
Power LED
ON / OFF
Switch
10
SIGNAL STRENGTH
NO
SIGNAL
BATTERY STRENGTH
EMPTY
CAMERA
CAM CAM CAM
1 2 3
PAIRING
PAIRING CAM CAM
1 2
DC Input
VOLUME
OFF
BRIGHTNESS
STRONG DARK
SIGNAL
POWER SAVE MODE
CHARGING FULL
OFF LOW MED
CAM SEQ
4 MODE
CAM CAM
3 4
LOUD
11

SCREEN ICONS

B LIGHT
HIGH
2-Way Talk
SUPPORT
EXIT
