Product description
Pos.
Symbol/warning
4
TPR-valve
5
Hot water out
6
Optional: Solar station
7
Cold water in
8
Warning
Power supply to the
appliance should be
isolated before
removing this panel
Avertissement
Alimentation de
l'appareil doivent
être isolés avant
de retirer ce panneau
9
From collector
10
Solar sensor
11
To collector

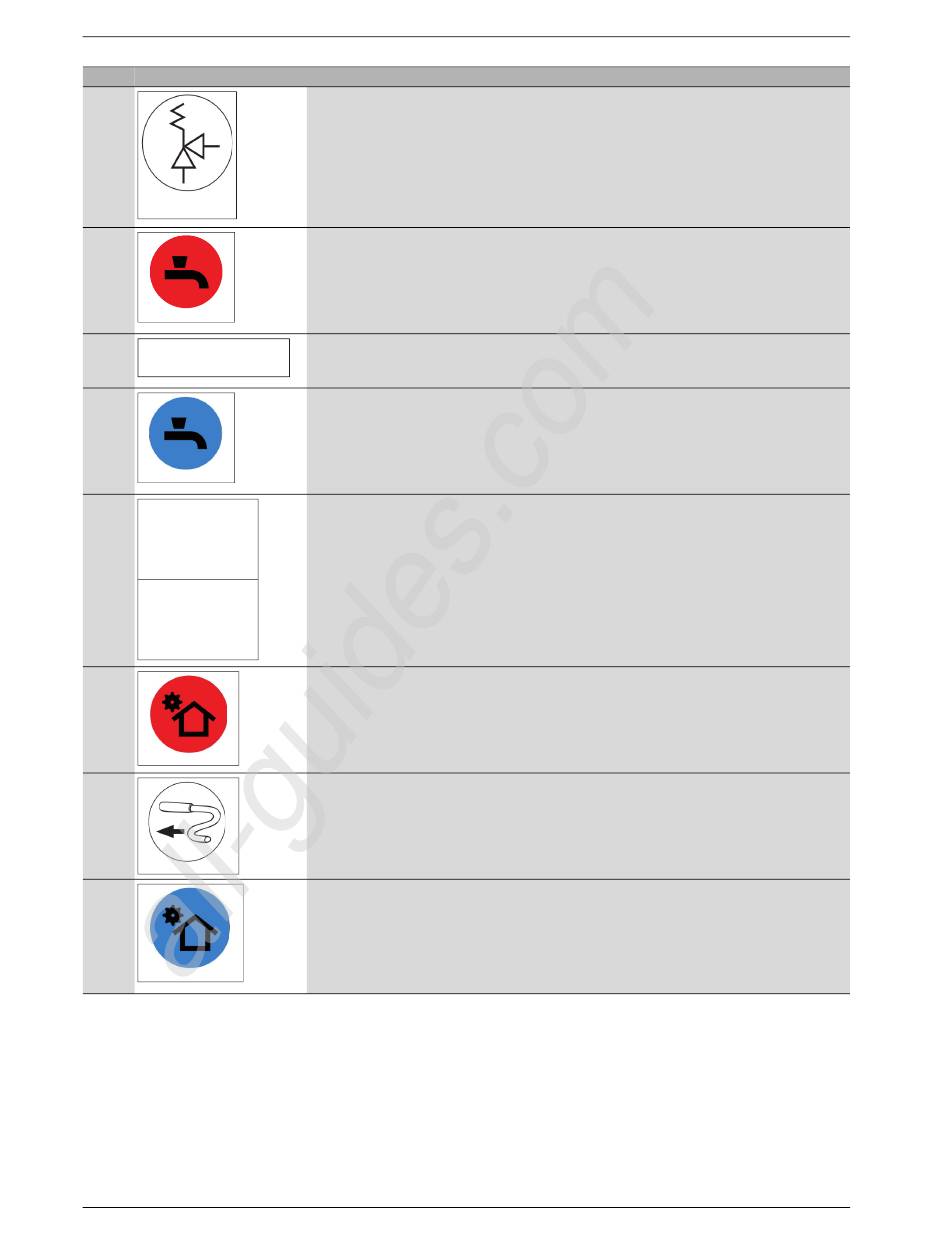

Table 3 Symbols and Warnings
6
All manuals and user guides at all-guides.com
Location on the storage tank
This symbol is located at the temperature and pressure relief valve.
This symbol is located at the upper left on the storage tank, next to the hot water outlet (AW).
This label is located at the position where the optional solar pump station is attached.
This symbol is located at the upper right on the storage tank, next to the cold water inlet.
This warning label is located on the panel covering the electric heating element and on the distribution
box.
This symbol is located at the supply from the solar thermal system.
This symbol is located at the position for the DHW temperature sensor of the solar controller.
This symbol is located at the return to the solar thermal system.
WST50 EL / WST80 EL / WST119 EL – 6 720 648 081 (2012/09)
