INSTALLATION INSTRUCTIONS
WARMING DRAWER INTEGRATED (WDI)
Custom Panel Installation
1. Remove drawer as per instructions. (See Use & Care Manual.)
2. Check the dimensions of the front template. (See fig. 08.)
3. Cut the custom panel to required dimensions, knowing that the panel must cover the front
template plus 1/8" on all four sides for a good presentation. The thickness of the custom panel
must be greater than 3/8" to allow for clearance of the tips of the screws holding the drawer
when the custom panel is mounted.
4. Center the paper template provided on the back of the custom panel to pre-drill 1/4" holes
(5/16" depth) to allow for clearance of the tips of the screws holding the drawer.

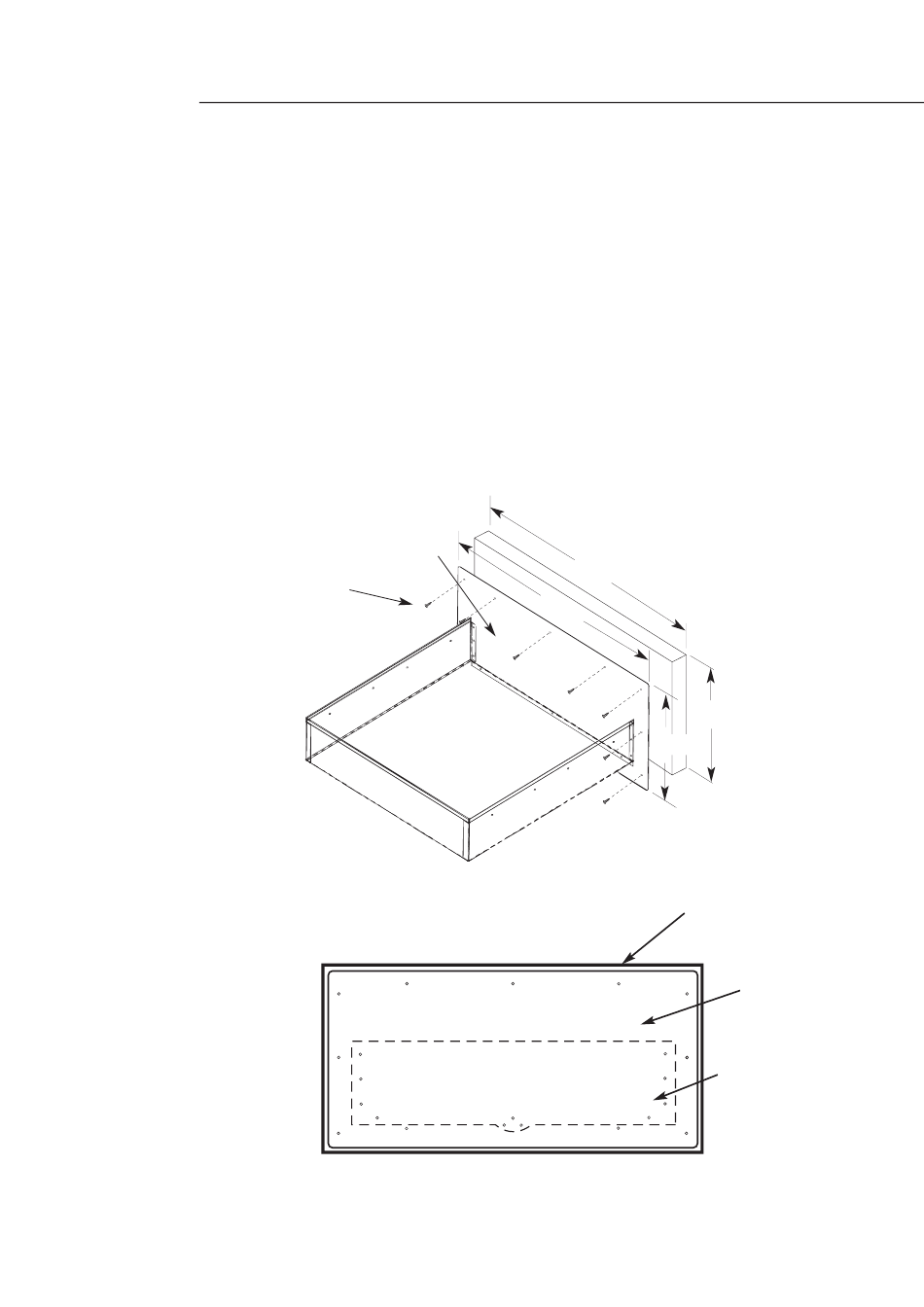

5. Fasten the custom panel with the supplied screws as shown in fig. 08 .
Front template
( WDI only)
Screws to hold
custom panel to
Warming Drawer
27"
26-3/4"
Fig. 08
Fig. 09
9
12-1/8"
11-7/8"
Custom Panel
Use template
provided
Holes to drill
