Phone Cradle Installation Instruction
RELEASE
BUTTON
Star Lock
Washer
Screw
Thumb
Screw
(TORX)

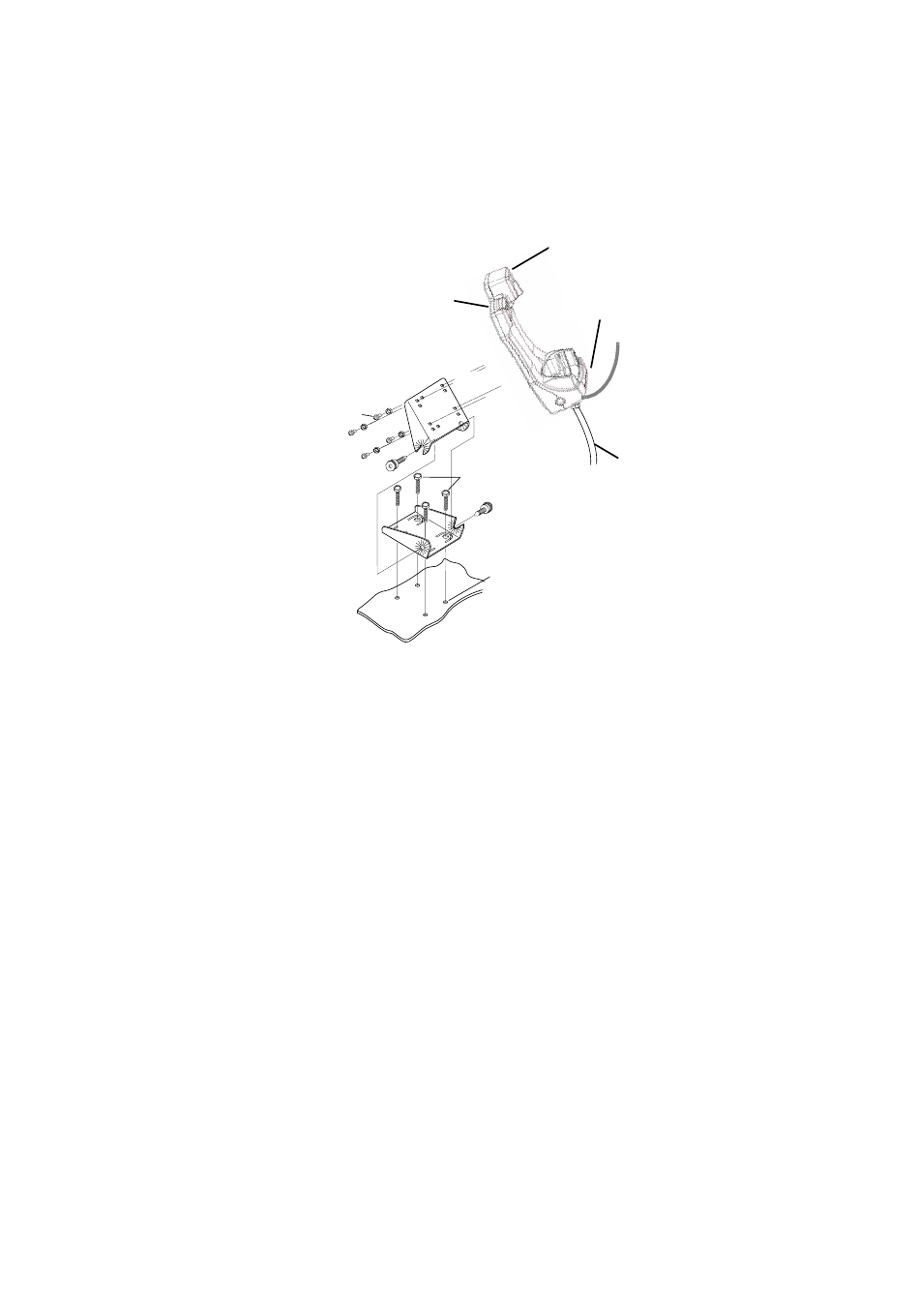

Figure 4. Cradle Unit Installation Detail
Note: Always use the supplied fastening hardware to rigidly secure the
Cradle. An unsecured Cradle could cause a unit to move and interfere
with the proper operation of the vehicle.
When installing the Cradle refer to the following procedure or modify
the procedure to suit your type of vehicle:
1. Using one of the scissor bracket halves as a template, position the
bracket half so that the pivot end of the bracket is toward the bottom
of the Cradle.
a. Using an awl or similar device, make four holes in the carpet at
marked locations. This will prevent damage to the carpet when
drilling.
b. Mark and drill holes, then securely mount the bracket half using
the four metal screws supplies.
c Secure the cradle to the mounting bracket and connect its cable
to the Junction Box.
8 CAR KIT OWNER'S MANUAL
PHONE
ANTENNA SLOT
PHONE
POCKET
Bracket
Half
Sheet Metal
Screw
Thumb
Screw
(TORX)
Bracket Half
Drill 1/8" Holes
Mounting Surface
CABLE TO
ANTENNA
CABLE TO
JUNCTION
BOX
