Contrast setting

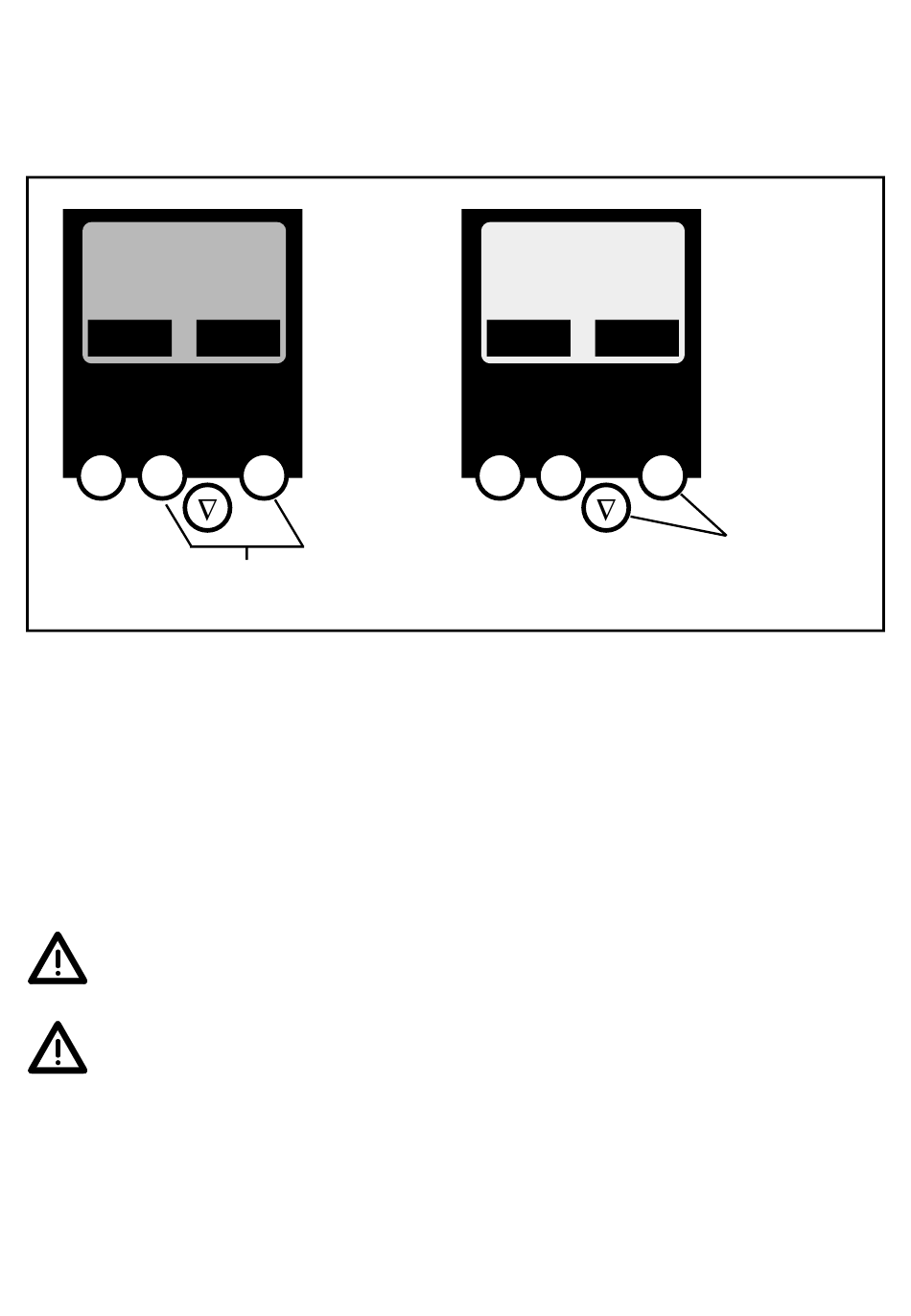

The contrast can be directly changed by simultaneously pressing the
right button and the ∆-button (too bright) or the ∇-button (too dark).
ifm electronic
Controller E
MENU
∆
increase contrast
Operation
To operate an AS-i system a special AS-i power supply is required (e.g.
AC1216). The AS-i power supply supplies the yellow AS-i cable with
energy and implements a data decoupling to the voltage regulator of
the power supply. Standard switched-mode power supplies would
consider the AS-i data signals as interference signals and suppress
them.
Disconnect the power supply before connecting the controller
The AS-i system is operated ungrounded. AS-i + and AS-i - are to
be symmetrical to the ground potential of the installation.
Ensure a low resistance connection of the symmetry point of the
AS-i power supply (terminal shield) to the ground of the installa-
tion.
