Attaching the Cable Cover

6
NOTICE: If you are installing the computer under a desktop or tabletop, do
not attach the cable cover until the computer is firmly attached to the
mounting plate (see Step 7, "Attaching the Stand to the Mounting Plate" on
page 19).
NOTICE: If you use the stand on your computer, attach the stand before
attaching the cable cover.
NOTICE: When attaching the cable cover, do not place the computer face-
down so that the surface comes in contact with a hard surface. Doing so may
press the power button and may scratch the face of the computer.
Attach all of the cables to the back of the computer.
1

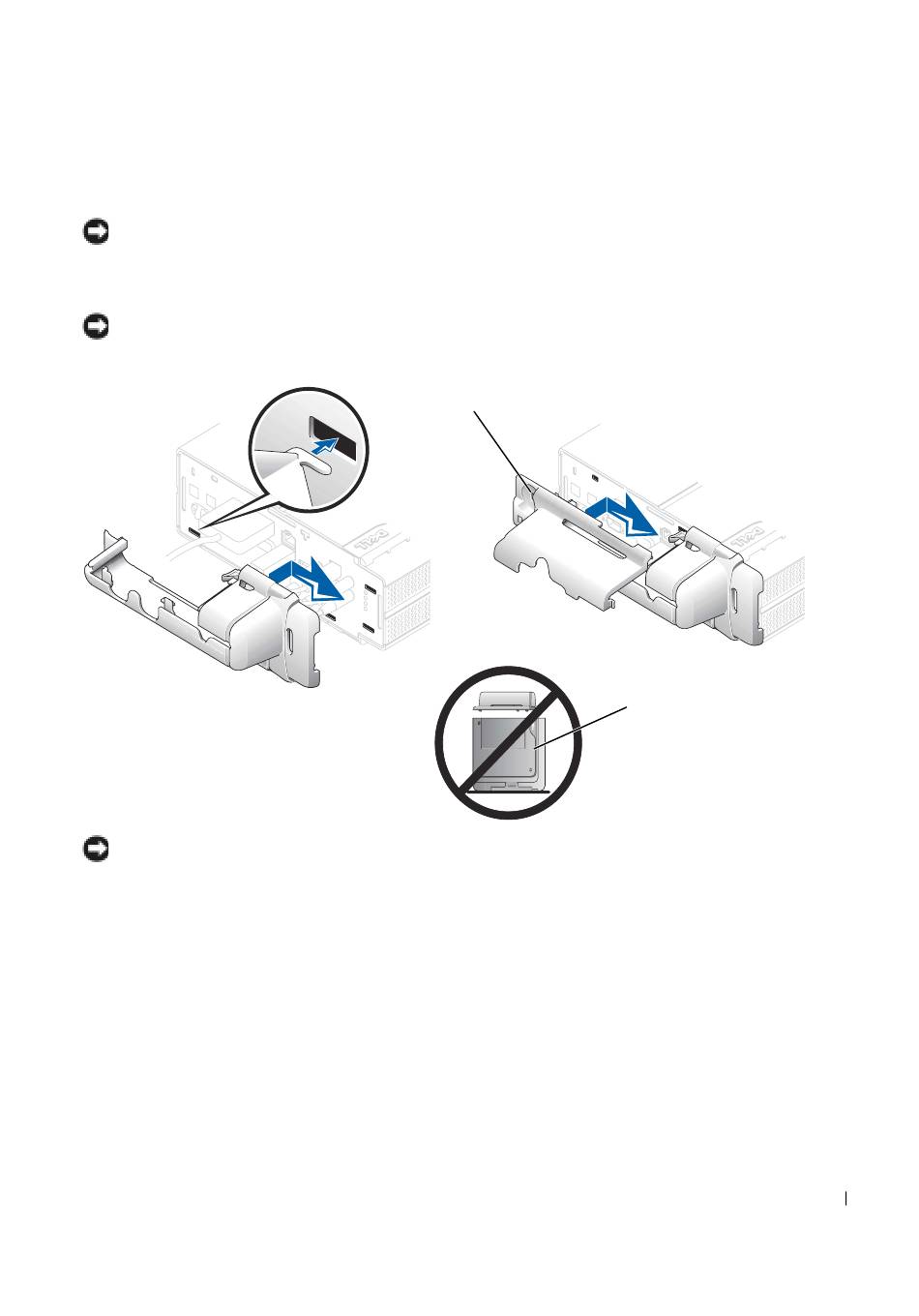

Hold the bottom piece of the cable cover and align the four tabs with
2
the four slots on the computer's back panel.
Insert the tabs into the slots and slide the piece toward the diagnostic
3
lights (see the illustration) until it is securely positioned.
Grasp the top piece of the cable cover and align the two tabs with the
4
two slots in the computer's back panel.
