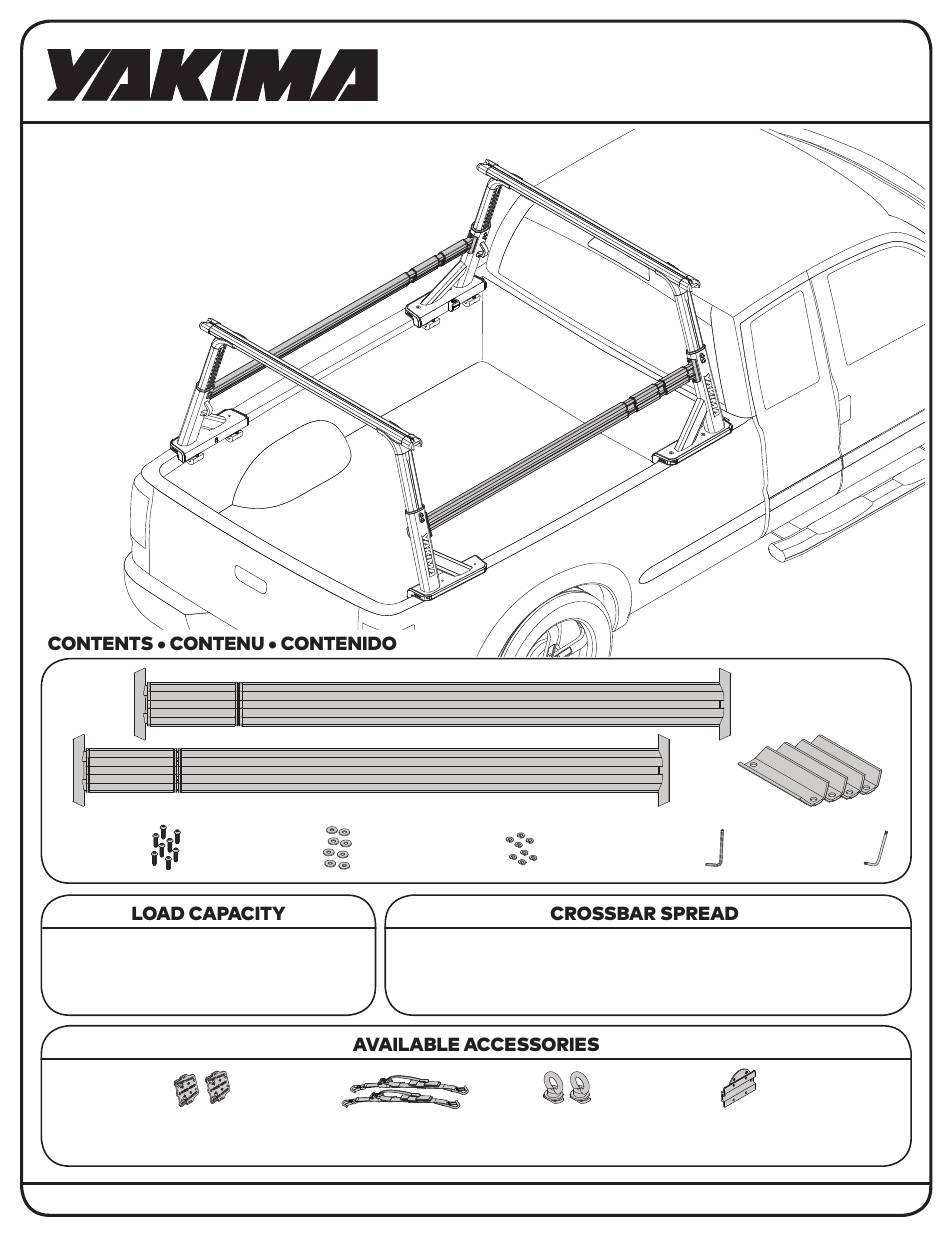

SideBar (2X)
M6 screws (8X)
vis M6 (x 8)
tornillo M6 (8X)
100 lbs (45.4kg) (evenly distributed)
T-slot is for use with Yakima
accessories only.
Recovery Track Mount
#8001164
*Rotopax mount sold separately *Le support Rotopax se vend à part. *El montaje Rotopax se vende por separado.
Pour le français, aller à la page 4.
Instruction #1035923B-Page 1 of 6
M6 flat washer (8X)
M6 lock washer (8X)
rondelle plate M6 (x 8)
rondelle de sécurité (x 8)
arandela plana M6 (8X)
arandela de cierre M6 (8X)
HD Hook Straps
#8001165
4mm hex wrench (1X)
clé hexagonale 4 mm (x 1)
llave hexagonal de 4 mm (1X)
SideBar, Short Bed - Adjustable from 36-64" (91.5-162.5 cm)*
SideBar, Long Bed - Adjustable from 60-84" (152.4-213.4 cm) *
*minimum requires removal of t-slot sleeves
Eye Bolts
#8001162
Para español ir a la página 4.
SideBar
OutPost HD Plates (4x)
plaque pour OutPost HD (x 4)
placa para OutPost HD (4x)
T15 Torx wrench (1X)
clé Torx T15 (x 1)
llave Torx T15 (1X)
Rotopax Mounting Kit*
#8001167
