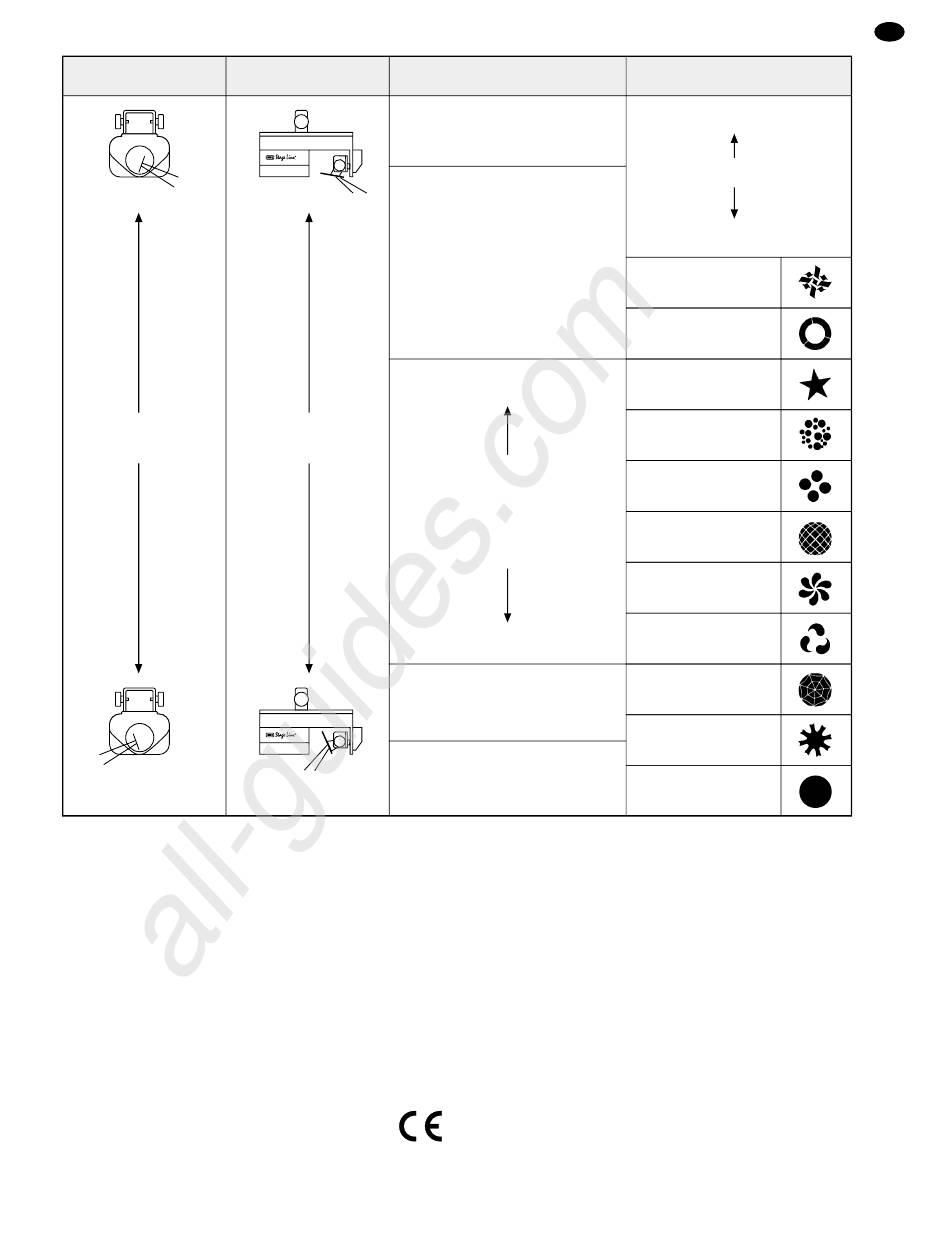

8 Configuration of the DMX Channels
Channel 1
Mirror panning (Pan)
255
167
steps
000
9 Specifications
Power supply: . . . . . . . 230 V~/50 Hz
Power consumption: . . 120 VA
Lamp: . . . . . . . . . . . . . 1 x reflector halogen lamp
12 V/100 W, type MR 16 with
base GZ 6,35
(not supplied with the unit)
Ambient temperature: . 0 – 40 °C
Dimensions: . . . . . . . . 385 x 195 x 122 mm
Weight: . . . . . . . . . . . . 3.8 kg
Subject to technical modification.
All rights reserved by MONACOR
be reproduced in any form or by any means for any commercial use.
All manuals and user guides at all-guides.com
Channel 2
Mirror tilting (Tilt)
255
40
steps
(at DMX value 000 – 011
change between 2 gobos
(at DMX value 012 – 127
000
® INTERNATIONAL GmbH & Co. KG. No part of this instruction manual may
Channel 3
Shutter
lamp on, no effect
248–255
wobbling effect
132 – 247
fast
131
stroboscopic effect
for channel 4)
or
for channel 4)
slow
016
lamp on, no effect
008–015
lamp off
000–007
Channel 4
Patterns (gobos)
fast
255
continuous change of the gobos
slow
128
gobo 10,
white
117–127
gobo 9,
blue, magenta
105–116
gobo 8,
red
094–104
gobo 7,
magenta
082–093
gobo 6,
red, blue, yellow, green
070–081
gobo 5,
pink
059–069
gobo 4,
green
047–058
gobo 3,
red, green, blue
035–046
gobo 2,
blue
024–034
gobo 1,
yellow
012–023
gobo open,
white
000–011
GB
