4288820000_IS_PRO_Bridge.qxd:428882_IS_PRO_Bridge.qxd
3.
Configuration
3.1 Equipment
A screwdriver with a width of 2.5 mm is required to adjust the unit and to
connect the wires to the terminals.

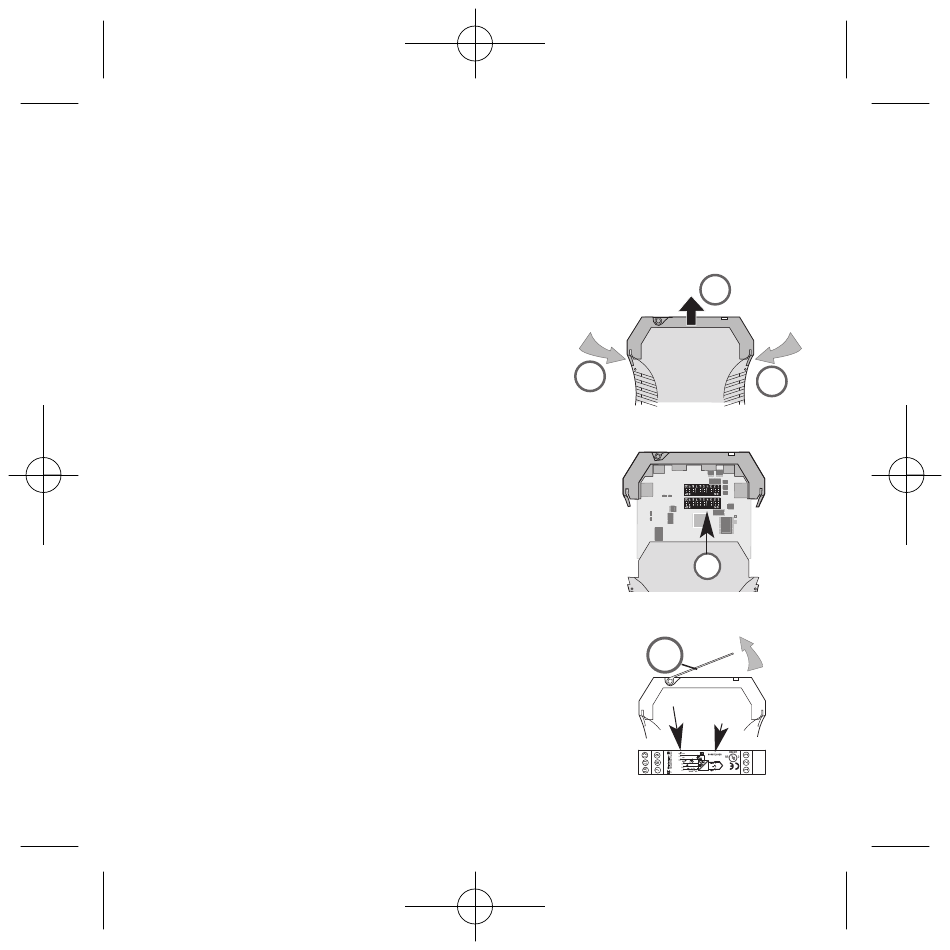

3.2 Opening the unit
Disconnect the plugs. Disengage the top part of
the housing by carefully pressing the latches on
both sides (1). Pull out the top part of the hou-
sing and the electronics section until they lock
(2).
3.3 Settings
Set input and output ranges, minimum input values
and measuring span via the DIP switches SW1
according to the following table.
Warning! A screwdriver, correctly insulated
against the input voltage (3), must be
used when calibrating the supply volta-
ge to the bridge via the potentiometers
at the front of the module.
2
1
SW1
3
Offset Excitation
Voltage
07.07
1
11
