English

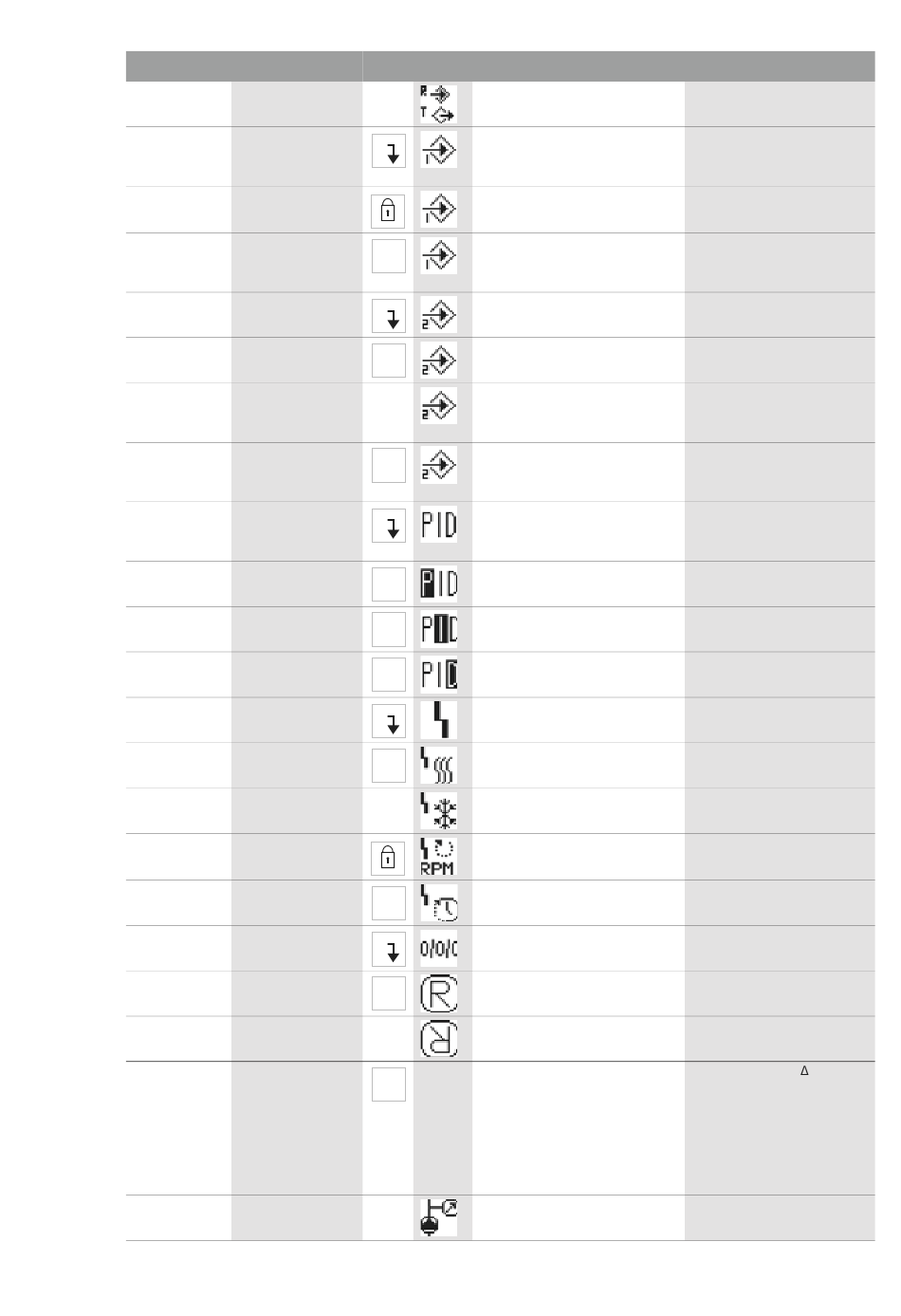

No. Designation
5.3.0.0 IN1 (sensor input)
IN1 (sensor value
5.3.1.0
range)
5.3.2.0 IN1 (value range)
5.4.0.0 IN2
5.4.1.0 IN2 active/inactive
5.4.2.0 IN2 (value range)
5.5.0.0 PID parameters
5.5.1.0 P parameter
5.5.2.0 I parameter
5.5.3.0 D parameter
5.6.0.0 Error
5.6.1.0 HV/AC
5.6.2.0 Emergency
operation speed
5.6.3.0 Auto reset time
5.7.0.0 Other settings
5.7.1.0 Display orientation
5.7.2.0 Pressure value
correction
78
Type Symbol Values/explanations
BMS remote operation
Settings for sensor input 1
Display of sensor value range 1
Setting of the value range
±
Possible values: 0...10 V/2...10 V/
0...20 mA/4...20 mA
Setting for external setpoint
input 2
ON
±
External setpoint input 2 active
OFF
External setpoint input 2
inactive
Setting of the value range
±
Possible values: 0...10 V/
2...10 V/0...20 mA/4...20 mA
Settings for PID control
Setting of the proportional term
±
of the control
Setting of the integral term of
±
the control
Setting of the derivative term of
±
the control
Settings for behaviour in case of
error
HV "heating" mode
±
AC "cooling/air-conditioning"
mode
Display of emergency operation
speed
Time until automatic acknowl-
±
edgement of an error
Display orientation
±
Display orientation
When pressure value correction
±
is enabled, the differential pres-
sure deviation measured by the
differential pressure sensor that
is factory-fitted on the pump
flange is taken into account and
corrected.
Pressure value correction Off
Display conditions
Not displayed in the manual
control mode (incl. all sub-
menus)
Not displayed with PID
control
Not displayed when
IN2 = inactive
Only displayed when PID
control is active (incl. all sub-
menus)
Only displayed in p-c mode
