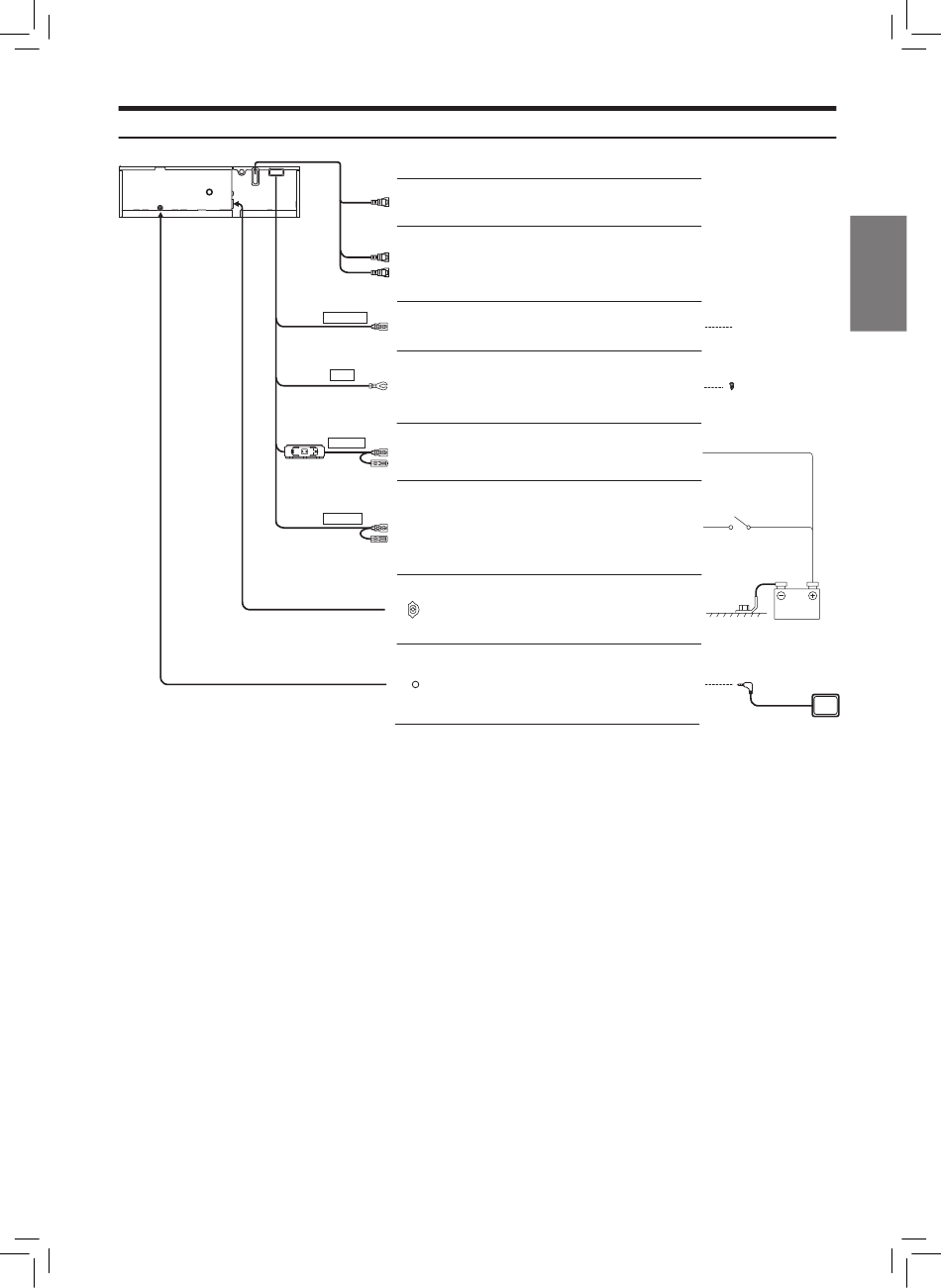

Connections
• Connect properly.
Never connect to parts other than the ones indicated in these operating instructions.
• Also refer to the operating instructions of the other products in the system.
• A remote control eye is needed when a monitor made by another company is connected.
DVE-5207.indb 29
Cable Color
Yellow
White (L)
Red (R)
White/
White/Brown REMOTE IN
Brown
Black GND
Black
Fuse
(7.5A)
BATTERY
Yellow
Yellow
Red IGNITION
Red
Cable Specifications
•
Video Output Connector
This connector is used in combination with the video inputs
of another video product (AV head unit or TV monitor).
•
Audio Output Connectors
These connectors are used in combination with a head
unit or TV monitor with audio input connectors, if the digital
output terminal is not connected.
•
Remote Control Input Lead
This lead is used in combination with an ALPINE monitor
with a remote control output lead.
•
Ground Lead
Connect this lead to a good chassis ground on the vehicle.
Make sure the connection is made to bare metal and is
securely fastened using the sheet metal screw provided.
•
Battery Lead
Connect this lead to the positive (+) post of the vehicleís battery.
•
Switched Power Lead (Ignition)
Connect this lead to an open terminal on the vehicleís fuse box
or another unused power source which provides (+) 12V only
when the ignition is turned on or in the accessory position.
•
Digital Output Terminal (Optical)
This terminal is used to connect DVE-5207 to ALPINE
digital audio processor (PXA-H701 etc.).
These products include a fiber optic cable that will plug
directly into the digital output terminal of the DVE-5207.
•
Remote Control Eye Jack
Connect the remote control eye to this jack. Not used when
using a monitor with a built-in remote control sensor unit.
A remote control eye is needed when a monitor made by
other company is connected.
To remote control
output lead
Connect to a metal
part of chassis body
with a screw
Ignition Key
Remote Control Eye
(Sold separately
KRE-500E)
29
-EN
