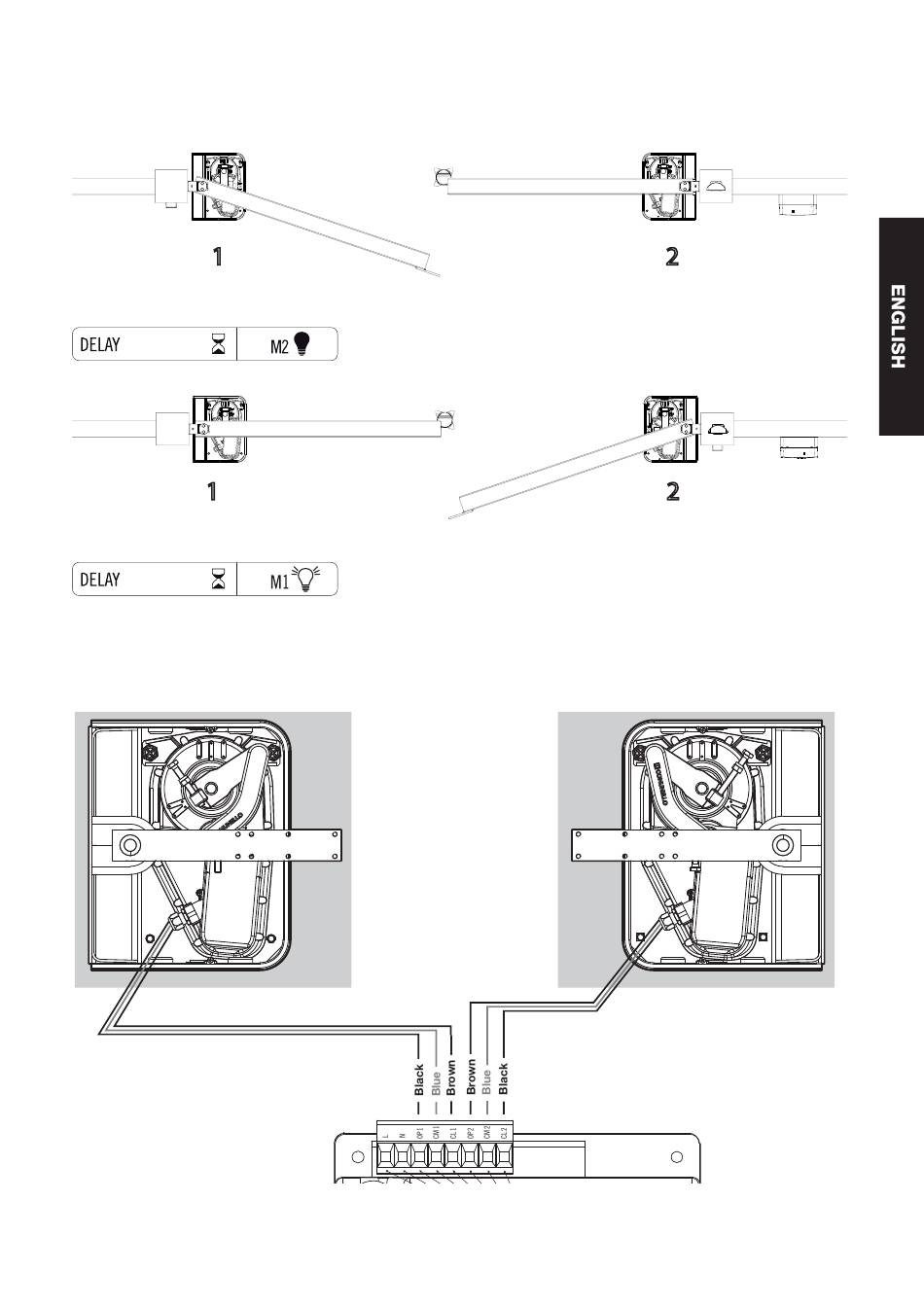

4.4 - EAGLE- connection diagram of the motors
Configuration with delayed opening of the MOTOR no. 2
1
Main menu - LED L1 DELAY, LED OFF = MOTOR DELAY OF MOTOR NO.2
Configuration with delayed opening of the MOTOR no. 1
1
Main menu - LED L1 DELAY, LED ON = MOTOR DELAY OF MOTOR NO.1
Wire connection of motors to control unit (capacitor to be wired between the two phases)
Configuration with MASTER motor on the LEFT and SLAVE motor on the RIGHT
OPEN
with OP1
COMMON
with CM1
CLOSE
with CL1
OPEN
COMMON
CLOSE
CN1
F1
2
2
with OP2
with CM2
with CL2
COMUNELLO ®Copyright 2021 - All rights reserved
27
