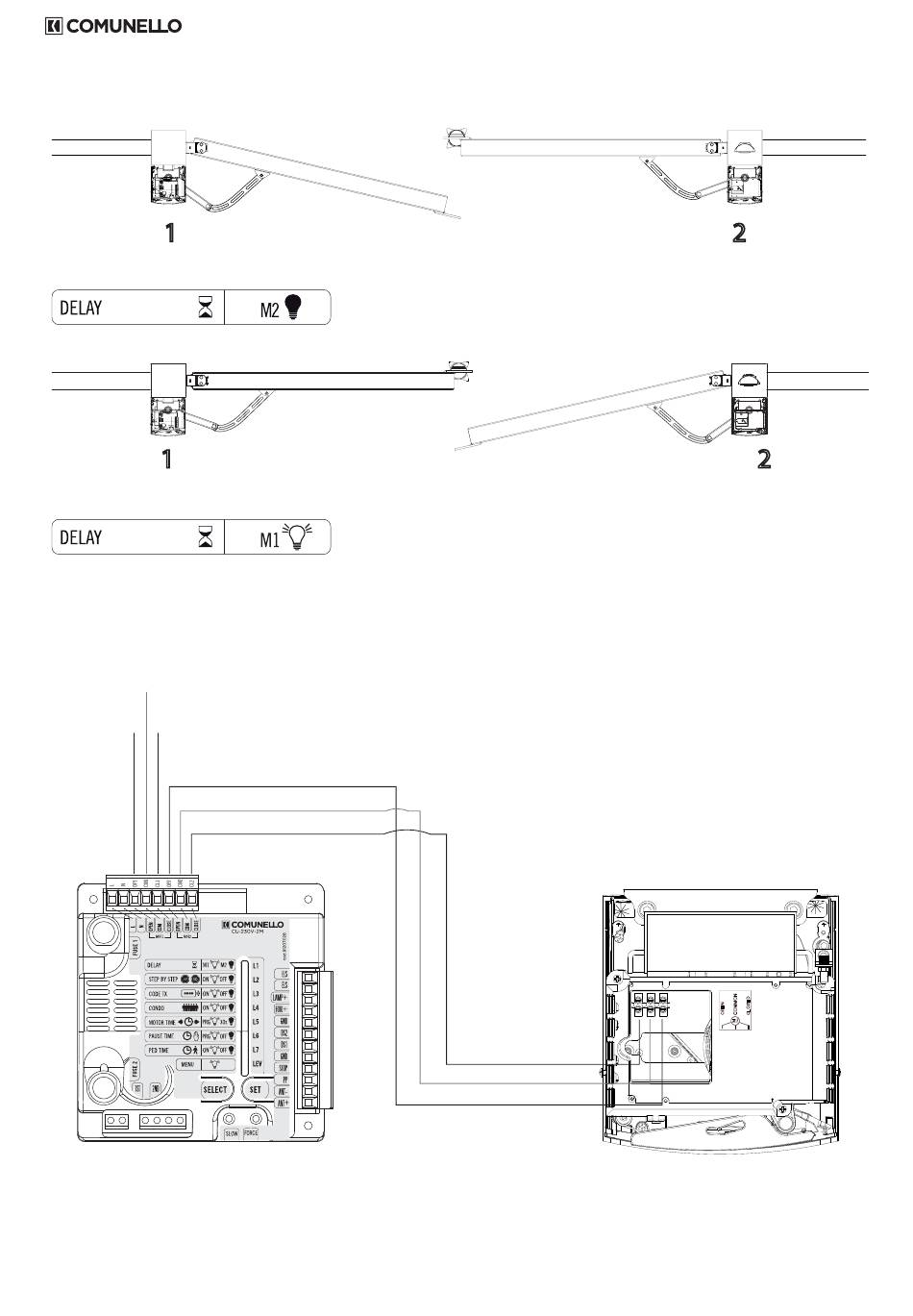

4.3 - CONDOR - connection diagram of the motors
Configuration with delayed opening of MOTOR NO. 2
1
Main menu - LED L1 DELAY, LED OFF = DELAY OF MOTOR NO. 2
Configuration with delayed opening of MOTOR NO. 1
1
Main menu - LED L1 DELAY, LED ON = DELAY OF MOTOR NO. 1
Motor line connection to the control unit
Configuration with the MASTER motor at the LEFT and the SLAVE motor at the RIGHT
MOTOR 1 with Control unit
OPEN / APRI
COMMON
CLOSED / CHIUDI
Blue
Black
Brown
CN1
F1
F2
SEL
CN3
CN4
26
COMUNELLO ®Copyright 2021 - All rights reserved
with OP1
with CM1
with CL1
CN2
ELS
ELS
LAMP
FOT+
GND
DS2
DS1
GND
STOP
PP
SET
ANT-
ANT+
MOTOR 2 without Control unit
OPEN / APRI
COMMON
CLOSED / CHIUDI
2
2
without OP2
without CM2
without CL2
