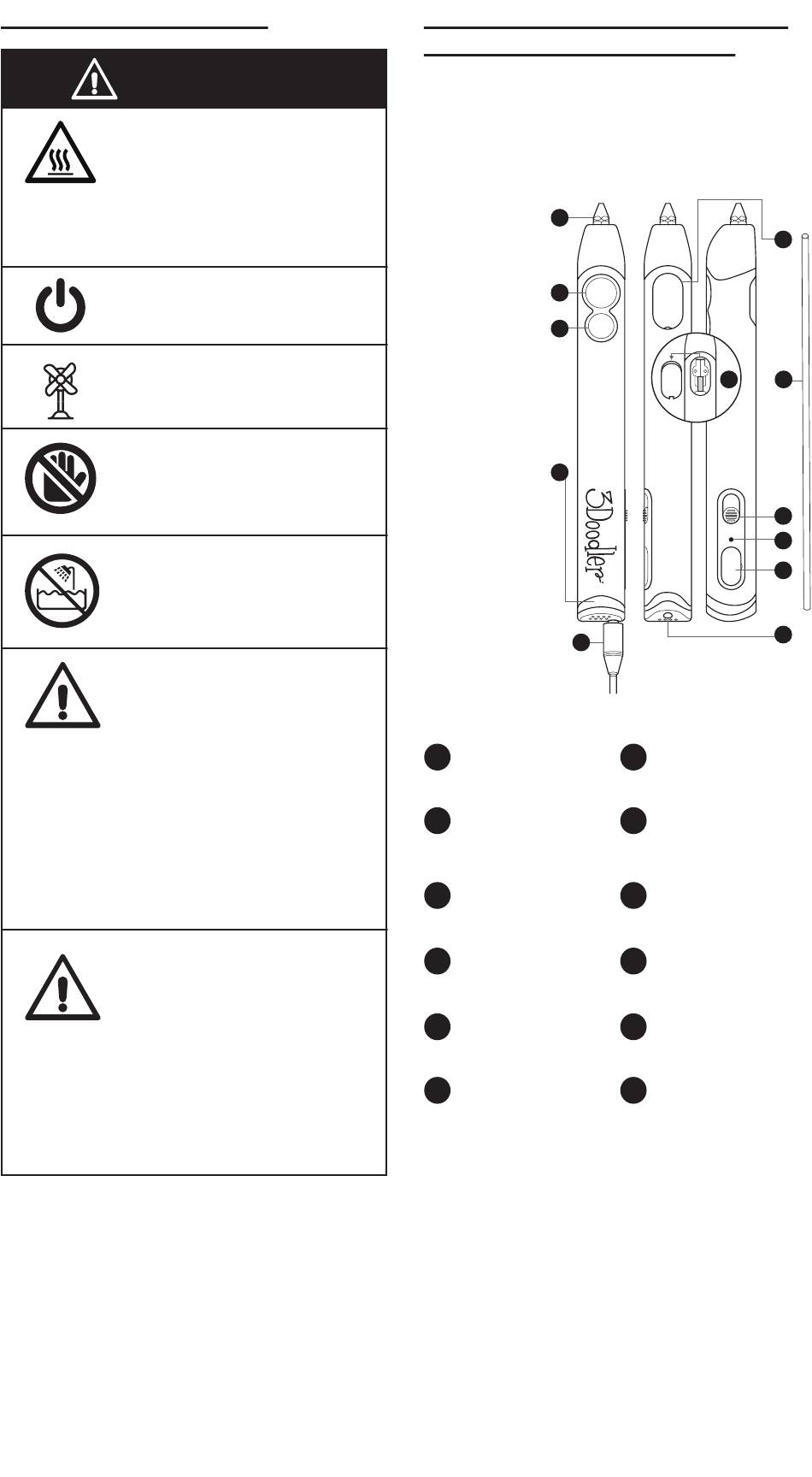

SECTION 1: WARNINGS
W A R N I N G S
- The Nozzle of the 3Doodler Create+
can become hot. DO NOT touch the
Nozzle, or you may be burned!
- DO NOT allow the Nozzle near or in
contact with flammable materials.
- Inform others in the area that
the Pen is hot and should not be
touched.
Unplug and set the Control Switch
to OFF when not in use or before
storing.
Allow the Nozzle to cool completely
before storing.
The Unblocking Tool can become
hot. DO NOT touch the metal part
of the Unblocking Tool after using
it to clean your 3Doodler Create+,
or you may burn yourself!
DO NOT use the 3Doodler Create+
near bathtubs, showers, basins
or other vessels containing water.
This could result in death due to
electric shock.
The 3Doodler Create+ should only be
used with ABS or PLA, FLEXY plastic
filament approved by us. Misuse
of your 3Doodler Create+, setting
your pen to the wrong heating
temperature, and/or use of non-
approved plastics or other materials
may result in damage to your pen
or injury to you, and will void your
warranty. Injuries to the user may
include, but are not limited to, harm
sustained from inhaling substances
that are not suitable for heating; or
burns from flammable materials
used in the 3Doodler Create+.
WARNING: This 3D Printing Device -
when used with a styrene filament
(ABS / HIPS / or PC-ABS) - can expose
you and others in the same room to
styrene, which is a chemical known
to the State of California to cause
cancer. For more information, go to
www.P65Warnings.ca.gov.
ALWAYS OPERATE YOUR 3D
PRINTING DEVICE IN A WELL-
VENTILATED AREA.
ADULT USE ONLY. KEEP OUT OF REACH OF CHILDREN.
Disposal of this product
At the end of your 3Doodler Create+'s life, please do
not dispose of it in your general household waste. In
order to prevent possible harm to the environment
or human health from uncontrolled waste disposal,
please dispose of your 3Doodler Create+ separately
in accordance with local laws and regulations. For
more information on the separate collection systems
for waste electrical and electronic equipment, please
contact your local municipal authority. You can also
contact the retailer from which you purchased your
3Doodler Create+, who may have a recycling service, or
be part of a specific recycling scheme that you can use.
1
SECTION 2: GETTING STARTED
WITH 3DOODLER CREATE+
We created this User Manual as a step-by-step guide to
get you comfortable with your 3Doodler Create+ and
its features. Once you are familiar with these steps, you
will be able to Doodle with confidence. Skipping steps
may result in a less enjoyable time with your
3Doodler Create+.
1
SPEED BUTTON
2
LEGEND:
• Click once to start
3
• Click once to stop
• Double click to reverse
4
LIGHT LEGEND:
Solid RED:
Heating up
(Please wait)
BLUE: ABS/FLEXY
GREEN: PLA
Flashing Light:
Reversing Plastic
Nozzle
1
Hot end where Plastic is
extruded for Doodling
2
FAST Speed Button
3
SLOW Speed Button
Light
4
Tells you when your
3Doodler Create+ is ready
for Doodling
5
Power Adapter
Maintenance Cover
6
Allows you to look inside your
Pen to see what's going on
How it Works:
The 3Doodler Create+ melts Plastic and uses a motor and gears
(Drive Gear) to push it through the Pen's hot end (Nozzle) in a
thin line. This process is called extruding or extrusion, and we
will refer to it throughout this User Manual. Once extruded, Plastic
cools and hardens instantly, allowing you to draw on surfaces and
in the air. This User Manual will show you how!
FAST
SLOW
7
5
Drive Gear
7
This pushes the Plastic
through the Pen
Control Switch
8
For turning the 3Doodler
Create+ ON and OFF, and
selecting ABS / FLX or PLA
extrusion temperature
Plastic Loading Port
9
Hole for inserting Plastic
in the back of the
3Doodler Create+
10
Plastic
11
Temperature Adjuster
(See the3doodler.com/
temperature)
12
Control Port
2
6
10
8
11
12
9
