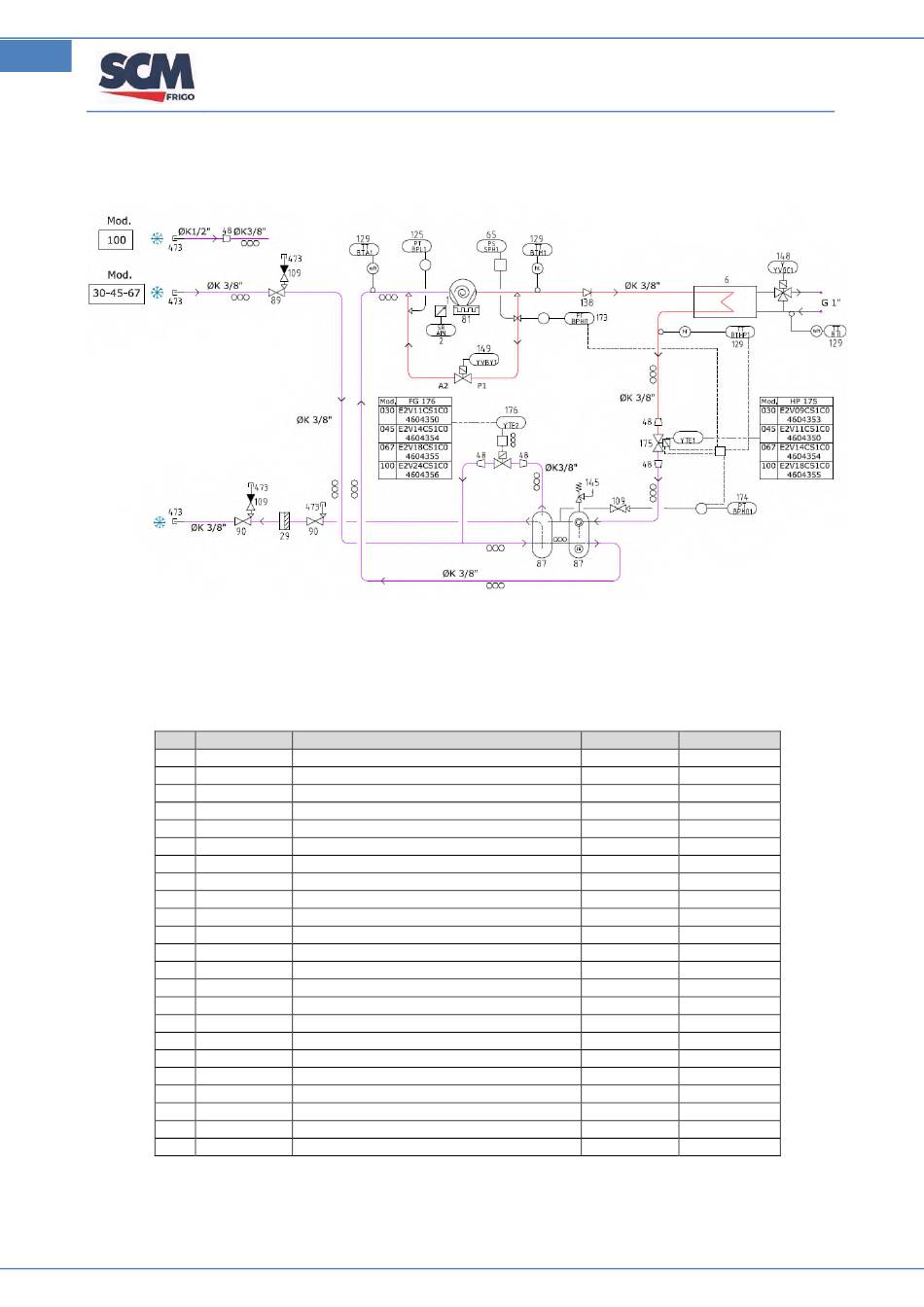

Refrigerant drawing (P&I)
Figure 2: P&I of a UMT/WG T with 2x2,4 l liquid receiver. Refer to the P&I included in the unit to work with the most update
version
Pos.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Pag. 36-EN
Ref.
Description
1
Rotary Compressor
2
Inverter
6
Gas Cooler PHE
148
3 Way Valve
29
Refrigerant filter Dryer
65
HP safety switch (PZH)
87
Liquid receivers (parallel)
89
Suction shut-off valve
90
Liquid shut-off valve
109
Service valve
125 (BPL1)
Low pressure transducer
129 (BTA1)
Comp. Suction temperature probe
129 (BTM1)
Comp. Discharge temperature probe
129 (BTEI)
Water In temperature probe
129 (BTHP)
GC outlet temperature probe
138
Check valve
145
Pressure Relief Valve
149 (YVBY)
By-pass solenoid valve
173 (BPHI1)
Discharge pressure transducer
174 (BPHO1)
Receiver pressure transducer
175 (YVTE)
High Pressure Valve (HPV)
176 (YVBY1)
Receiver Pressure Valve (RPRV)
OEM Manual – CUBO
Note 1
Note 2
UMT/WG T MT Rev3.0 – 08/10/2021
